Driver's Window Motor Test

Remove door panel. Unplug connector from motor. Using fused jumper wire, connect battery voltage to terminal No. 1. Connect terminal No. 2 to ground. See Fig 1 . Motor should run in "down" direction. Transpose jumper wires. Motor should run in "up" direction. Replace motor if it does not run smoothly in both directions.

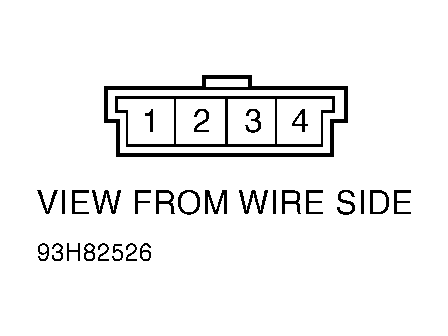

Fig 1: Identifying Driver's Window Motor Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
