Connector Identification

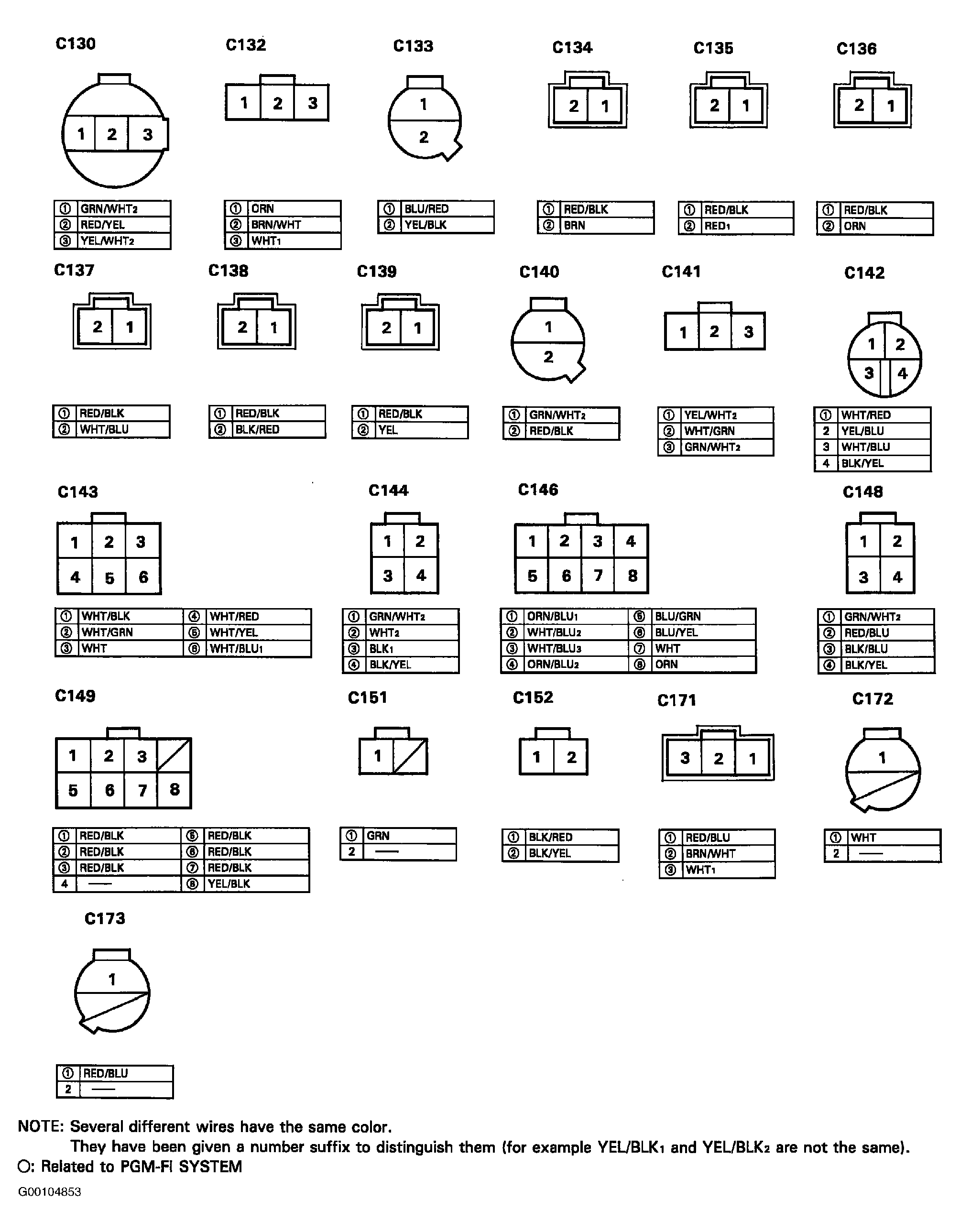

Fig 1: Identifying Driver Side Of Engine Compartment Connector Terminals & Wire Color

Courtesy of AMERICAN HONDA MOTOR CO., INC.

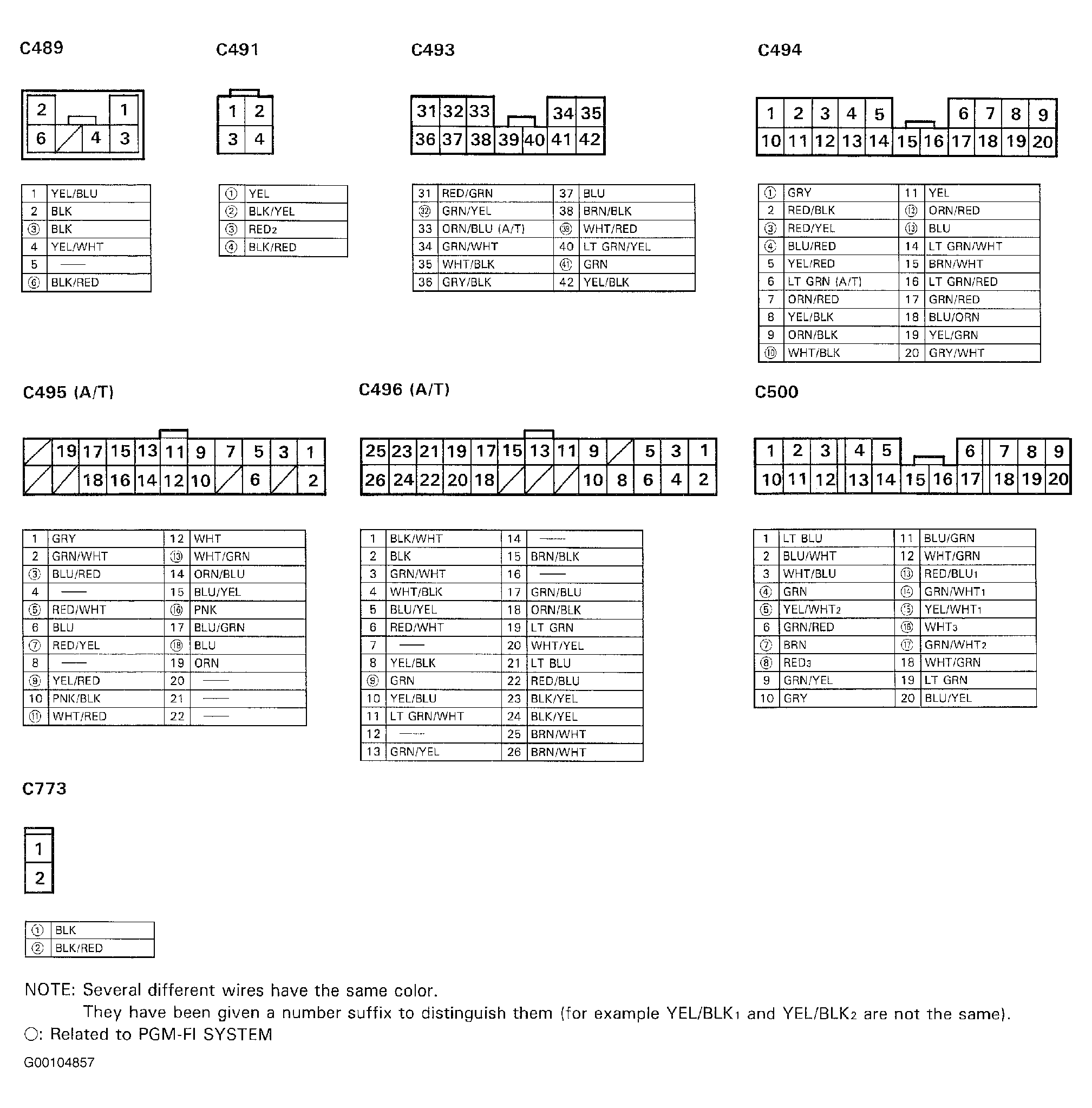

Fig 2: Identifying Passenger Side Of Engine Compartment Connector Terminals & Wire Color

Courtesy of AMERICAN HONDA MOTOR CO., INC.

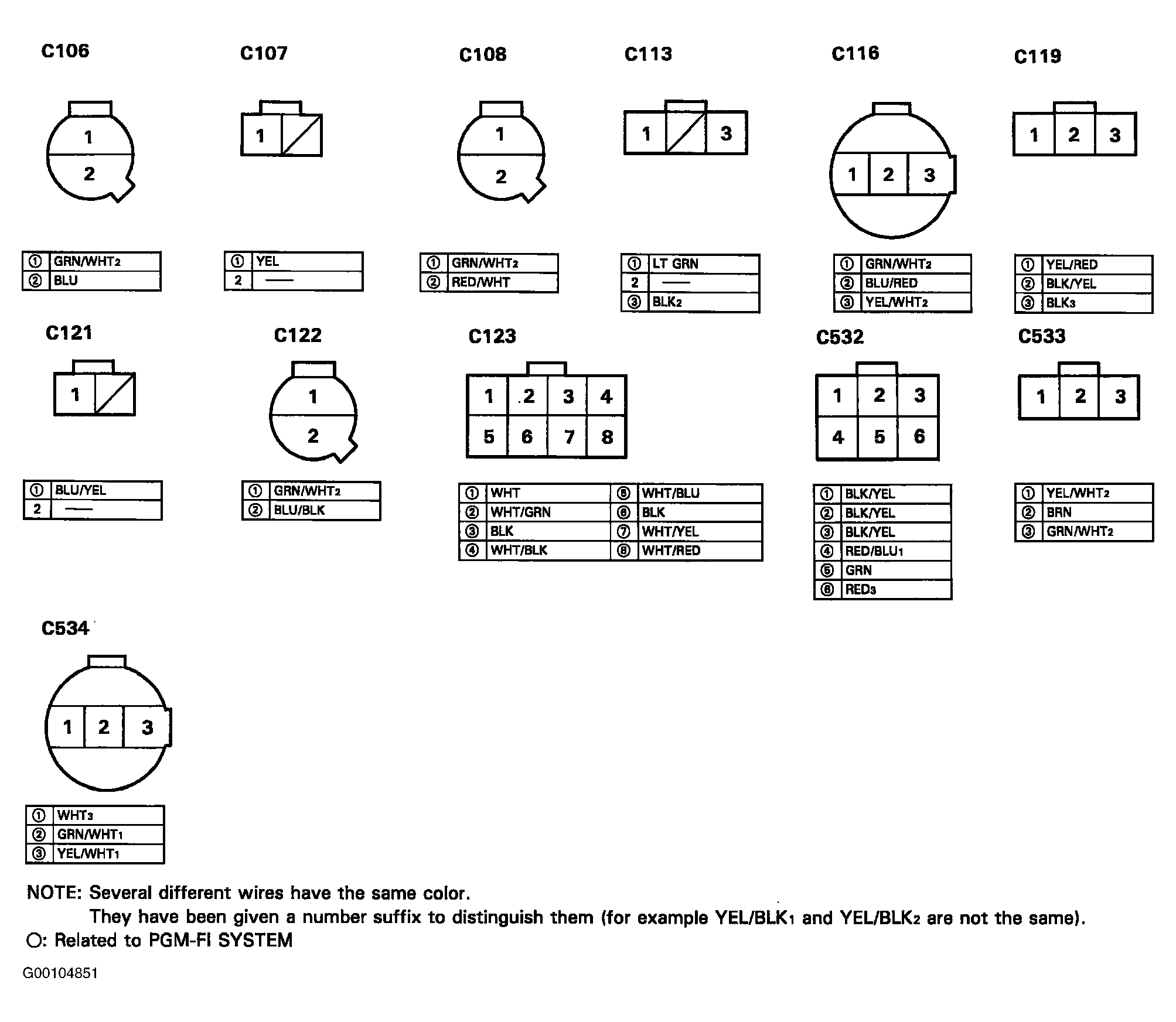

Fig 3: Identifying Connector Terminals & Wire Colors Of Connectors Behind Seatback Panels (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

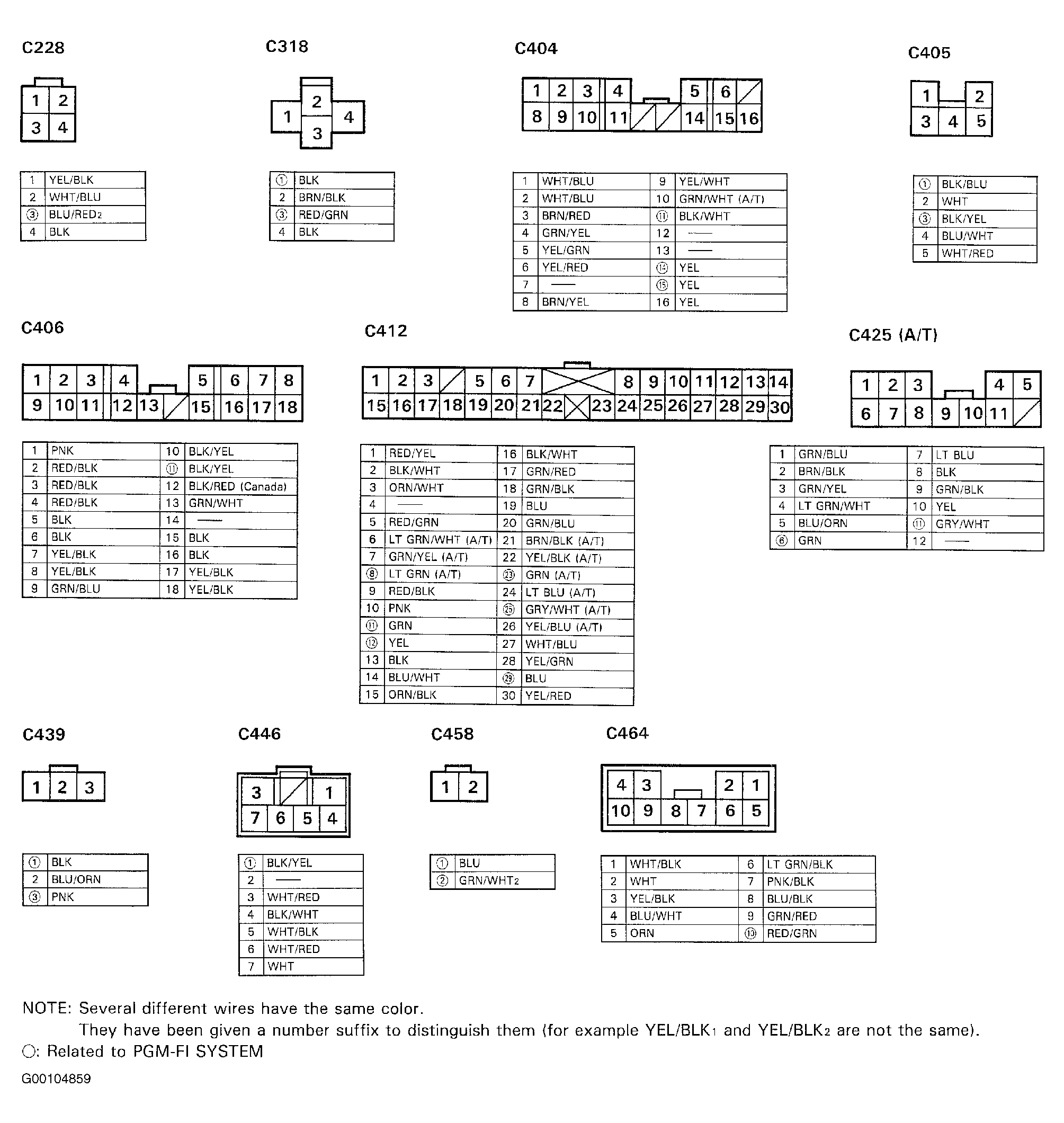

Fig 4: Identifying Connector Terminals & Wire Colors Of Connectors Behind Seatback Panels (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

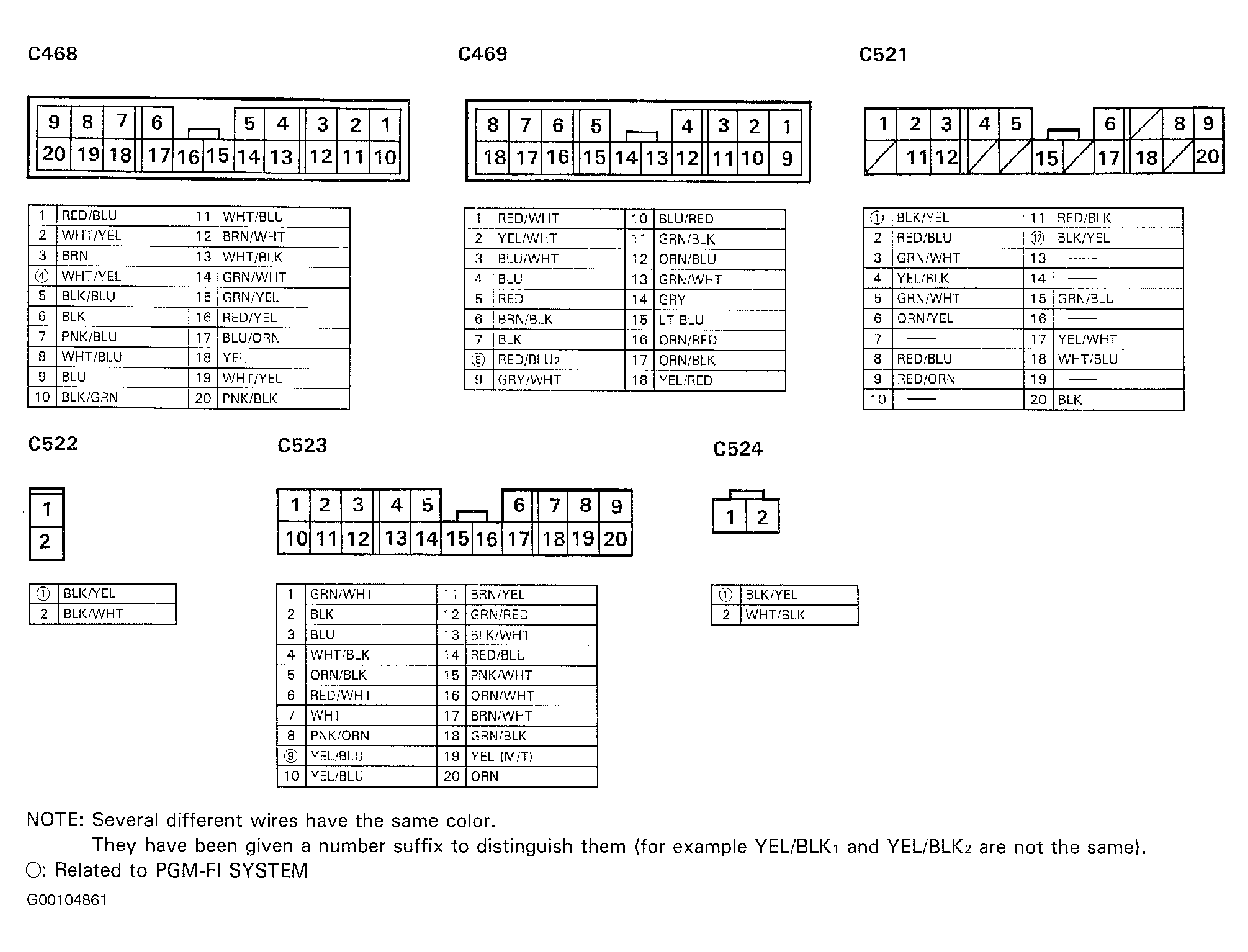

Fig 5: Identifying Front Compartment & Under Dash Connector Terminals & Wire Color (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

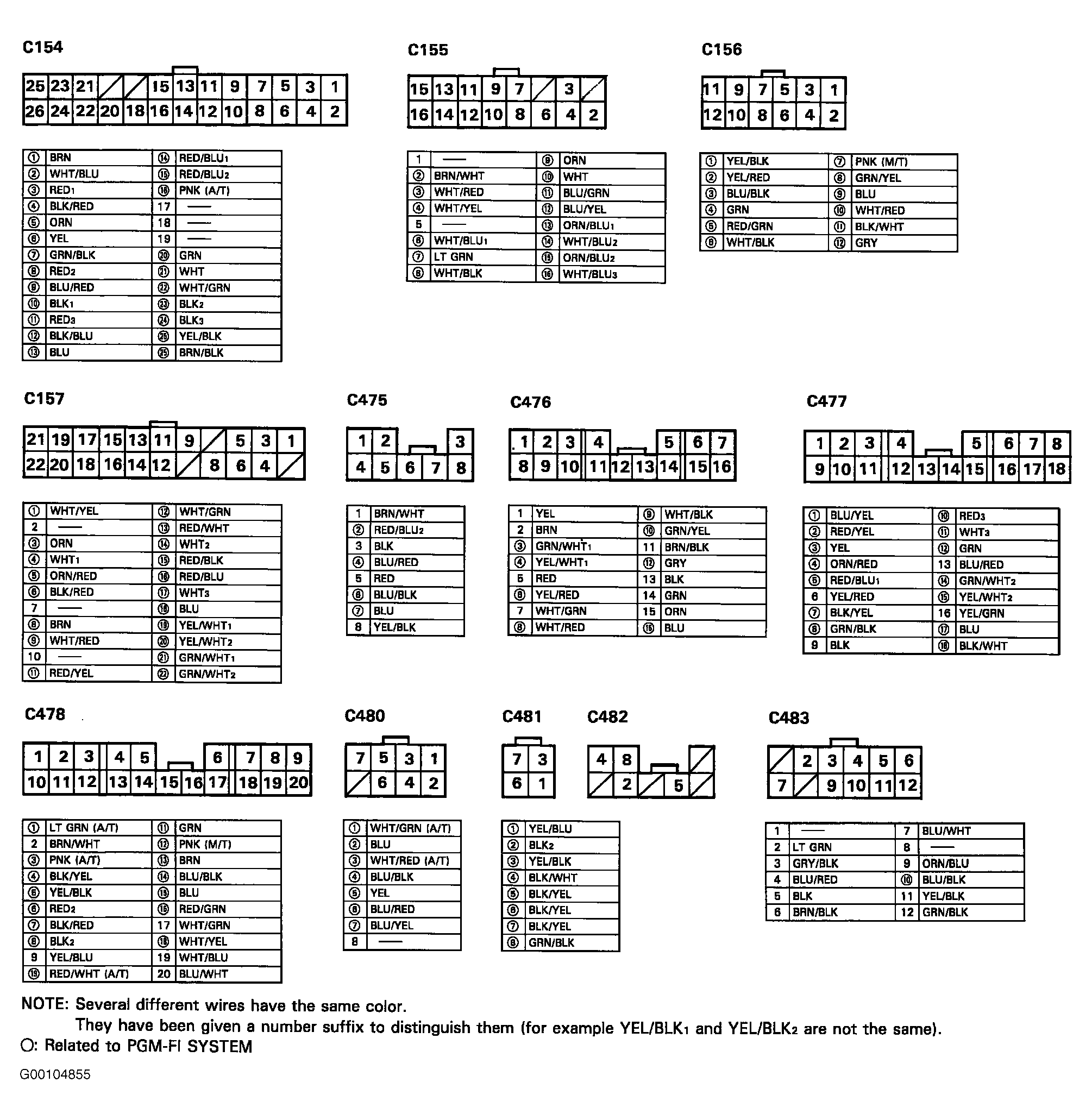

Fig 6: Identifying Front Compartment & Under Dash Connector Terminals & Wire Color (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
