Rear Window Defogger Timer System

See Figure or Figure for connector terminal identification.

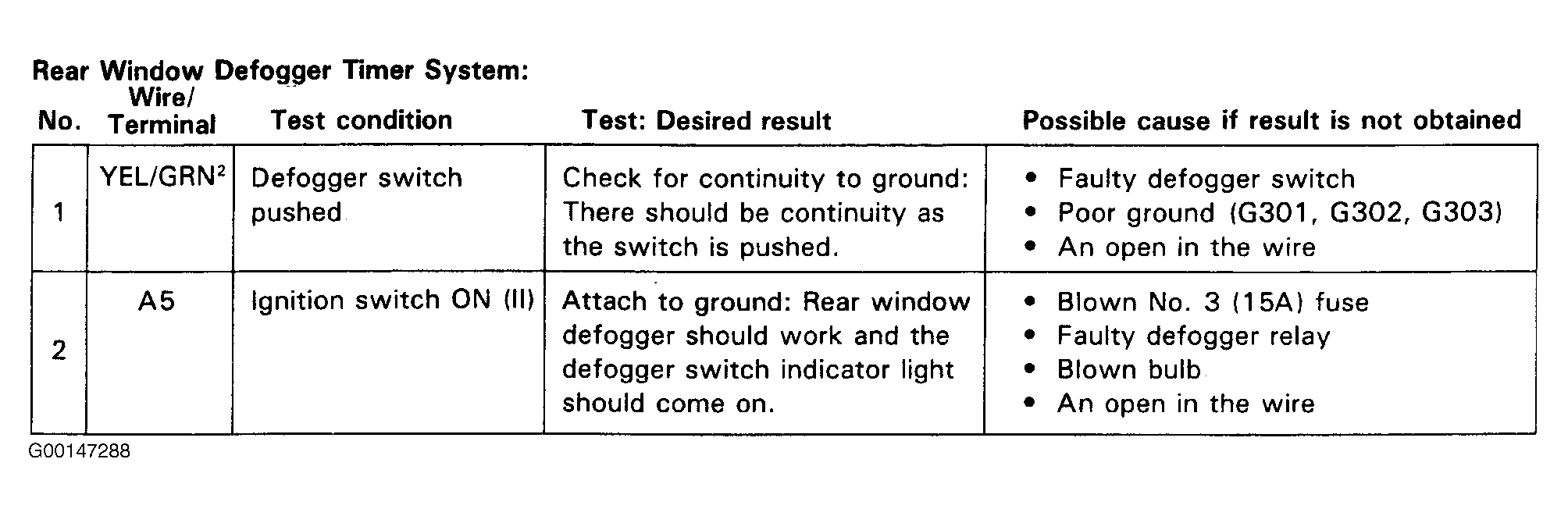

Fig 1: Rear Window Defogger Timer System Input Test

G00147288

Courtesy of AMERICAN HONDA MOTOR CO., INC.
