Passenger Window Switch Test

Disconnect connector from switch. See WINDOW SWITCH under REMOVAL & INSTALLATION. Check for continuity between specified switch terminals with switch in each position. If continuity is not as specified, replace switch. See Fig 1 . See PASSENGER POWER WINDOW SWITCH TEST table.

PASSENGER POWER WINDOW SWITCH TEST ⁽¹⁾

Window Switch Position

Continuity Between Terminals

Off

"D" & "E"; "G" & "H"

"D" & "E"; "C" & "G"

Down

"C" & "D"; "G" & "H"

⁽¹⁾	See Fig 1 .

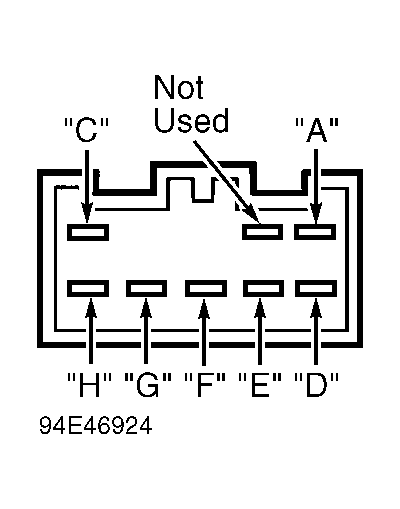

Fig 1: Passenger Switch Terminals (Front Switch; Rear Switches Similar)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
