Using ABS Tester

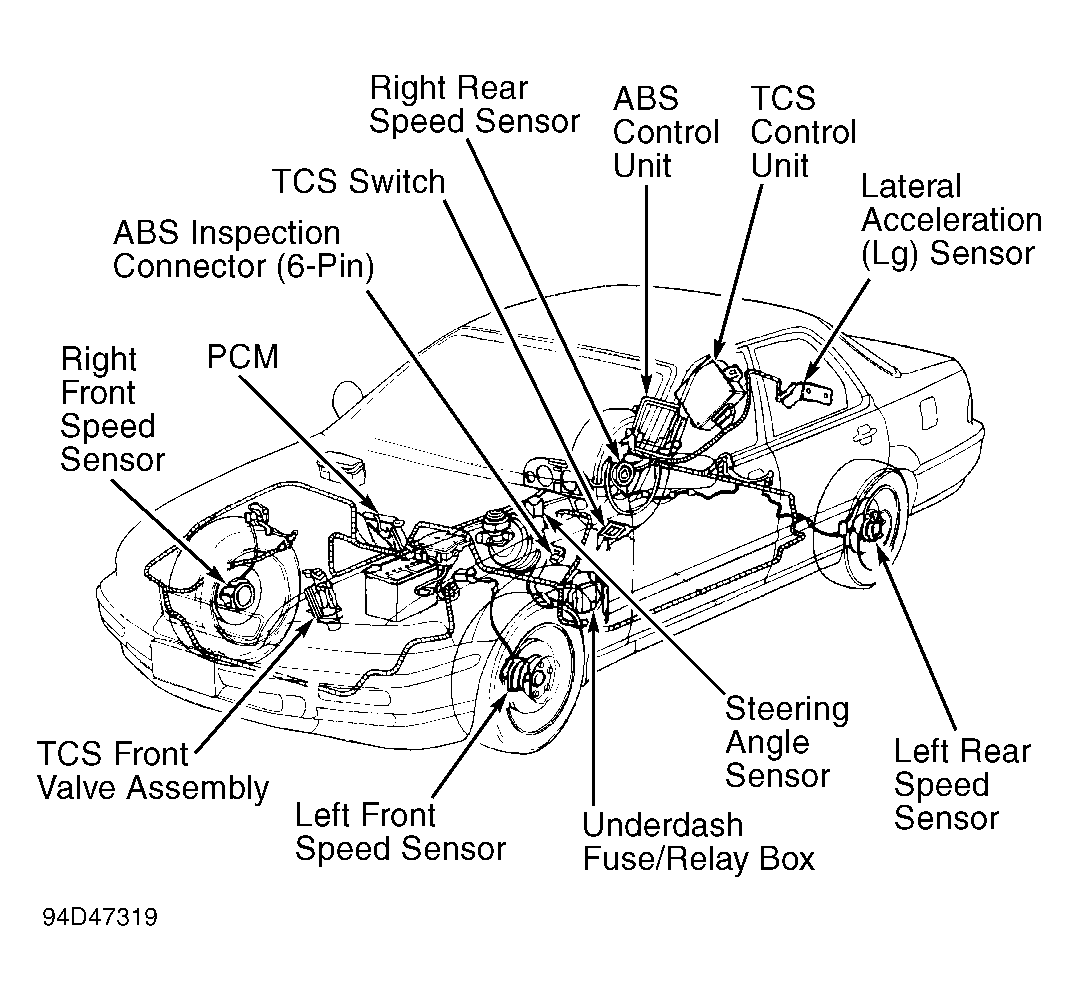

  1. Park vehicle on level ground, and block wheels. Set transmission in Park (A/T) or Neutral (M/T). Release parking brake. Connect ABS Tester (07HAJ-SG0010B) to ABS inspection 6-pin connector. See Figure .
  2. Fill modulator reservoir to MAX level. Start engine and allow to idle for a few minutes. Stop engine, and check fluid level in modulator reservoir. Refill to MAX level, if necessary.
  3. Bleed high-pressure fluid from maintenance bleeder using ABS "T" wrench. See Figure . Start engine and allow to idle for a few minutes. Stop engine, and check fluid level in modulator reservoir. Refill to MAX level, if necessary. Turn ABS tester mode selector to mode 2.
  4. Depress brake pedal firmly, and press START TEST button. Kickback should be felt. If kickback is not felt, repeat step 3). If kickback is felt, repeat step 4) for ABS tester modes 3, 4 and 5.
  5. Fill modulator reservoir to MAX level. Perform system function test. See TCS FUNCTION TEST  .
