Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

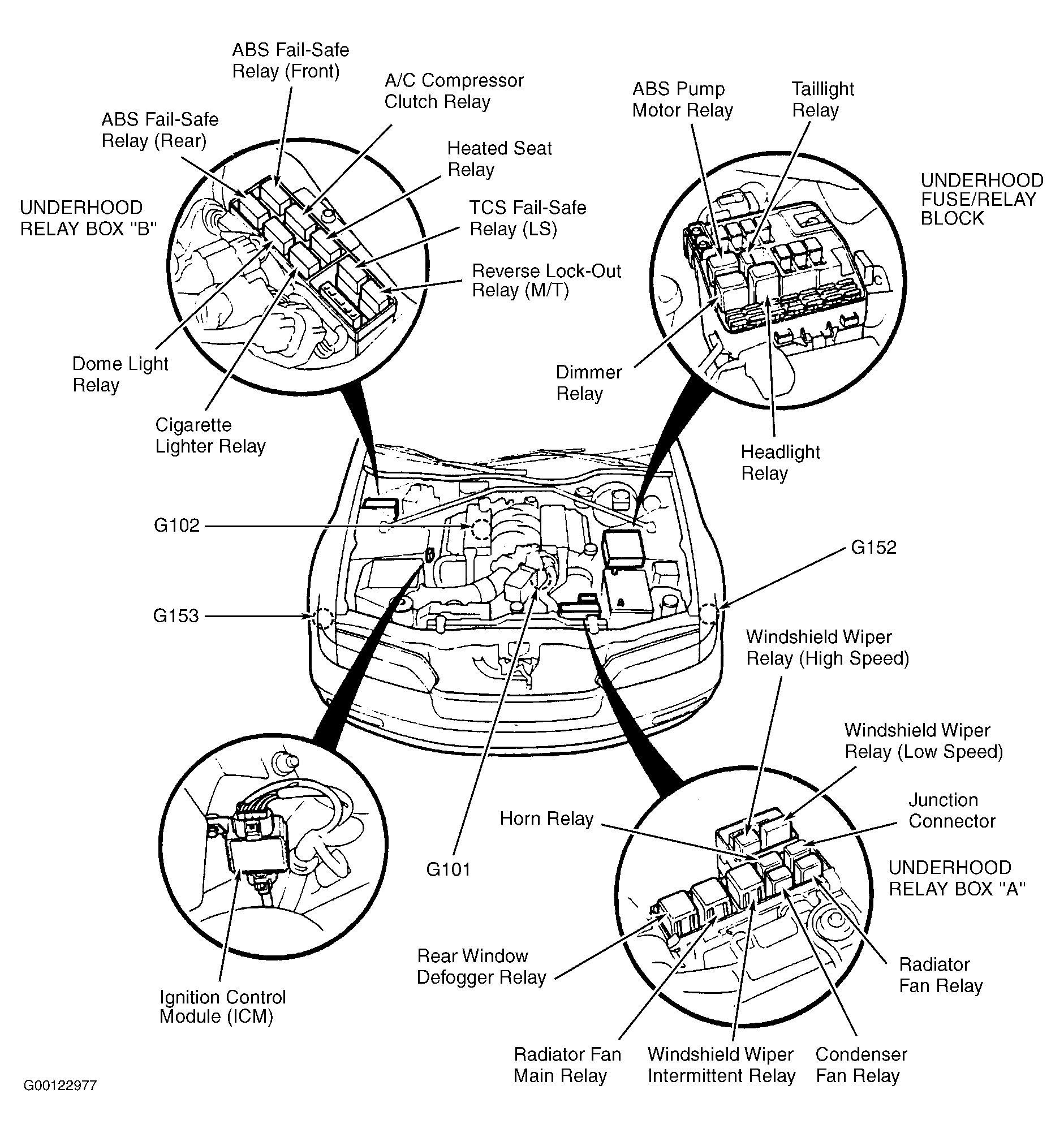

Fig 1: Engine Compartment (1 Of 2)

Fig 2: Engine Compartment (2 Of 2)

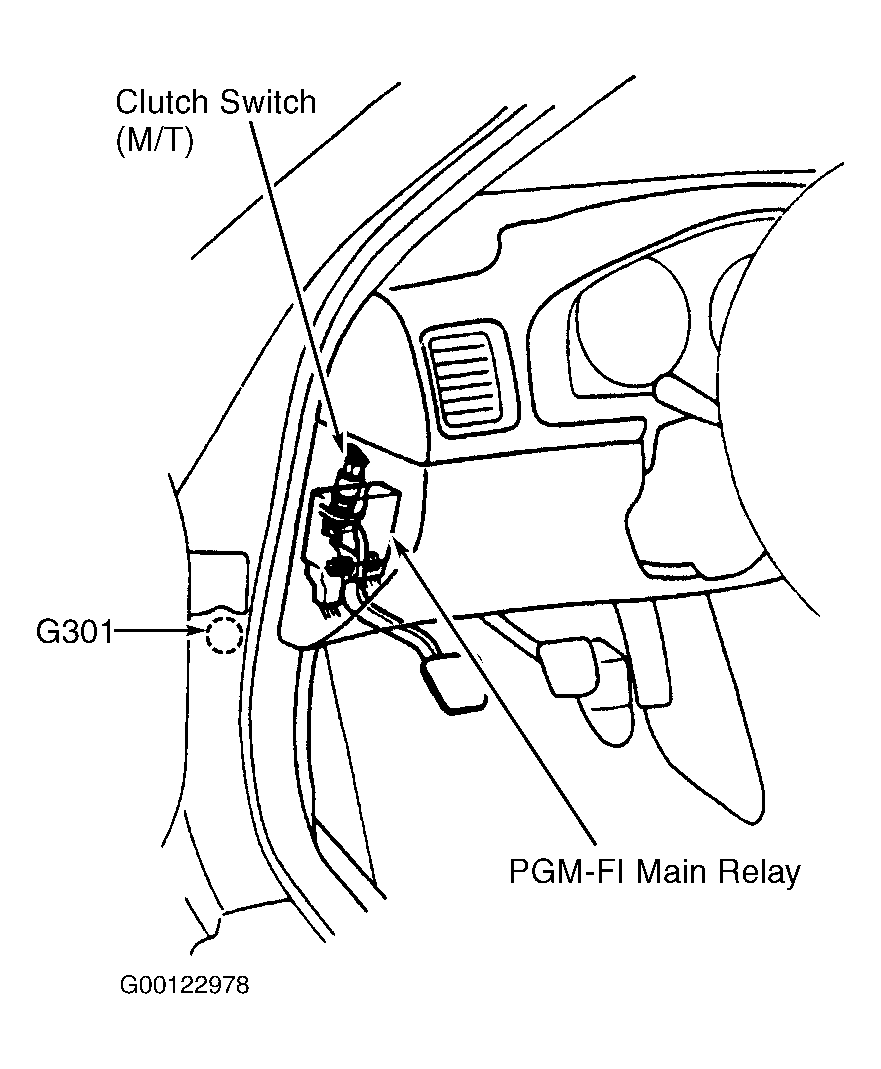

Fig 3: Left End Of Dash (1 Of 2)

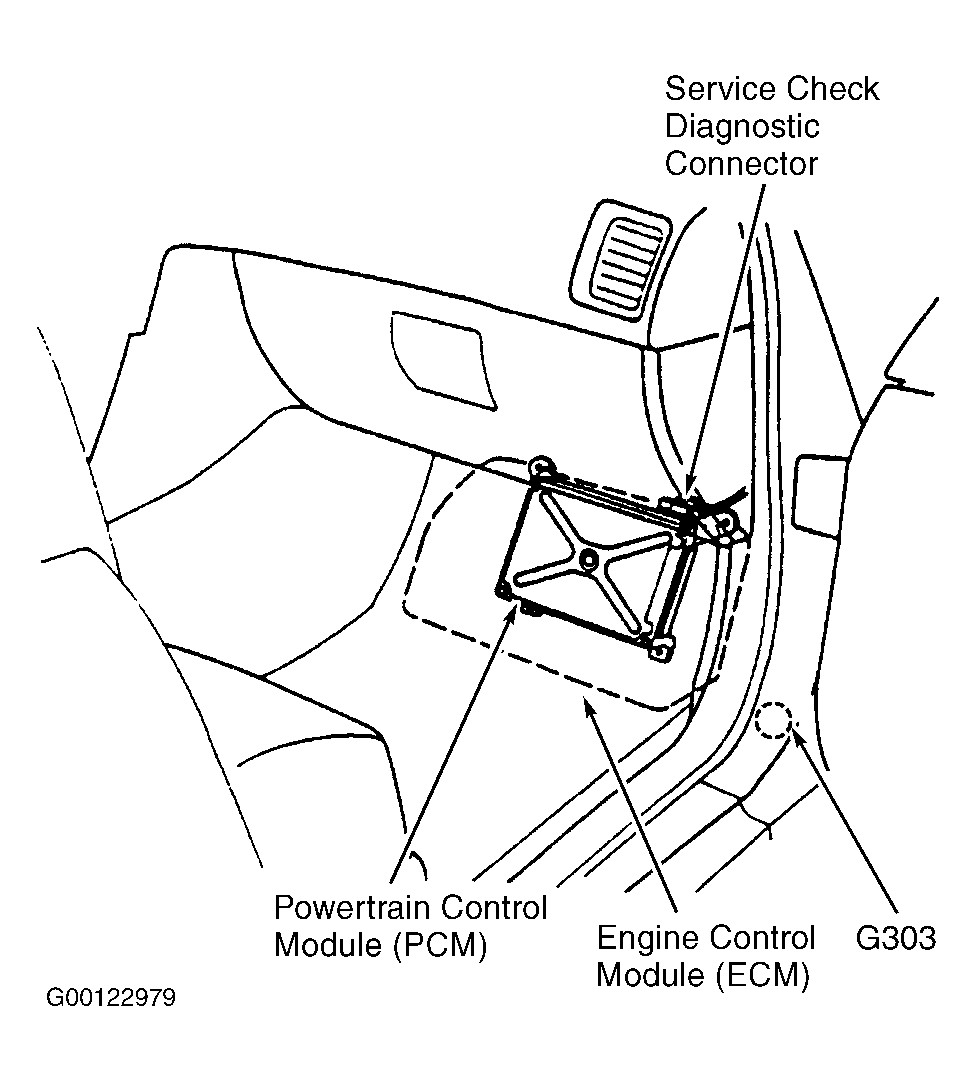

Fig 4: Right End Of Dash (2 Of 2)

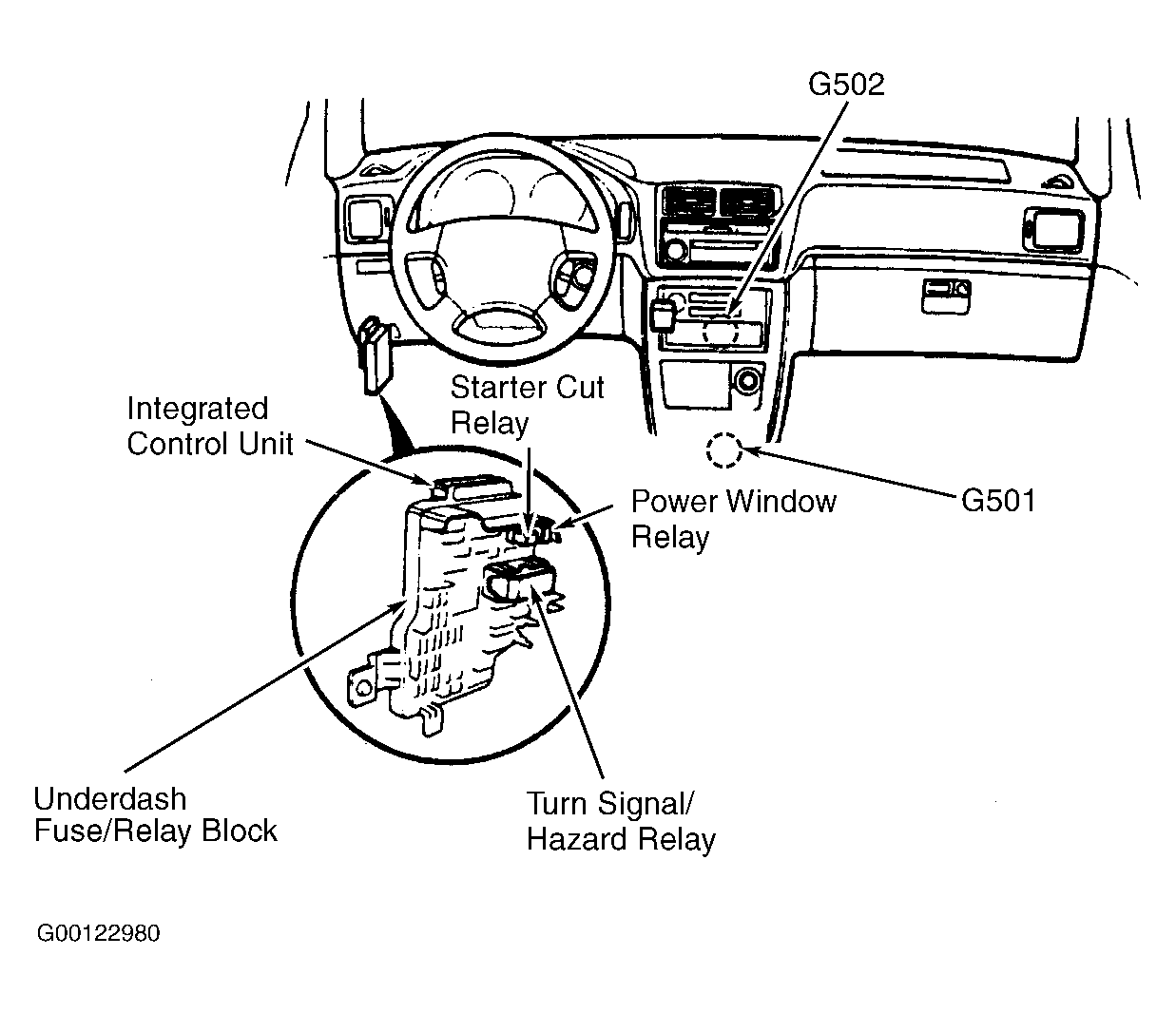

Fig 5: Dash (1 Of 4)

Fig 6: Dash (2 Of 4)

Fig 7: Dash (3 Of 4)

Fig 8: Dash (4 Of 4)

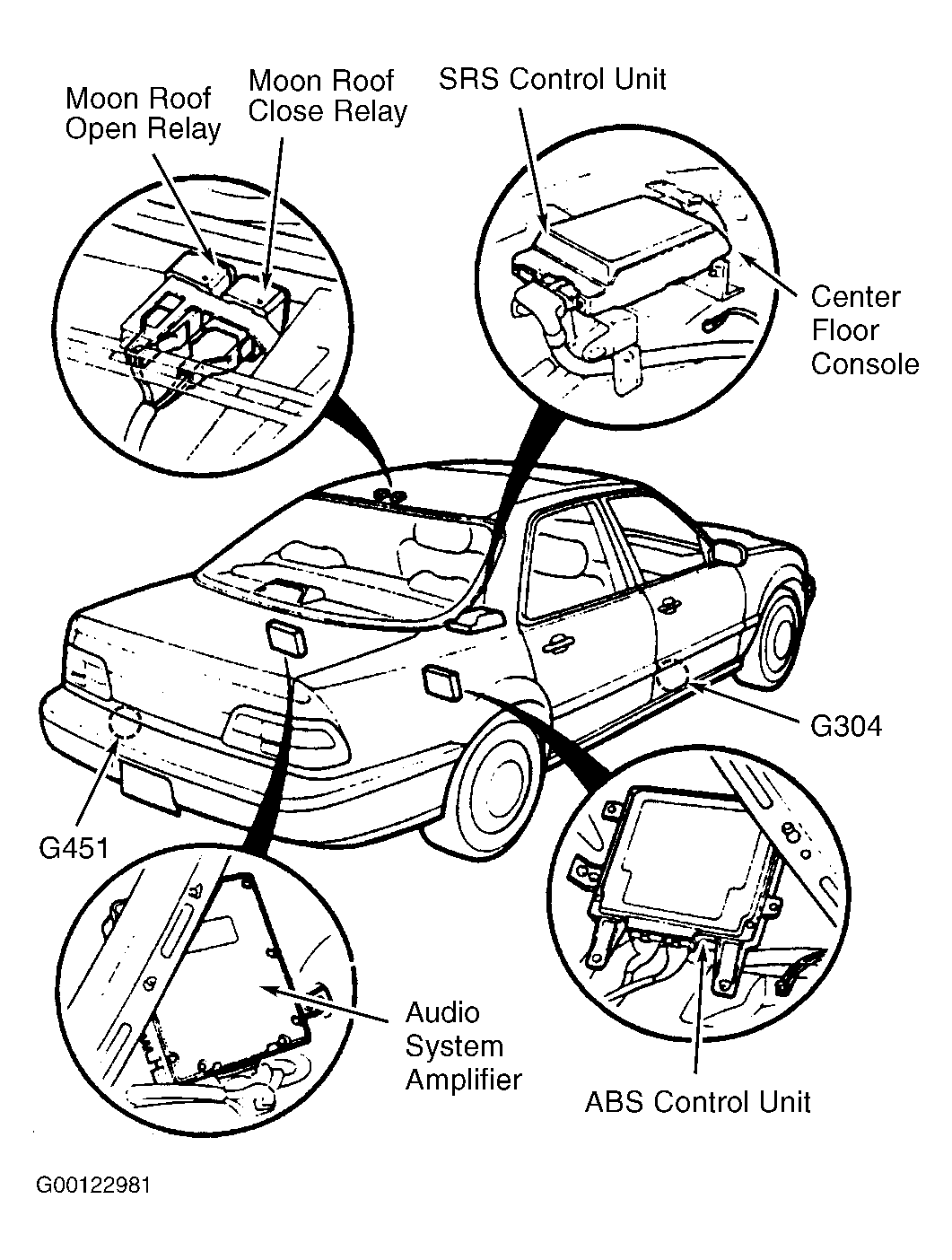

Fig 9: Vehicle Overview
