Component Locations

NOTE: For component locations, refer to Fig 5 .

COMPONENT LOCATIONS

Component	Location
Ground G201 (1995-96)	Right Front of Luggage Compartment. See Fig 1 .
Ground G201 (1997-01)	Right Front of Luggage Compartment. See Fig 2 .
Ground G401 (1995-96)	Behind Left Kick Panel. See Fig 3 .
Ground G401 (1997-01)	Behind Left Kick Panel. See Fig 4 .

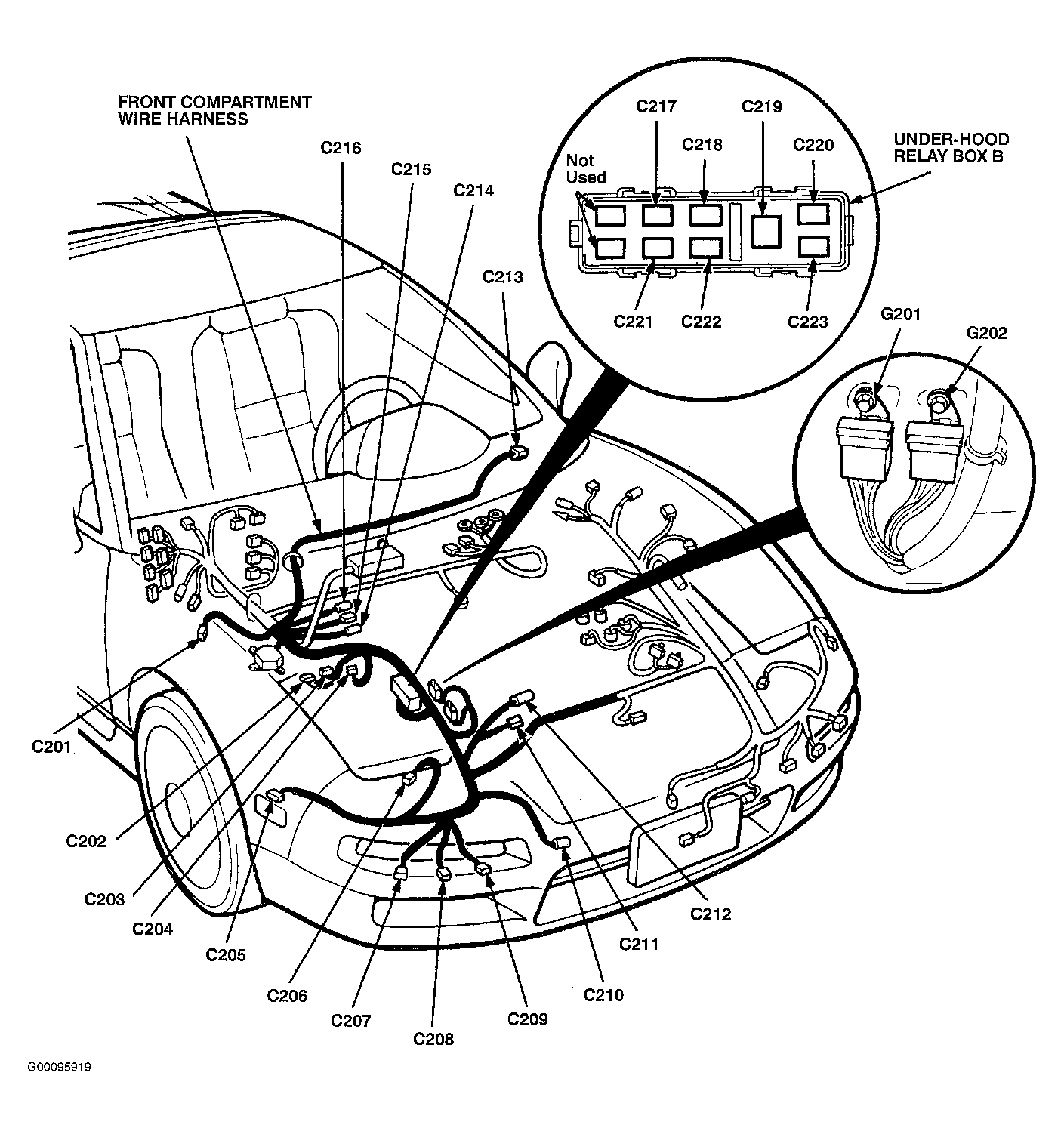

Fig 1: Locating G201 (1995-96))

G00095919

Courtesy of AMERICAN HONDA MOTOR CO., INC.

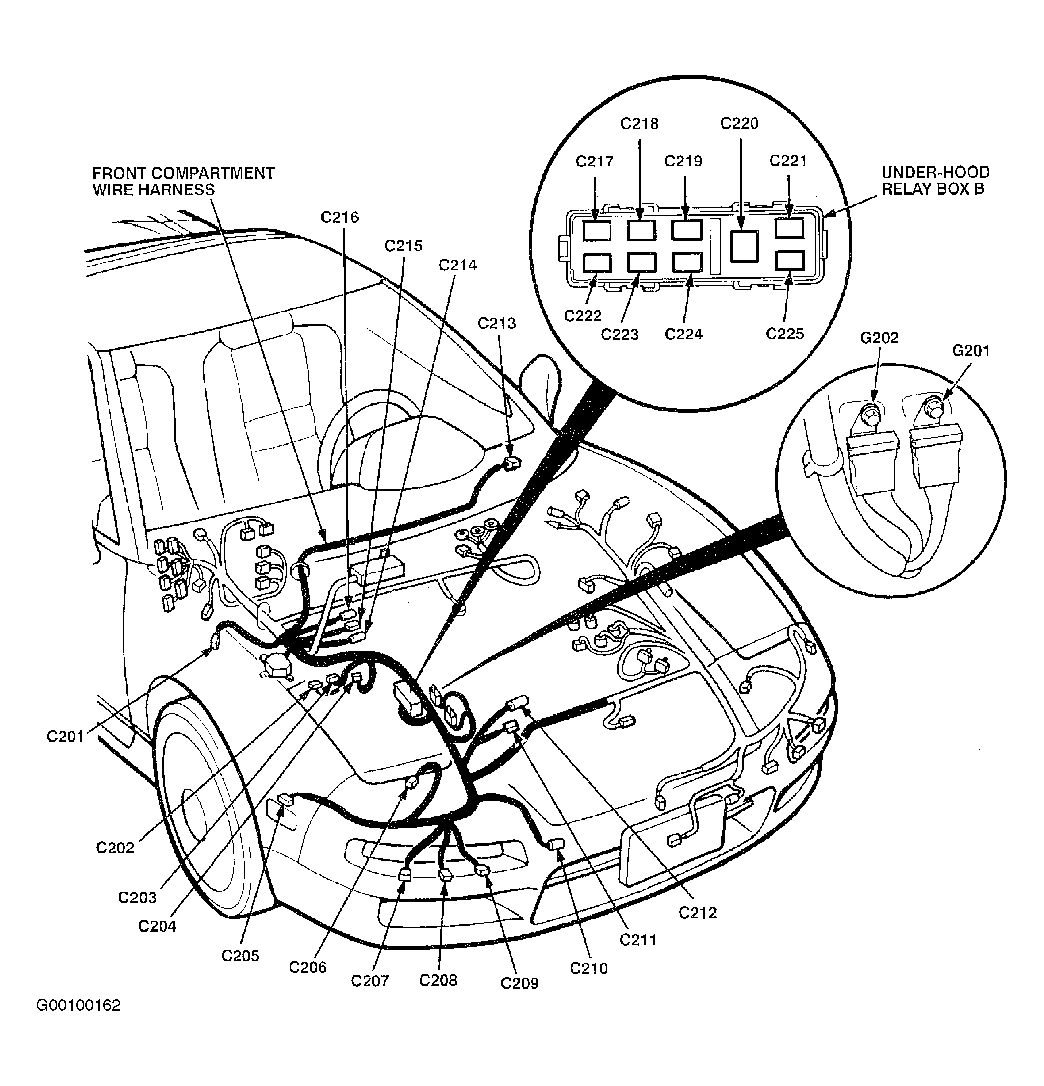

Fig 2: Locating G201 (1997-01)

G00100162

Courtesy of GENERAL MOTORS CORP.

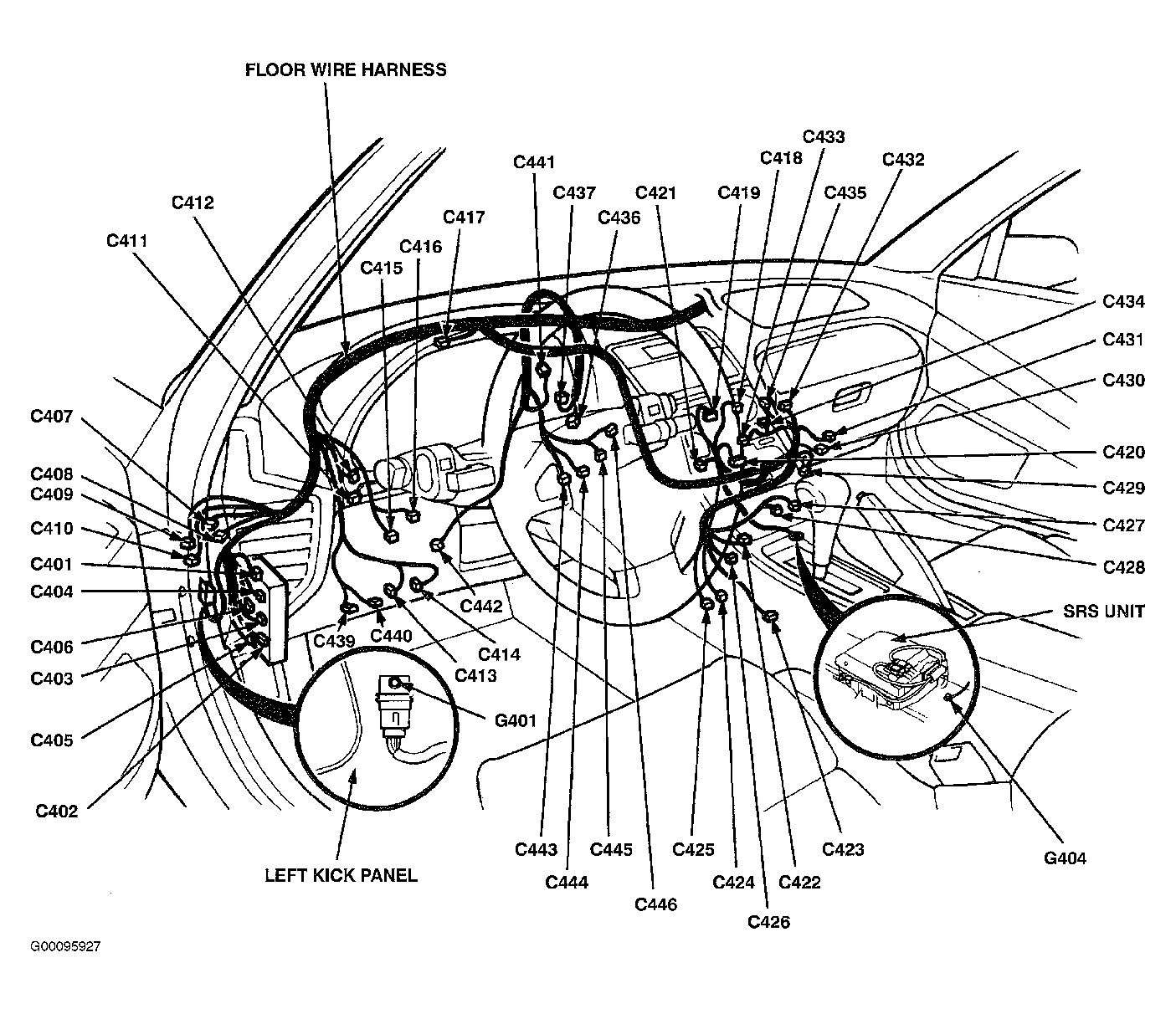

Fig 3: Locating G401 (1995-96)

G00095927

Courtesy of AMERICAN HONDA MOTOR CO., INC.

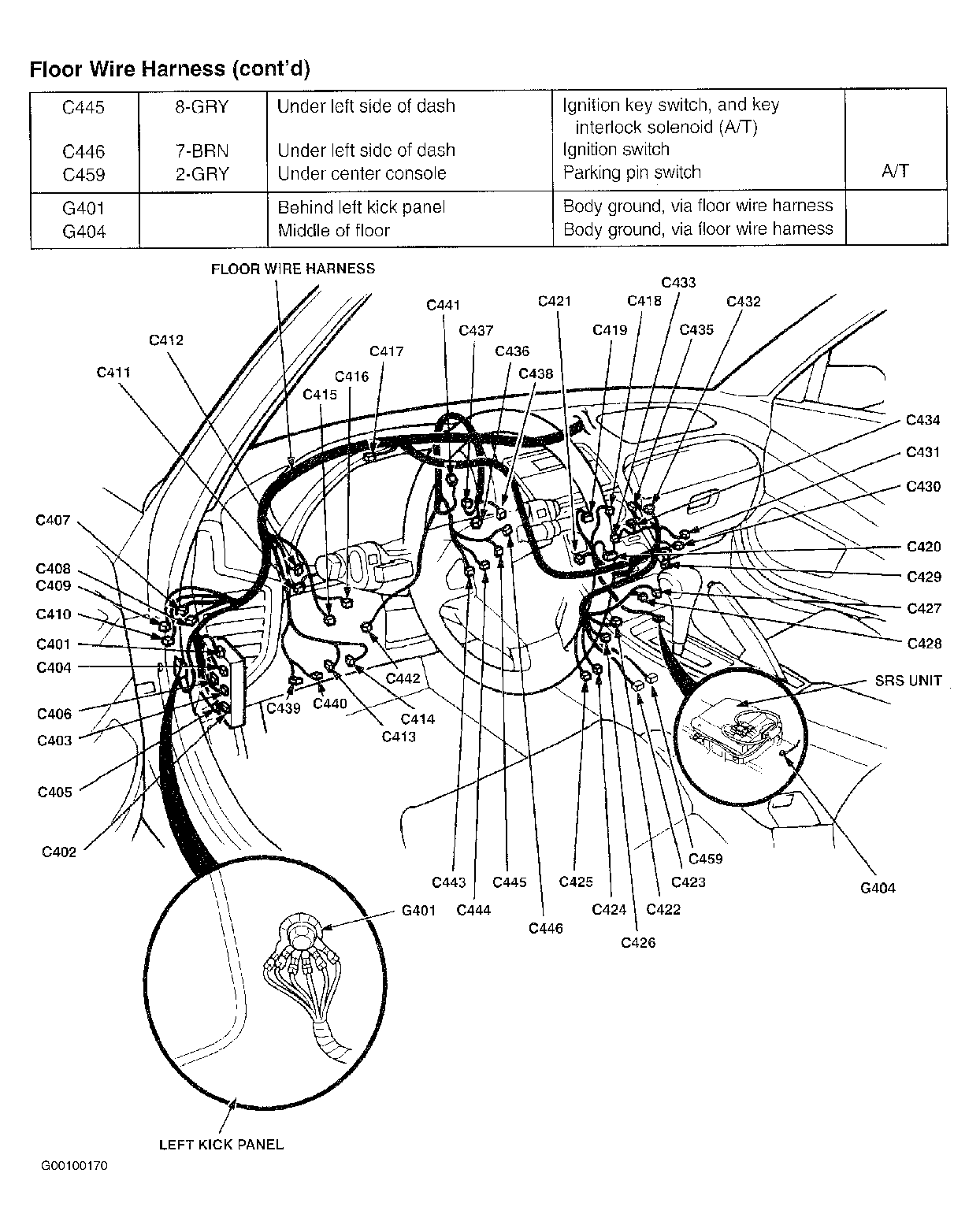

Fig 4: Locating G401 (1997-01)

G00100170

Courtesy of AMERICAN HONDA MOTOR CO., INC.

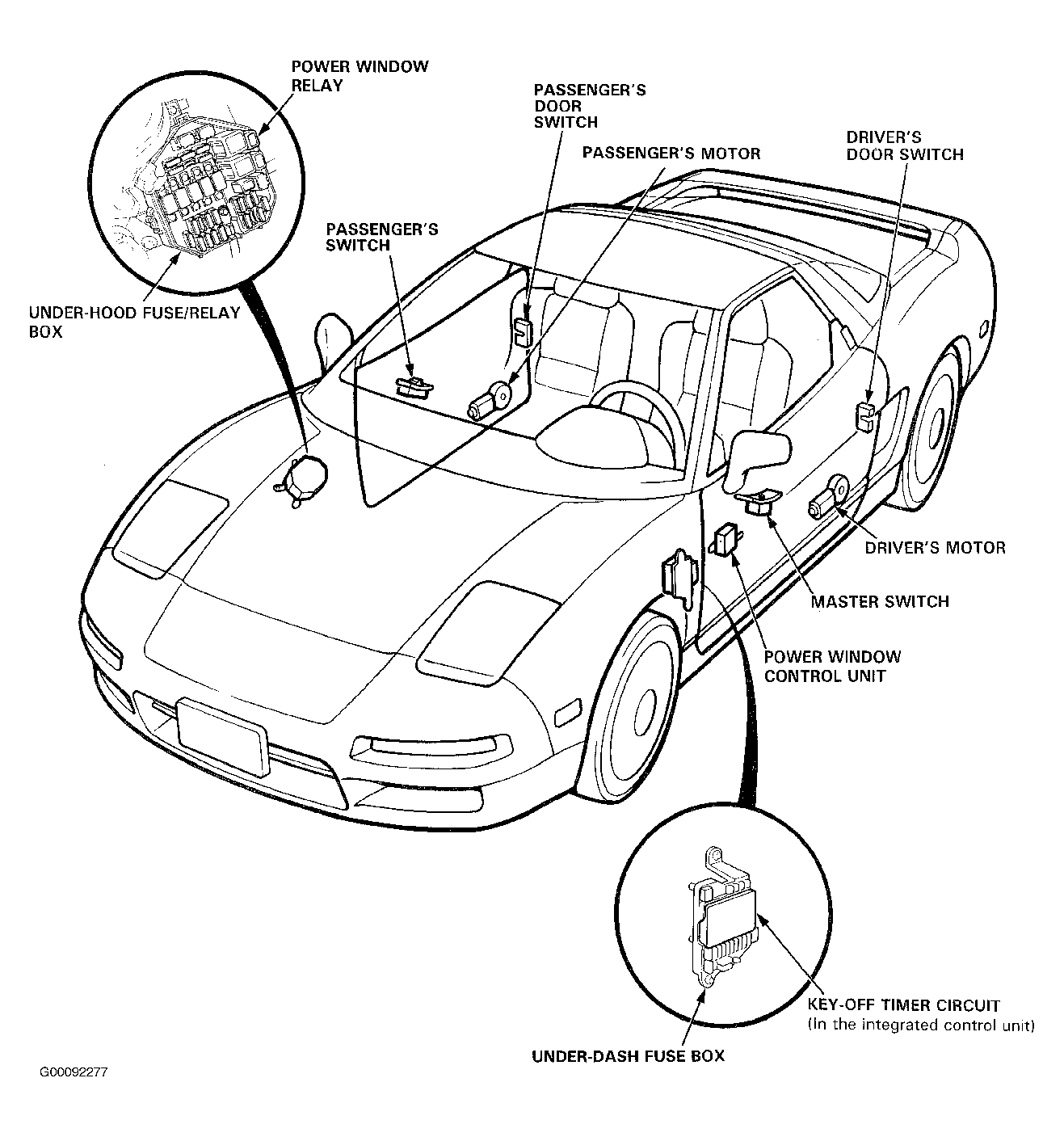

Fig 5: Locating Power Windows Components

G00092277

Courtesy of AMERICAN HONDA MOTOR CO., INC.
