Testing Procedure

If you are using a computerized battery tester, follow test procedure provided with it. If you don't have a computerized tester, follow this conventional test procedure.

To get accurate results, temperature of electrolyte must be between 21°C (70°F) and 38°C (100°F).

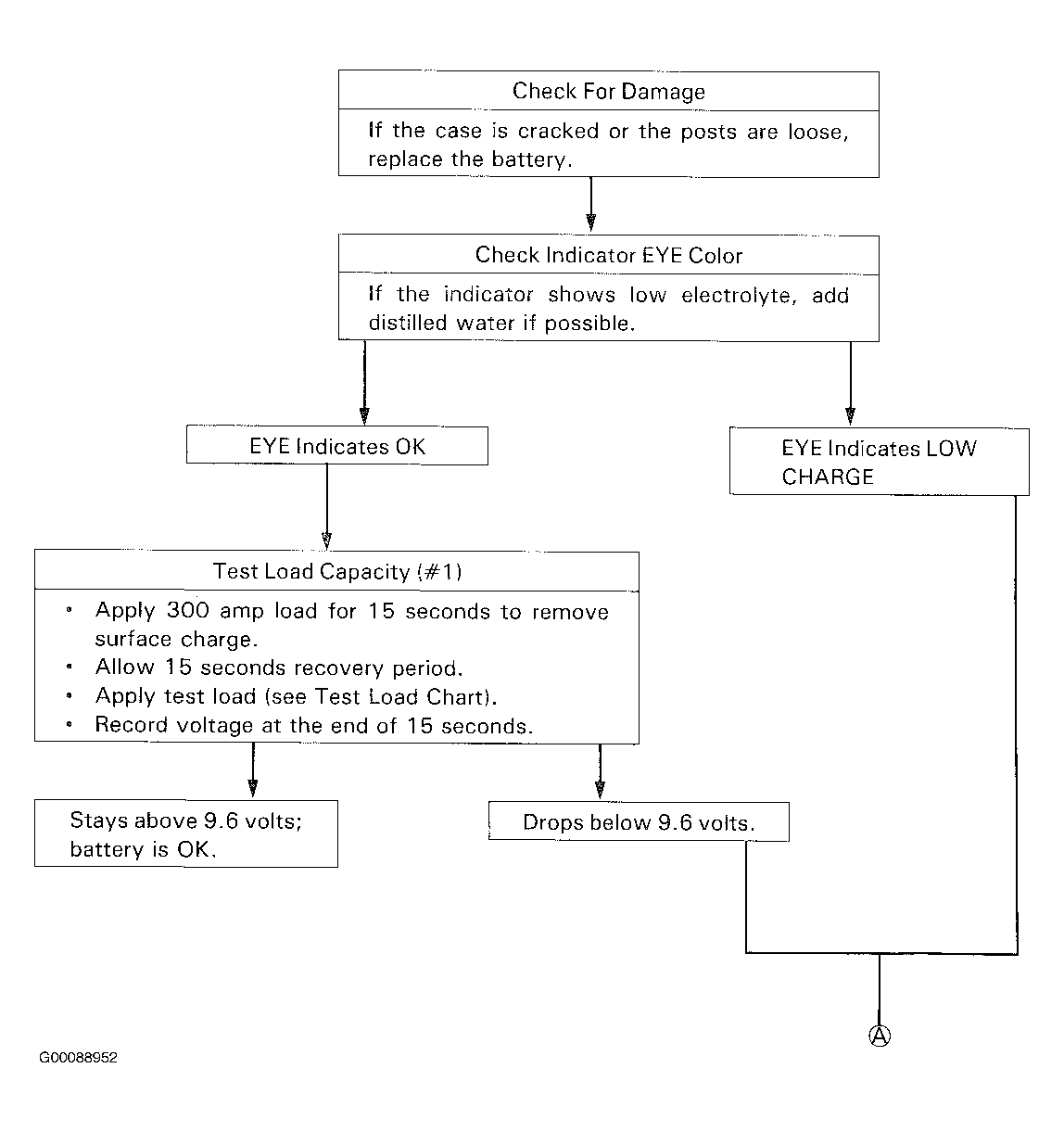

Fig 1: Battery Test Flowchart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

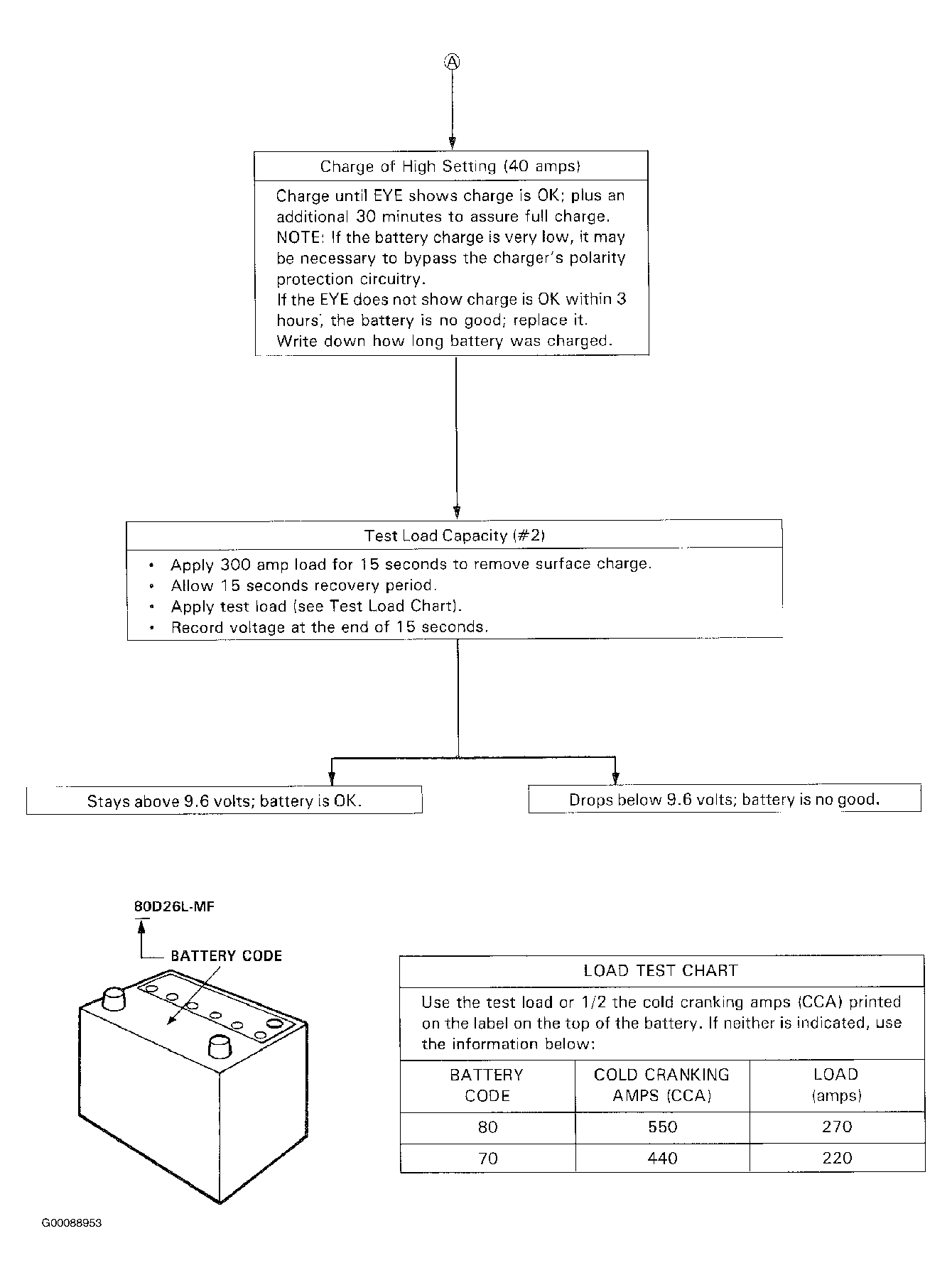

Fig 2: Battery Test Flowchart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
