Specifications & Procedures: Specifications: RUNOUT

Raise the vehicle off the ground, and support it with safety stands in the proper locations. Place the dial gauge on each front and rear wheel rim, turn the wheel slowly by hand. Check the axial and radial runout for front/rear wheel.

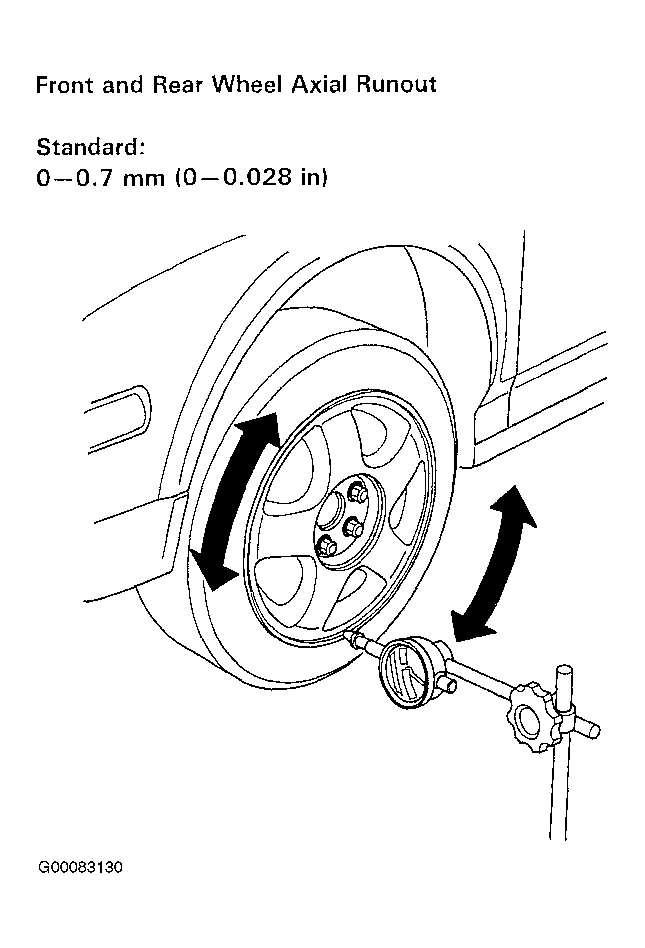

Fig 1: Front And Rear Wheel Axial Runout

Courtesy of AMERICAN HONDA MOTOR CO., INC.

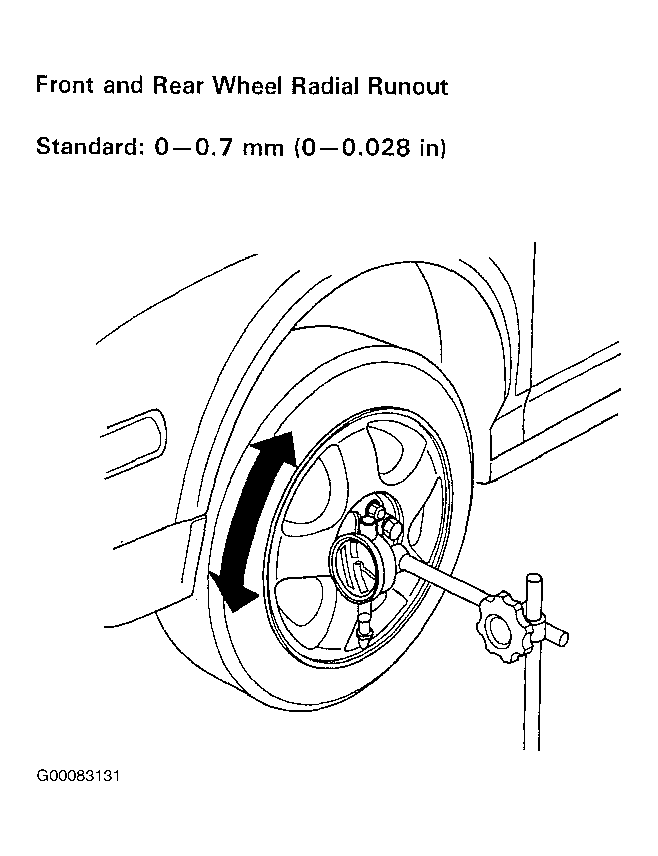

Fig 2: Front And Rear Wheel Radial Runout

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Turn the wheel slowly by hand and check for excessive axial and radial runout. See FRONT & REAR RADIAL RUNOUT  table.

Replace the wheel bearing with new one if the service limit is exceeded.
