Repair and Diagnosis: Transmission: Clutches: Overhaul: Notes

NOTE: Manufacturer recommends replacement of faulty clutch master and release cylinders and does not provide overhaul procedures. For Canadian models, see Figure and Fig 1 .

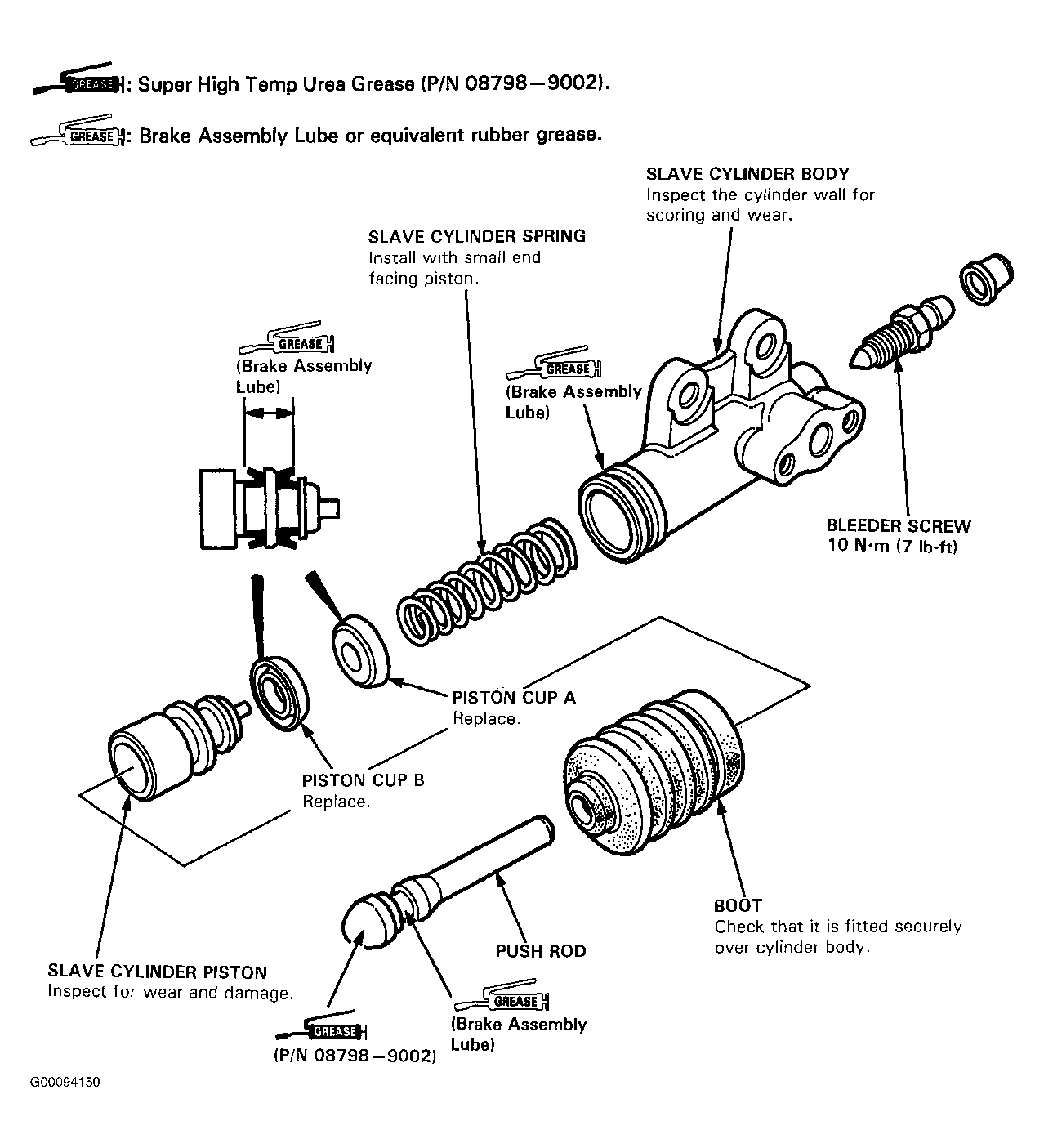

Fig 1: Exploded View Of Slave Cylinder (Canada)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
