Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

Fig 2: Transmission

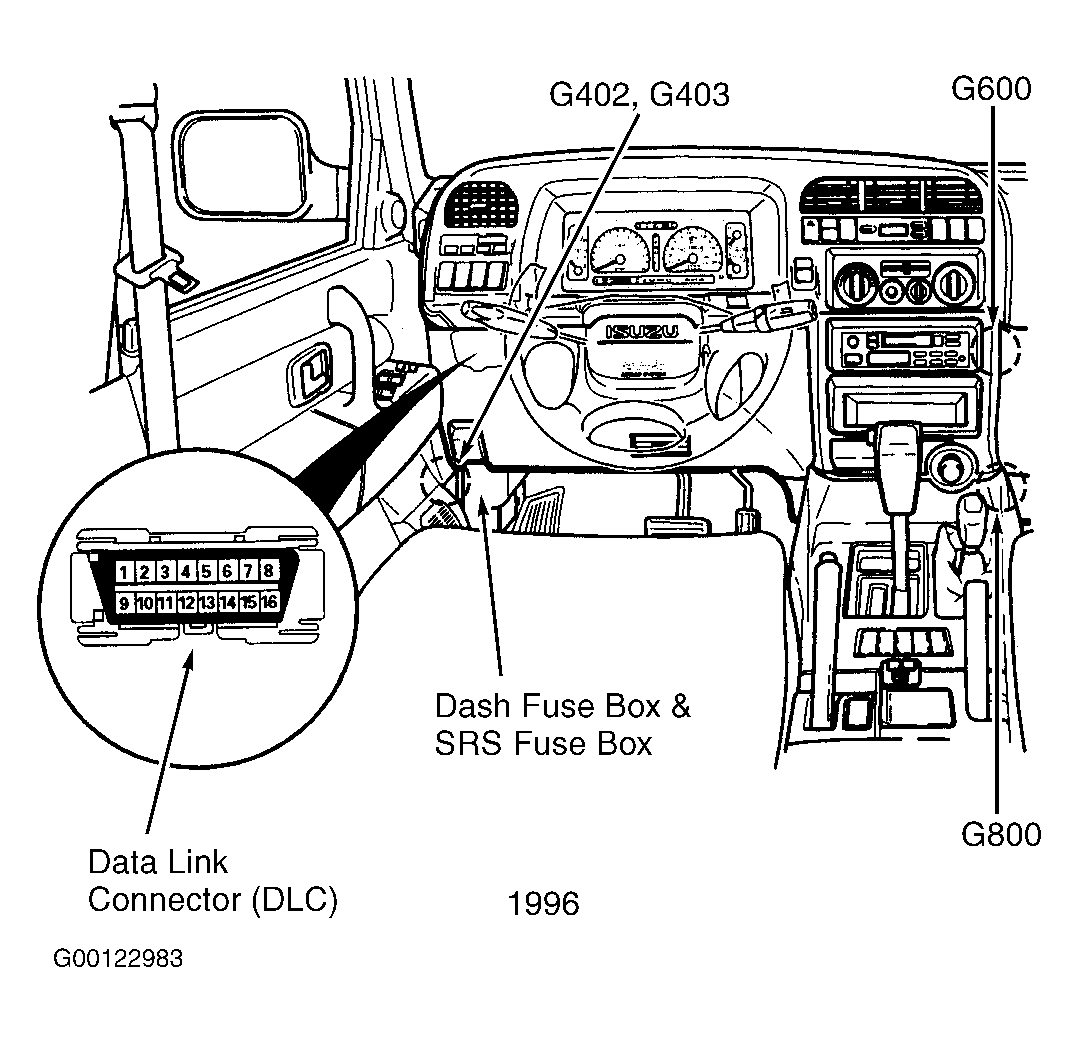

Fig 3: Left Side Of Dash
