Entry Light Timer System

For connector identification, see Figure. For input test, see Fig 1.

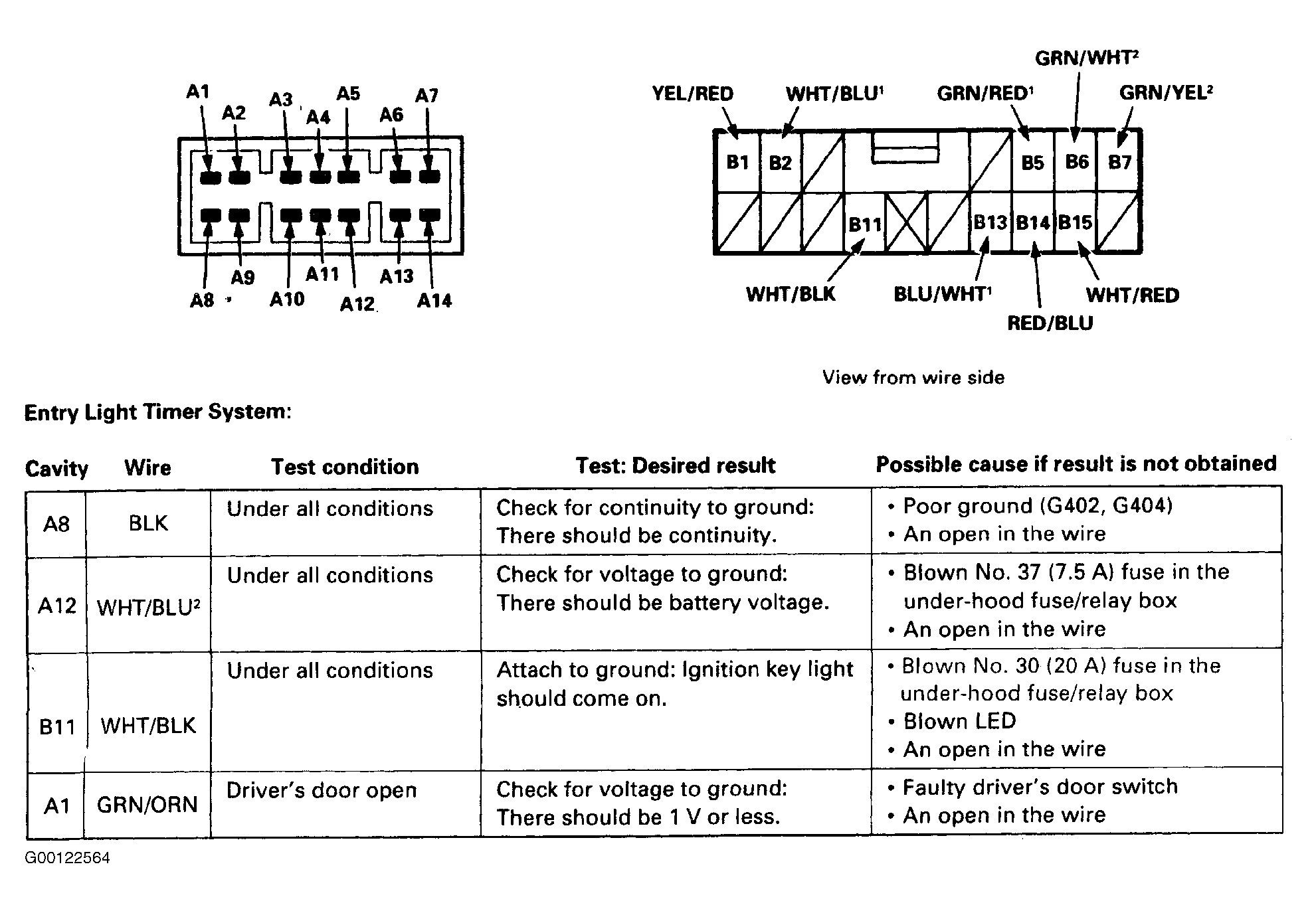

Fig 1: Entry Light Timer System Input Test

G00122564

Courtesy of AMERICAN HONDA MOTOR CO., INC.
