Abs Control Unit: Installation

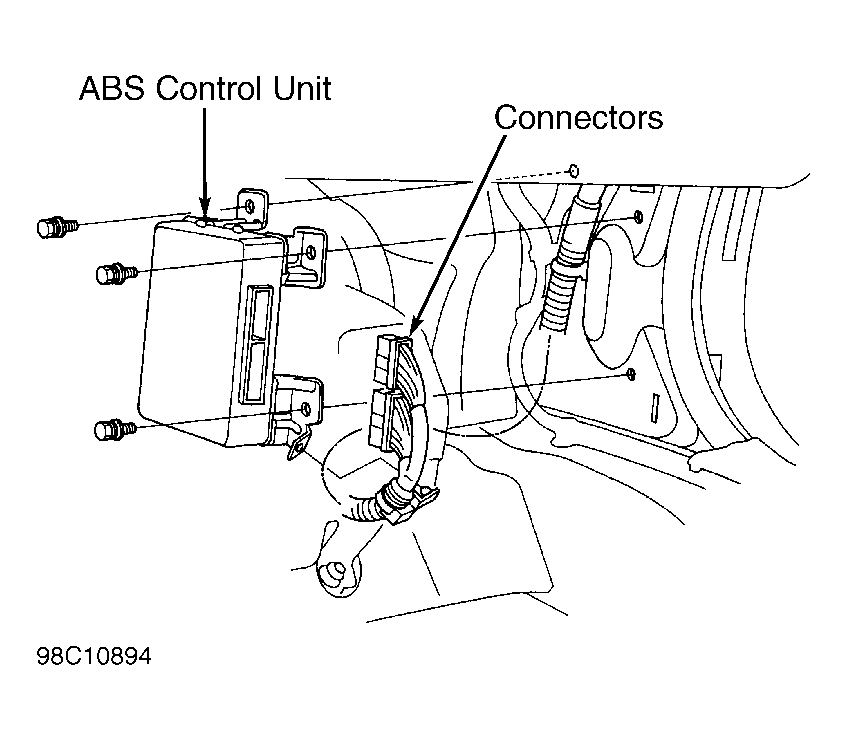

Connect ABS control unit connectors. Install ABS control unit into kick panel area. See Figure . Install right kick panel. After installation, perform ABS FUNCTION TEST  under DIAGNOSIS & TESTING.
