Home >> Acura >> 1997 >> 3.5RL >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Power Mirrors >> Component Tests >> Switch Test

Switch Test

  1. Remove the driver's door panel. See DOOR PANEL  .

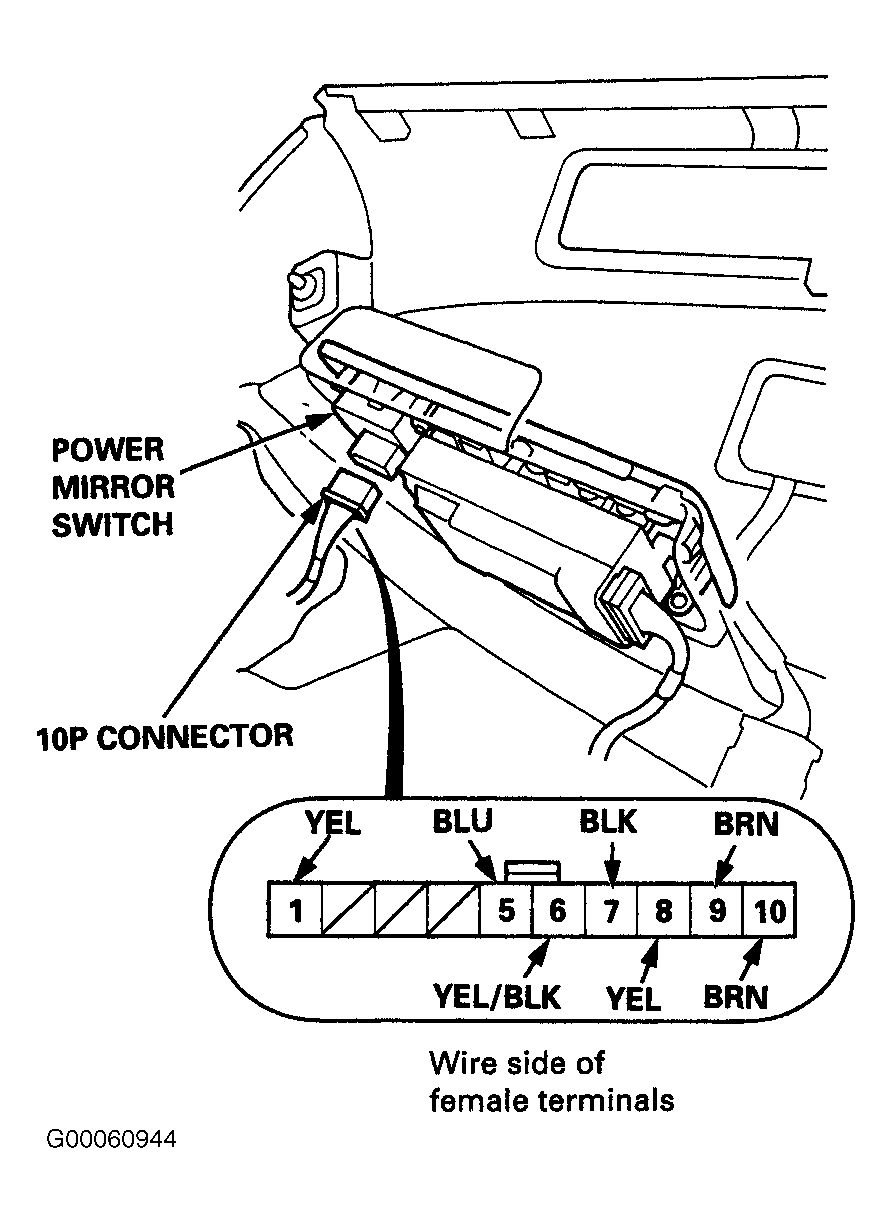

  2. Disconnect the connectors from the power mirror switch. See Figure .
  3. Check for continuity between the terminal in each switch position according to the table. See Fig 1 .

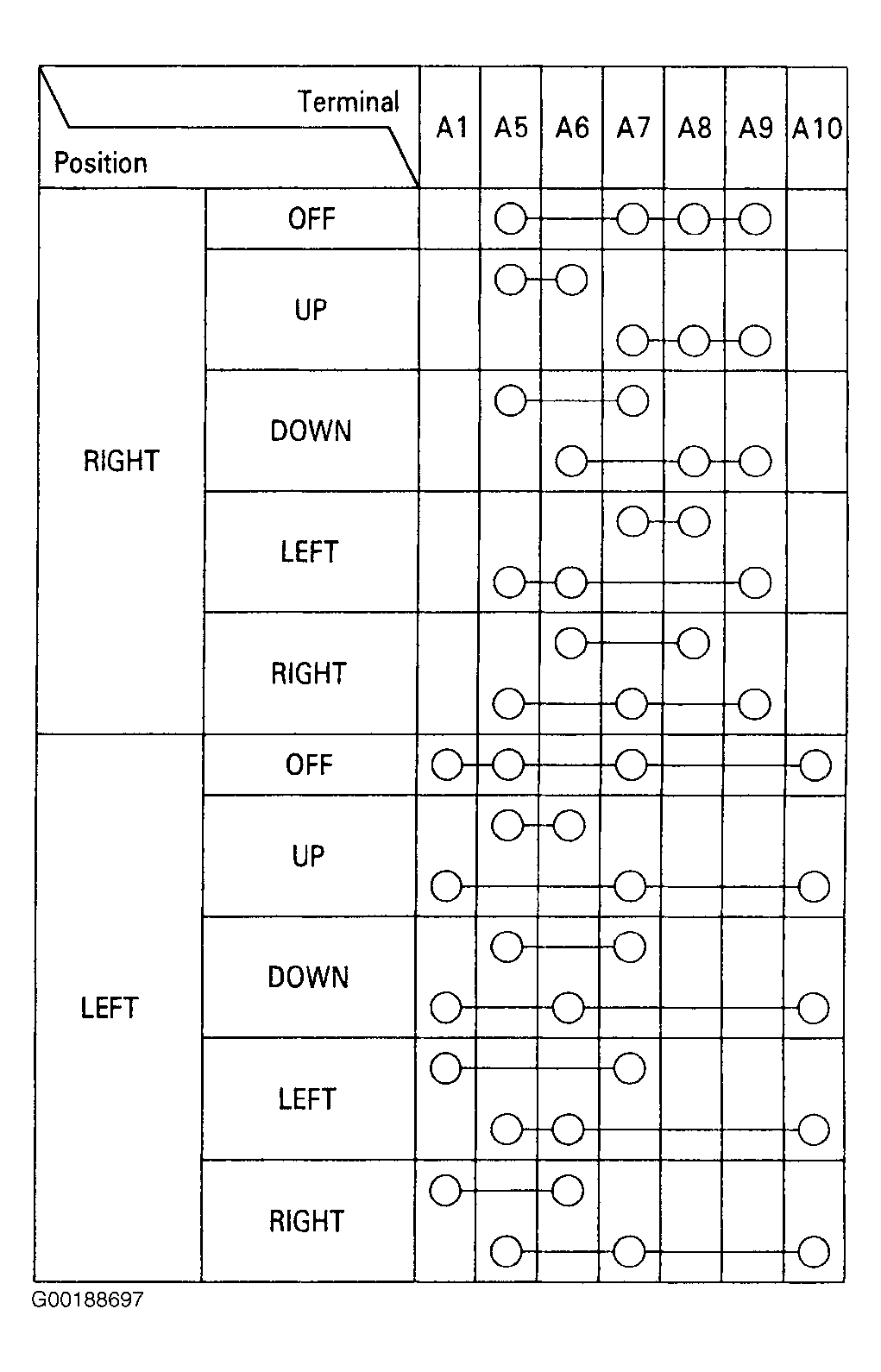

Fig 1: Switch Continuity Test
G00188697Courtesy of AMERICAN HONDA MOTOR CO., INC.
