Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Side Of Dash

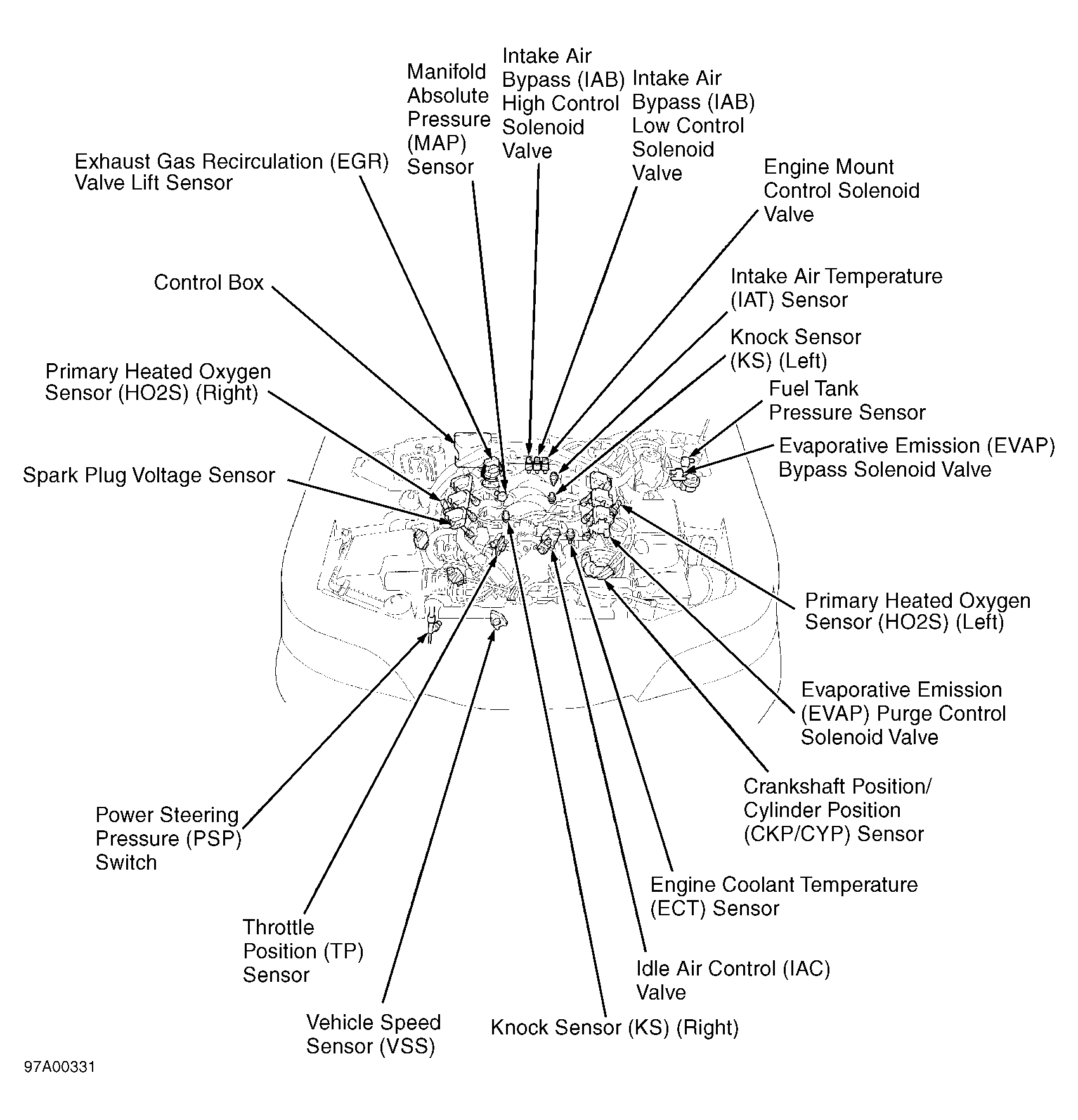

Fig 2: Emissions Control Components

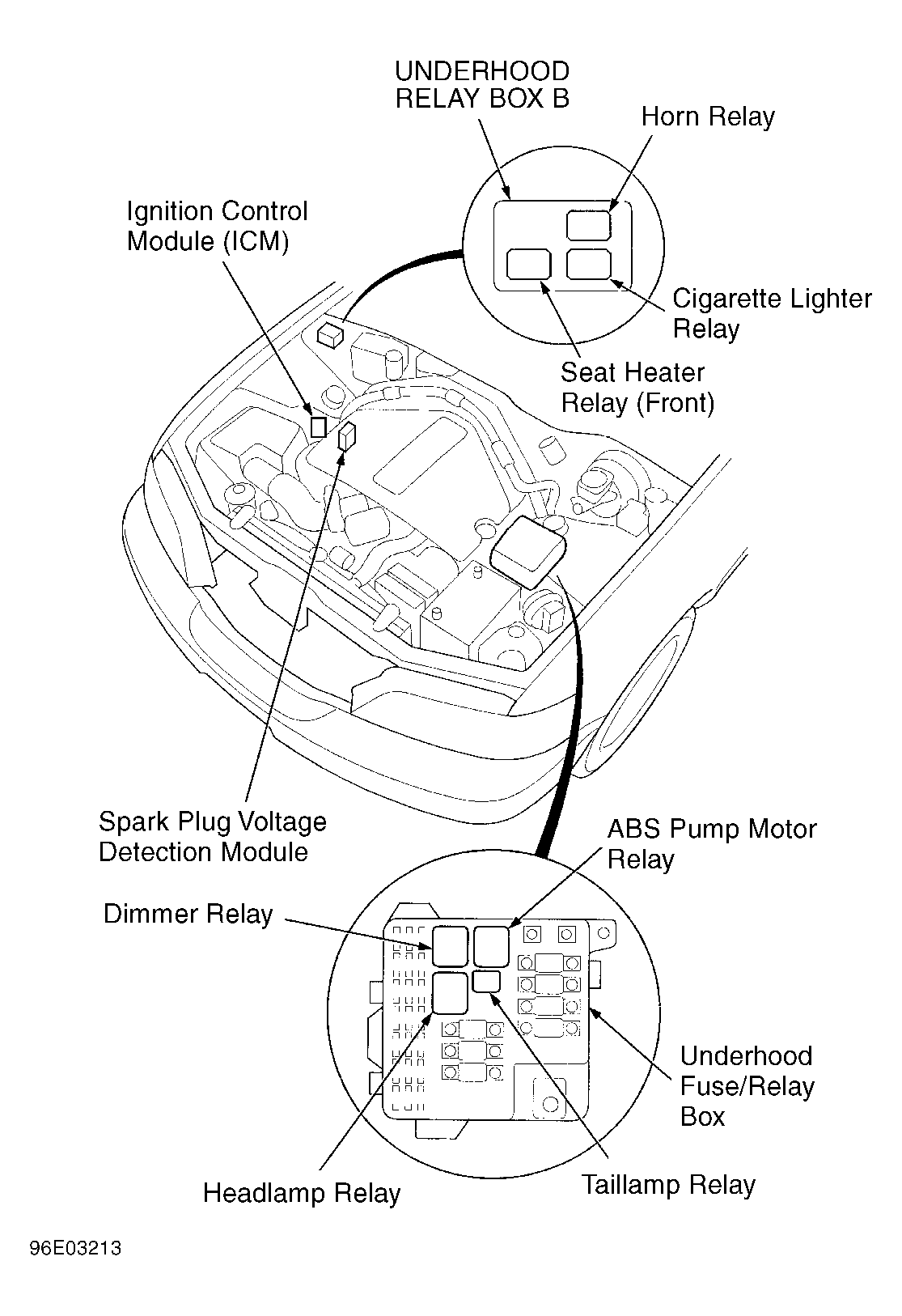

Fig 3: Engine Compartment

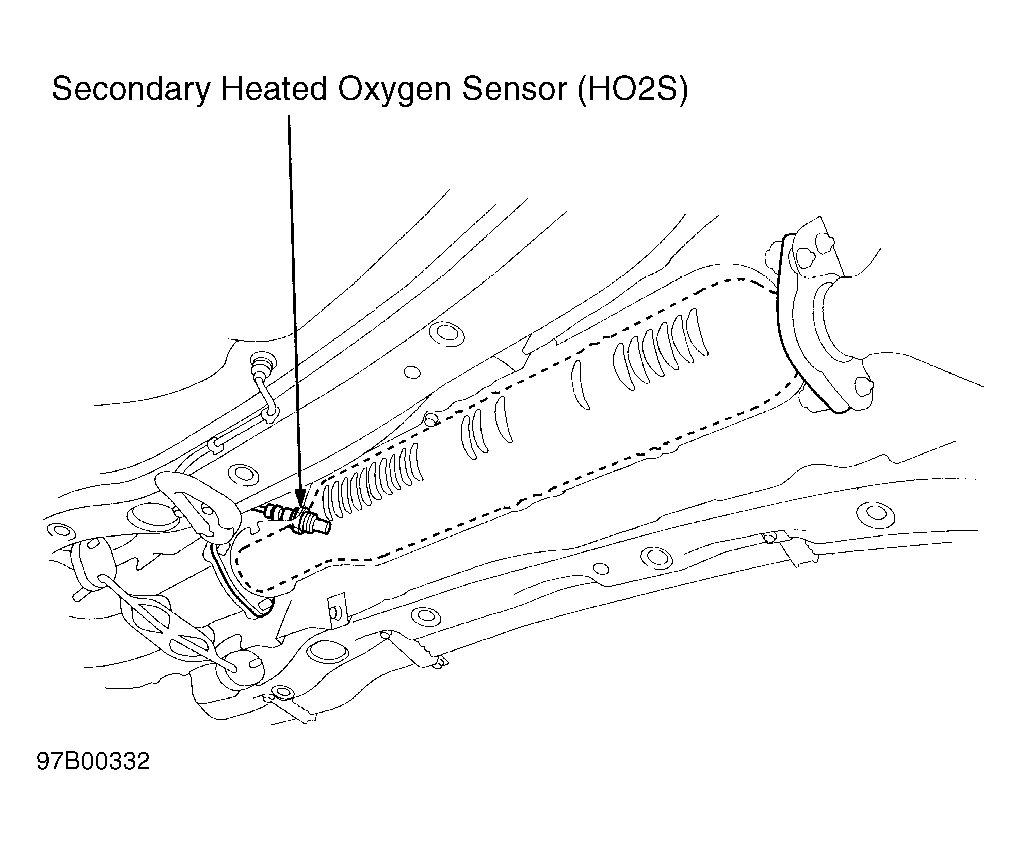

Fig 4: Underside Of Vehicle

Fig 5: Trunk

Fig 6: Transaxle

Fig 7: Engine Compartment

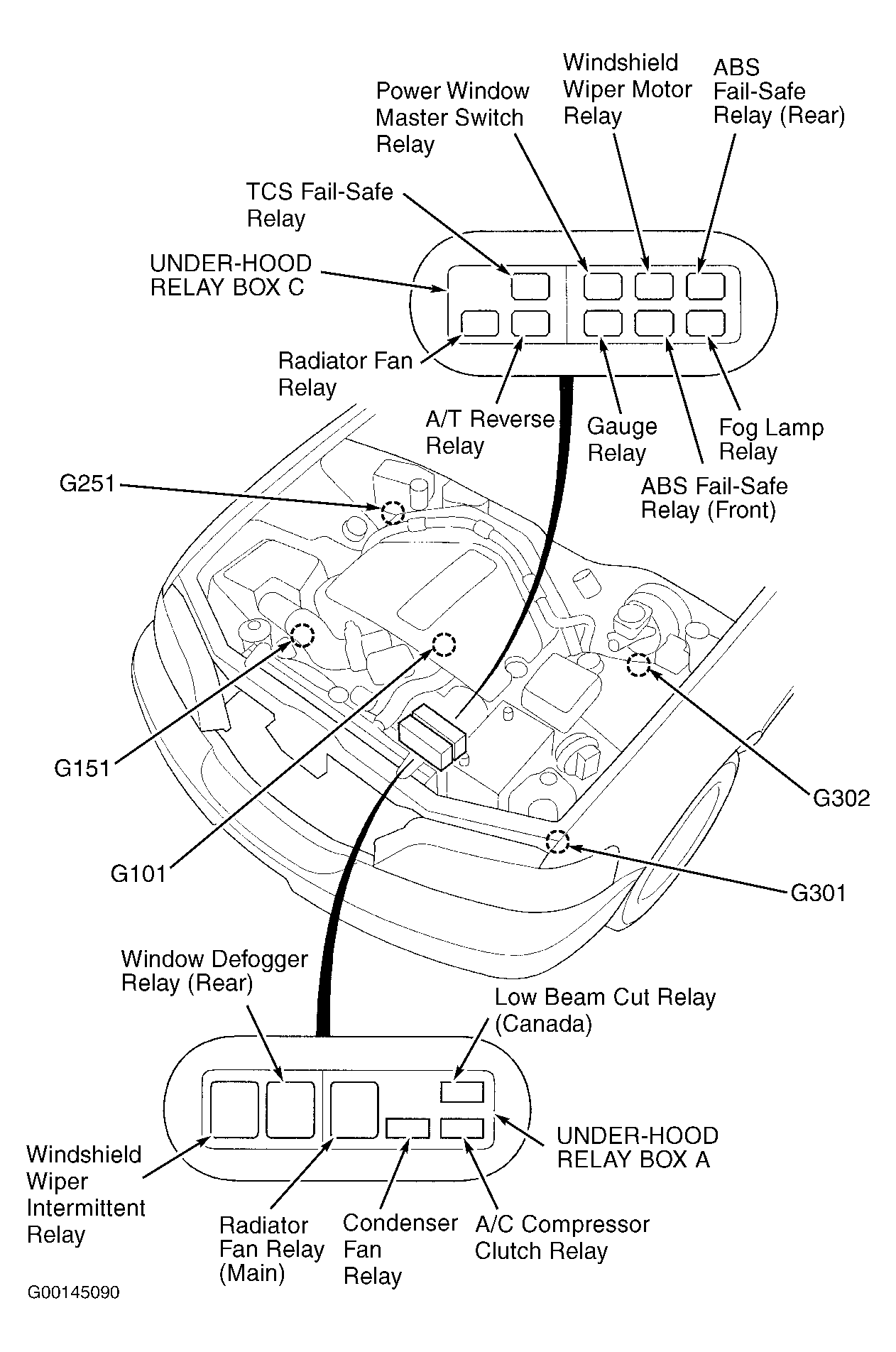

Fig 8: Engine Compartment

Fig 9: Left Side Of Dash

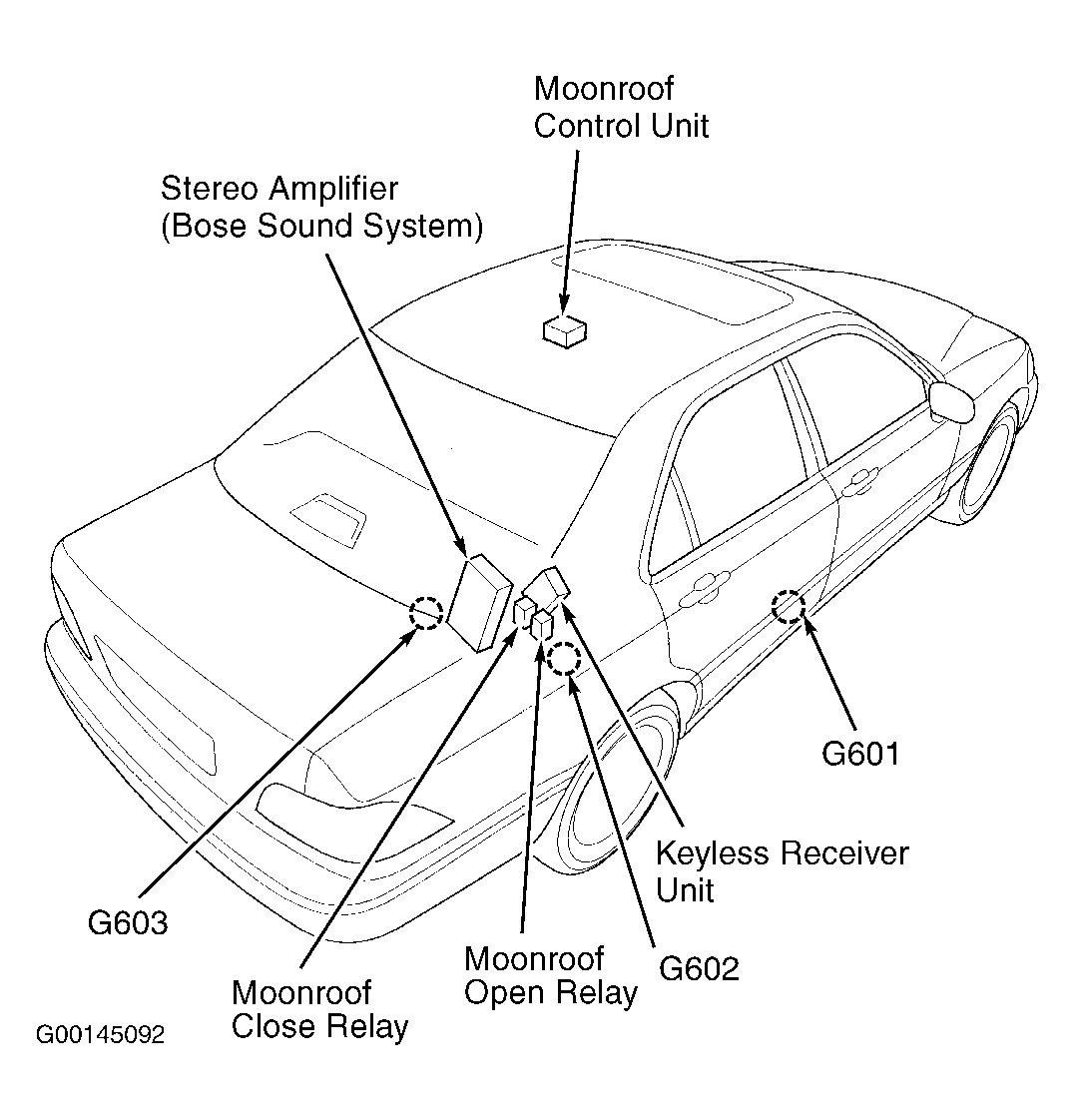

Fig 10: Right Rear Of Vehicle

Fig 11: Left Rear Of Vehicle
