Component Locations

For component locations, see Fig 1 -Fig 6 . For connector identification and locations, see Fig 7 -Fig 20 .

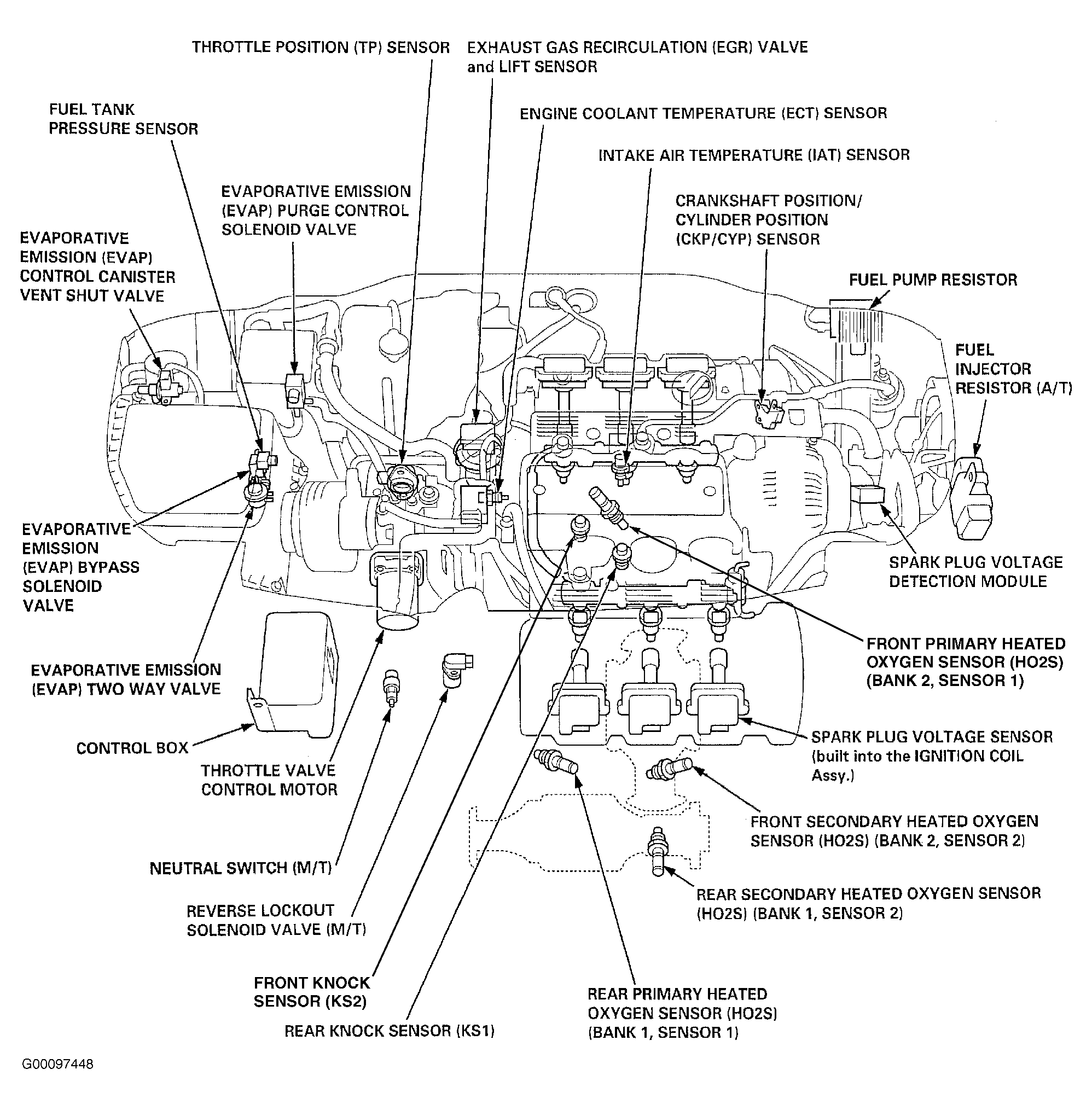

Fig 1: Locating PGM-FI Components (1 Of 6)

G00097448

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating PGM-FI Components (2 Of 6)

G00097422

Courtesy of AMERICAN HONDA MOTOR CO., INC.

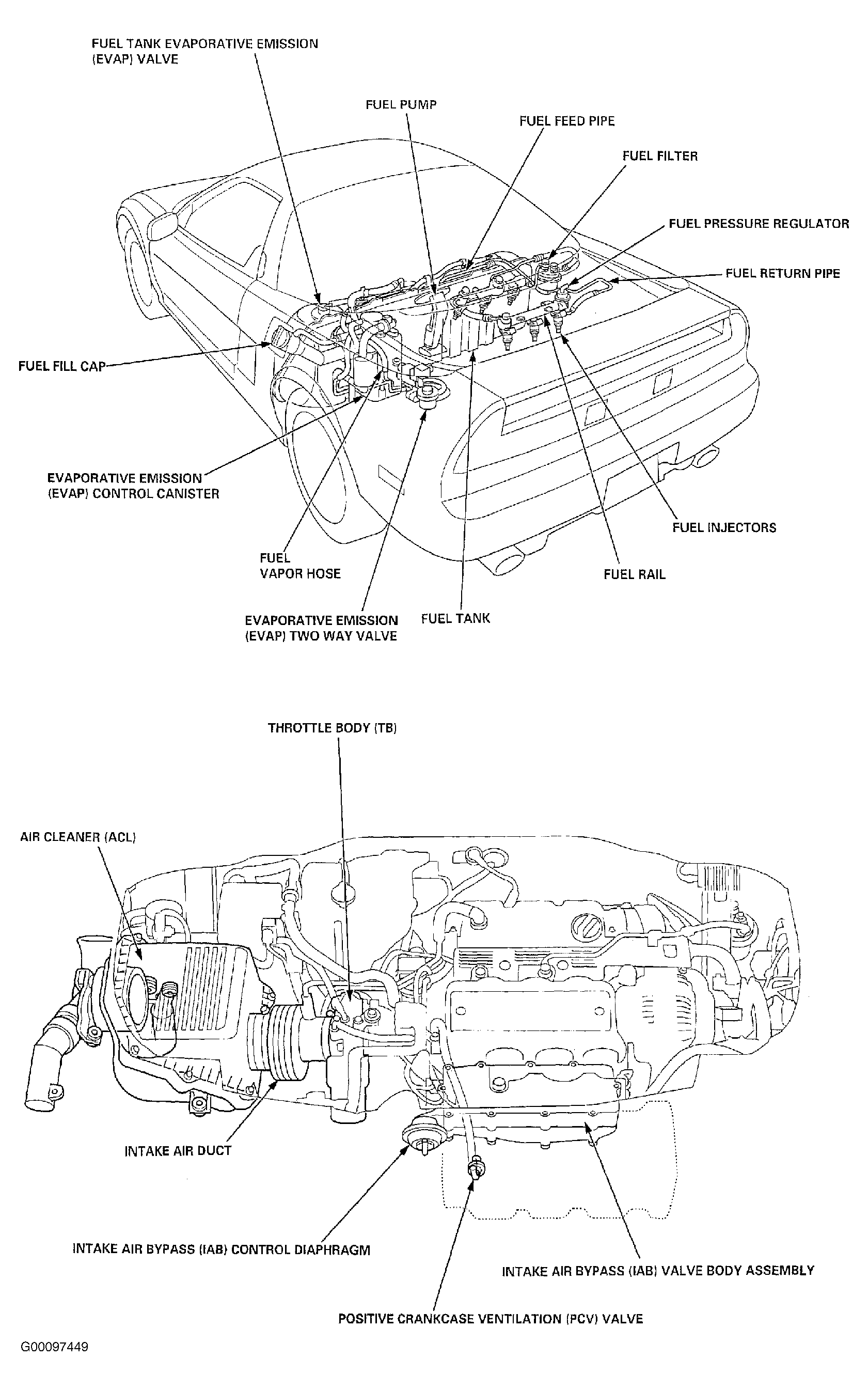

Fig 3: Locating PGM-FI Components (3 Of 6)

G00097449

Courtesy of AMERICAN HONDA MOTOR CO., INC.

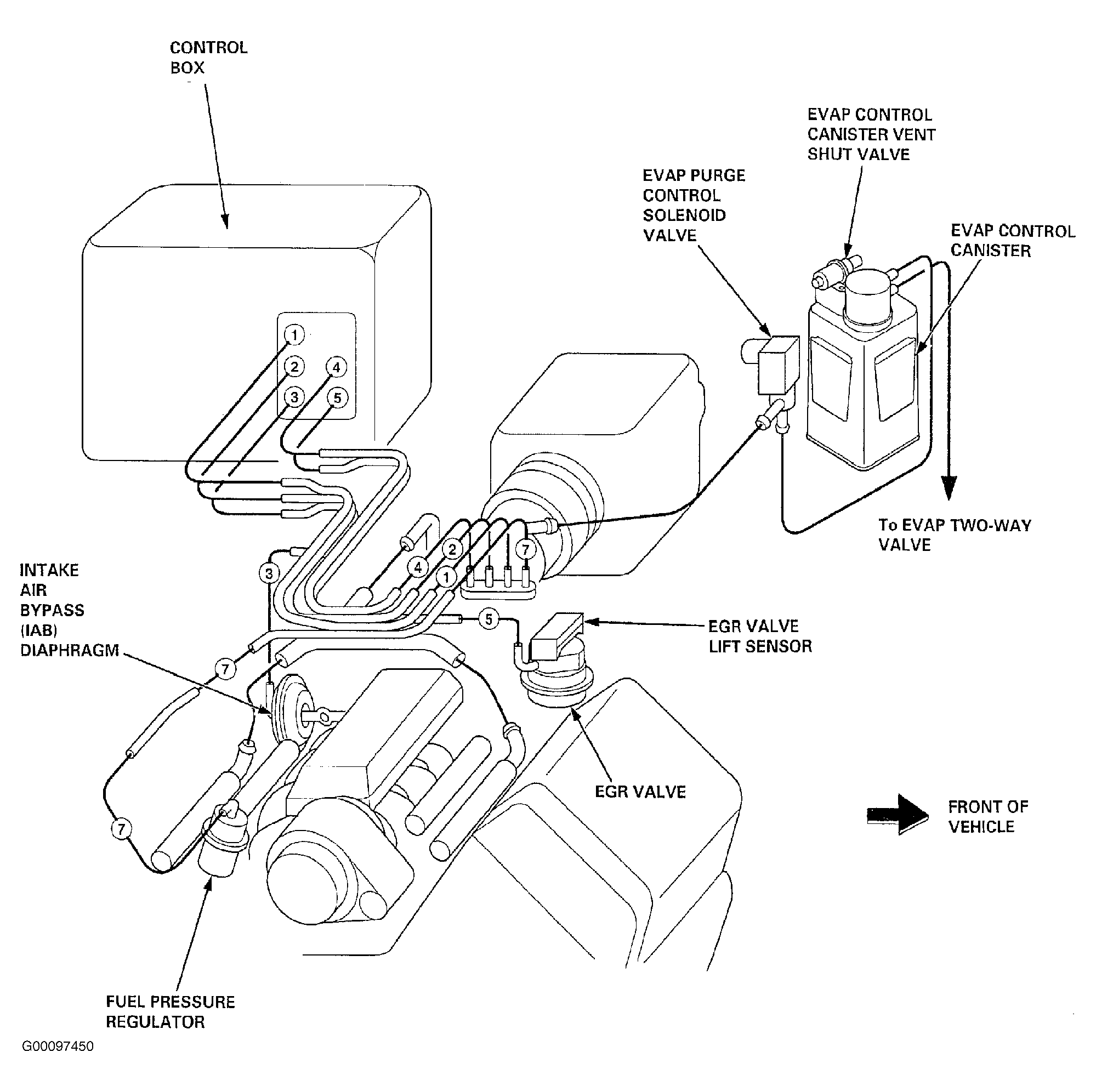

Fig 4: Locating PGM-FI Components (4 Of 6)

G00097450

Courtesy of AMERICAN HONDA MOTOR CO., INC.

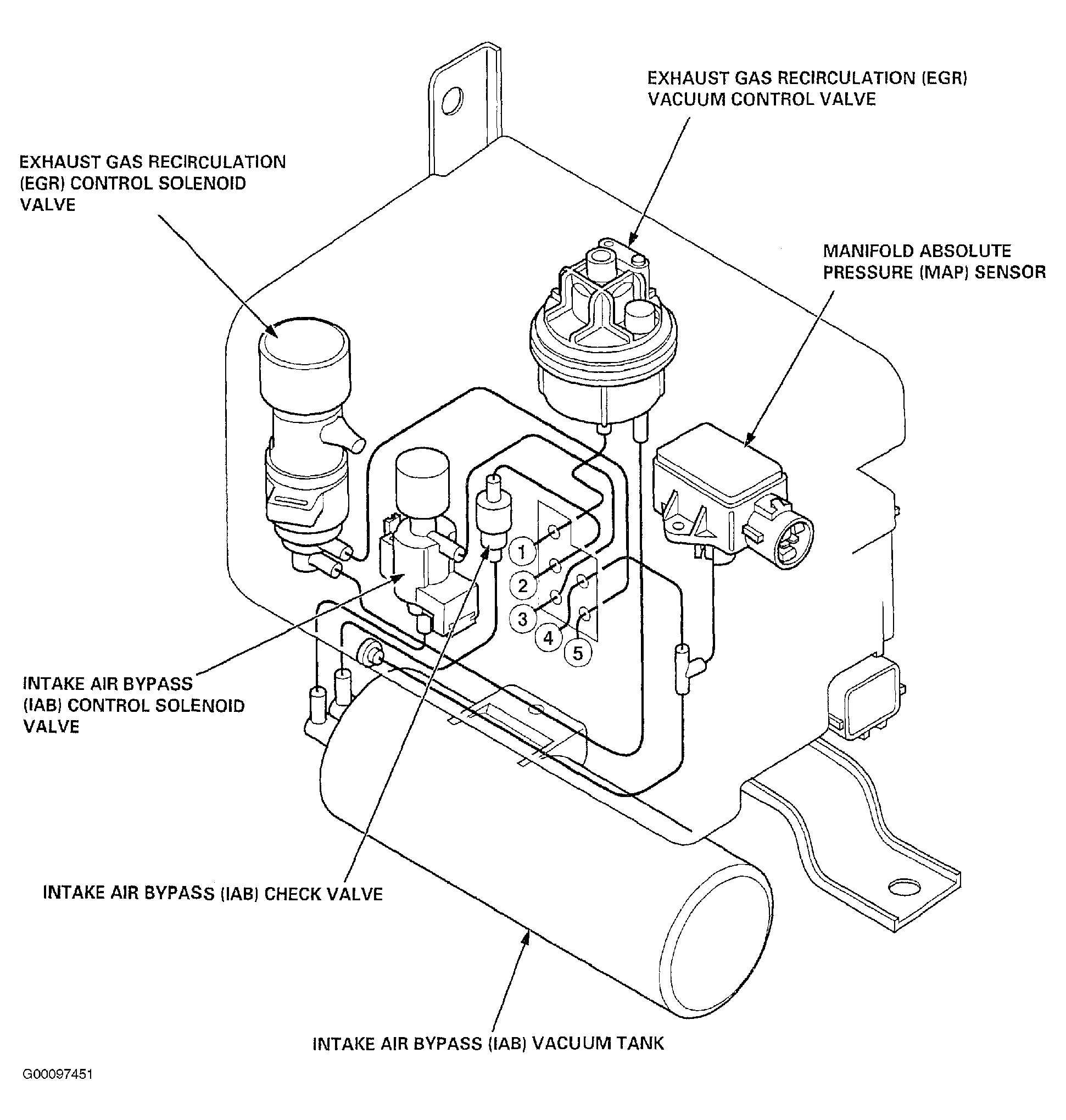

Fig 5: Locating PGM-FI Components (5 Of 6)

G00097451

Courtesy of AMERICAN HONDA MOTOR CO., INC.

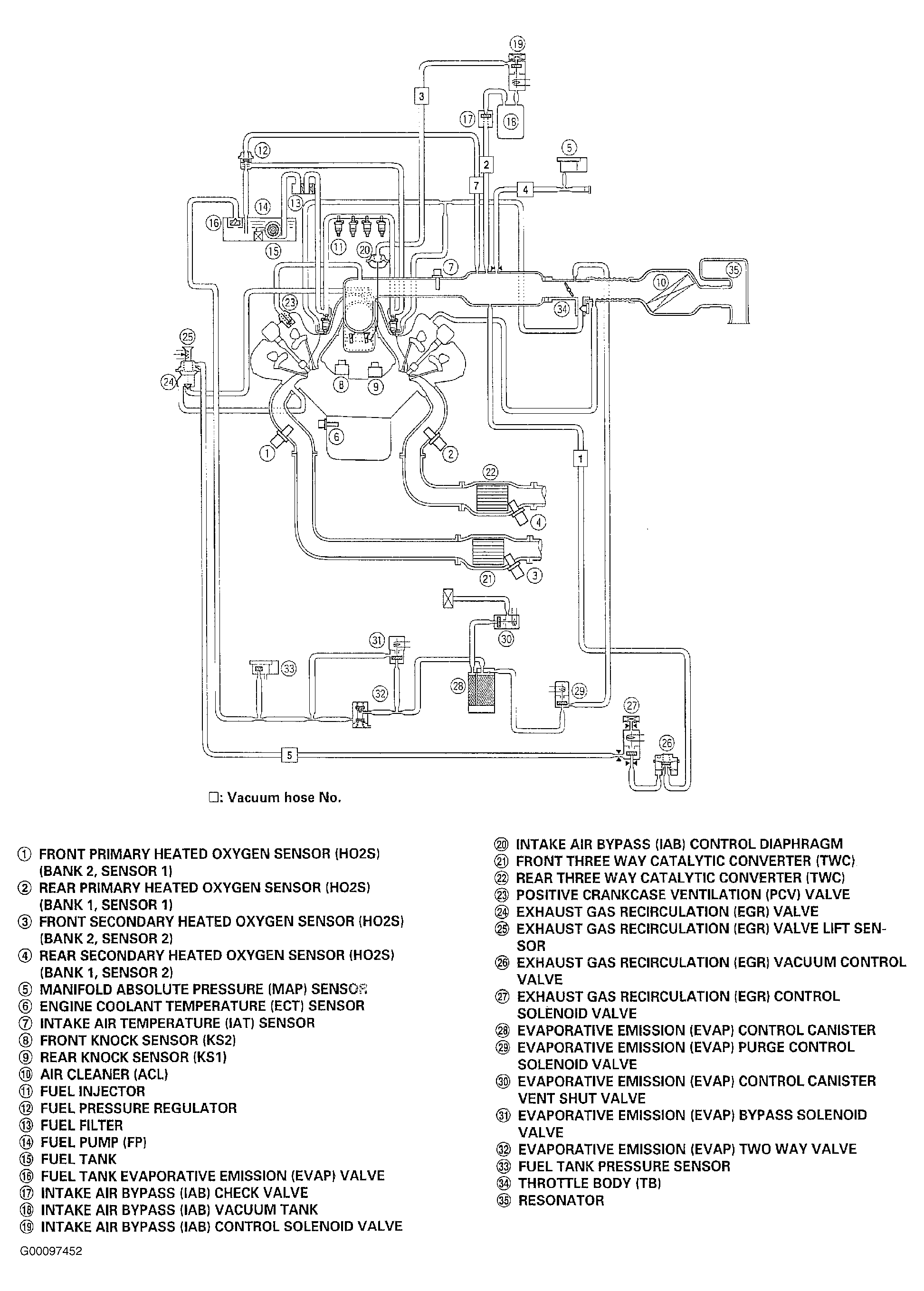

Fig 6: Locating PGM-FI Components (6 Of 6)

G00097452

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Identifying & Locating Connectors - Right Side Of Engine (1 Of 2)

G00109776

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Identifying & Locating Connectors - Right Side Of Engine (2 Of 2)

G00109777

Courtesy of AMERICAN HONDA MOTOR CO., INC.

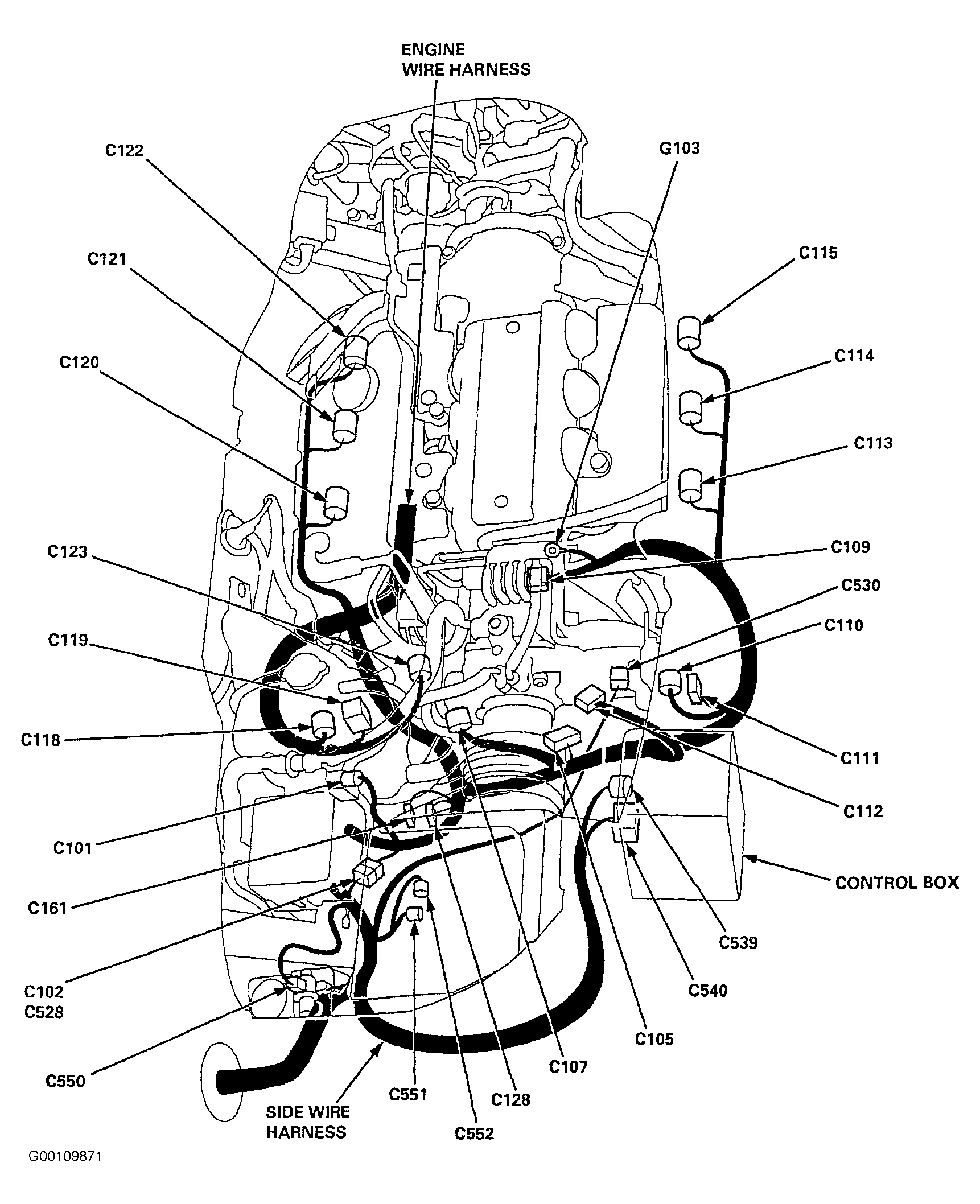

Fig 9: Identifying & Locating Connectors - Left Side Of Engine (1 Of 2)

G00109871

Courtesy of AMERICAN HONDA MOTOR CO., INC.

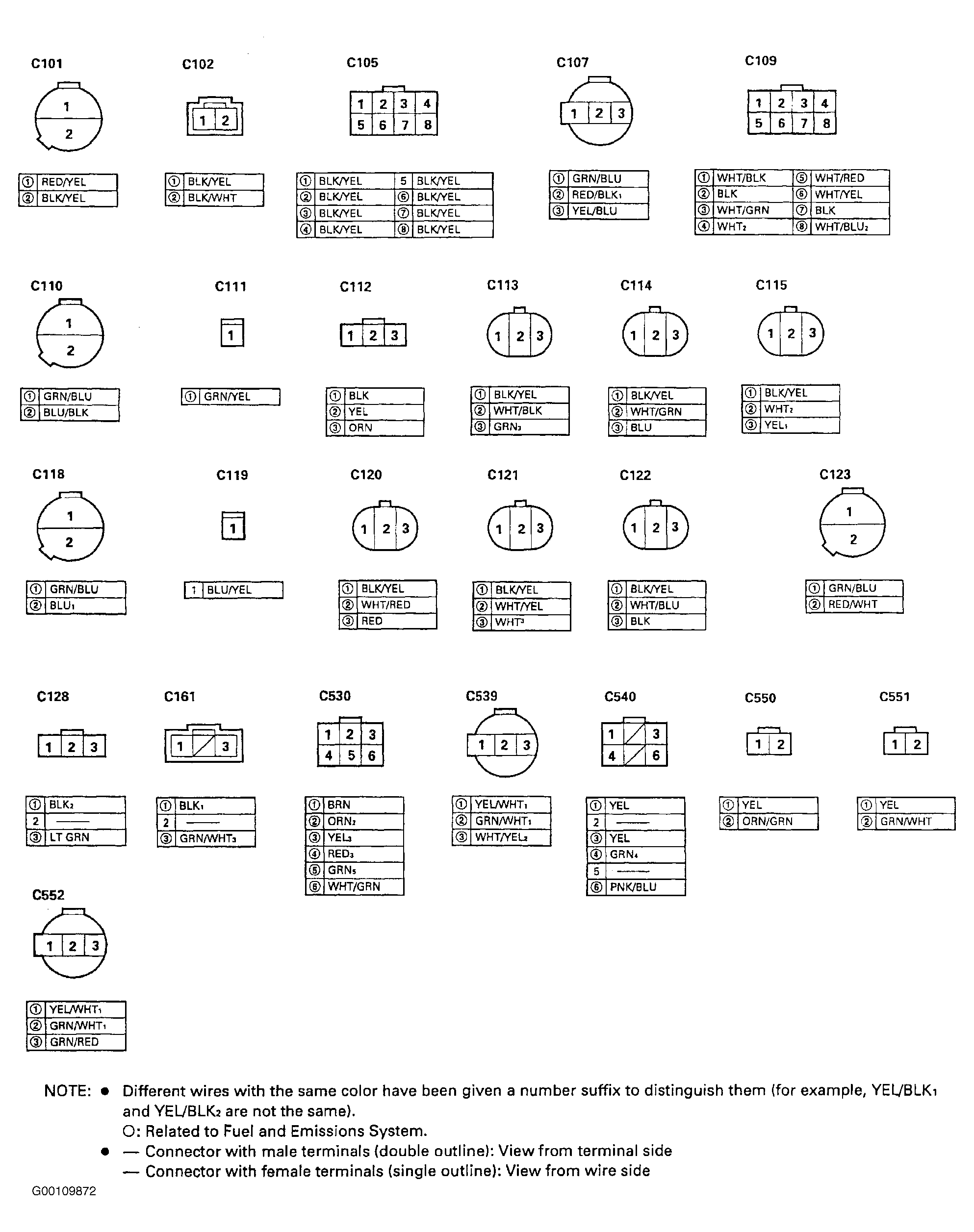

Fig 10: Identifying & Locating Connectors - Left Side Of Engine (2 Of 2)

G00109872

Courtesy of AMERICAN HONDA MOTOR CO., INC.

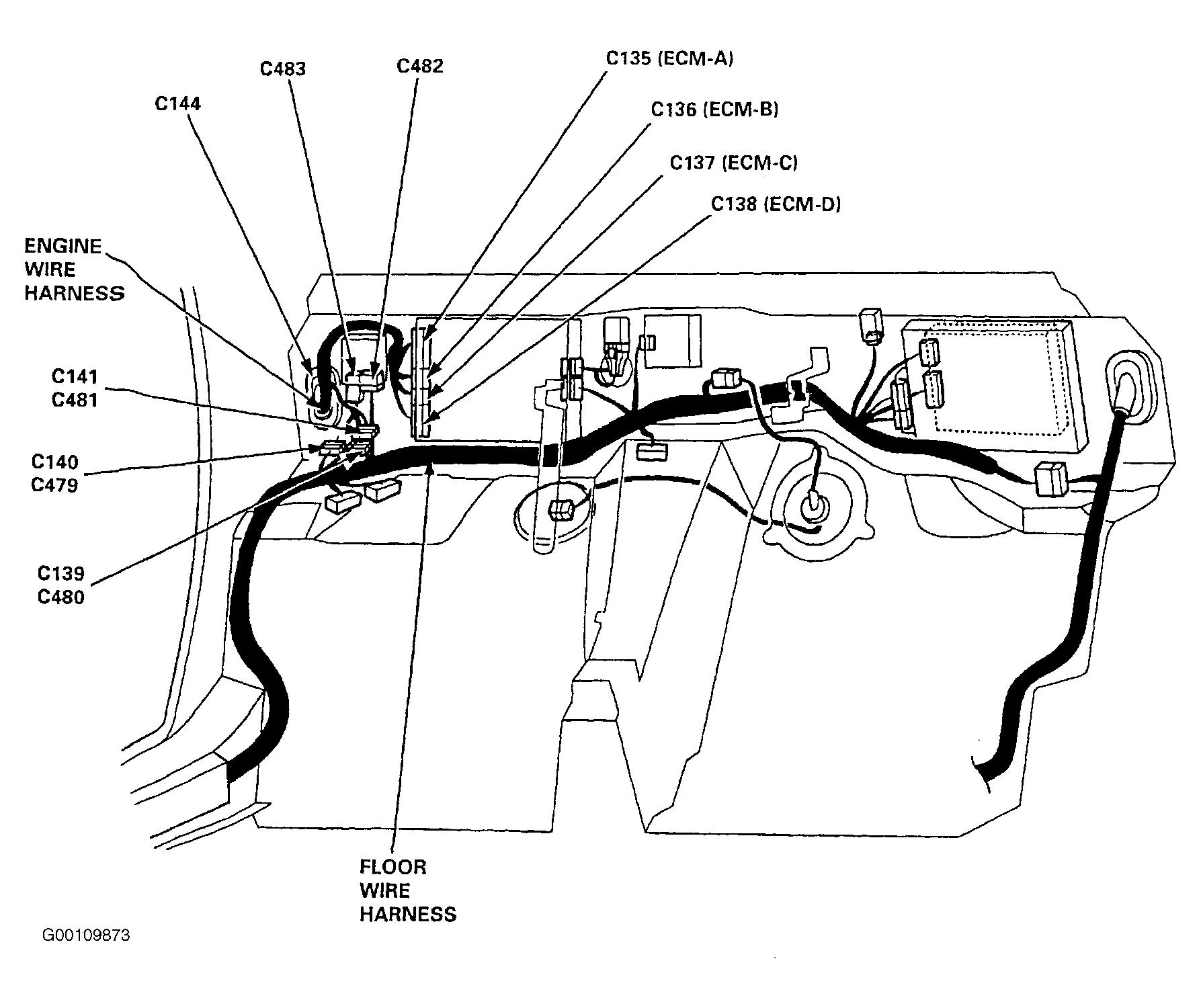

Fig 11: Identifying & Locating Connectors - Under Bulkhead Panels Behind Seats (1 Of 6)

G00109873

Courtesy of AMERICAN HONDA MOTOR CO., INC.

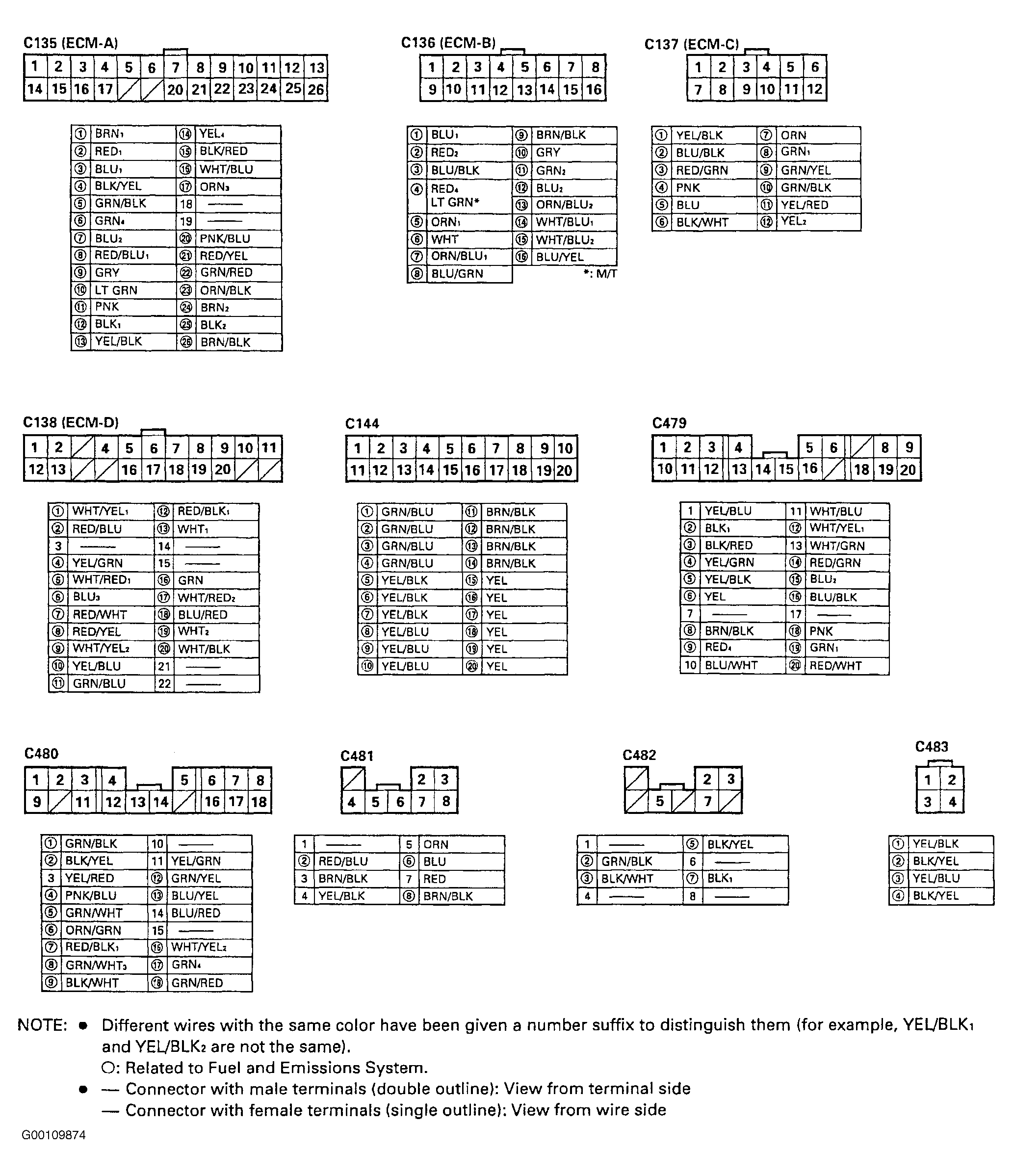

Fig 12: Identifying & Locating Connectors - Under Bulkhead Panels Behind Seats (2 Of 6)

G00109874

Courtesy of AMERICAN HONDA MOTOR CO., INC.

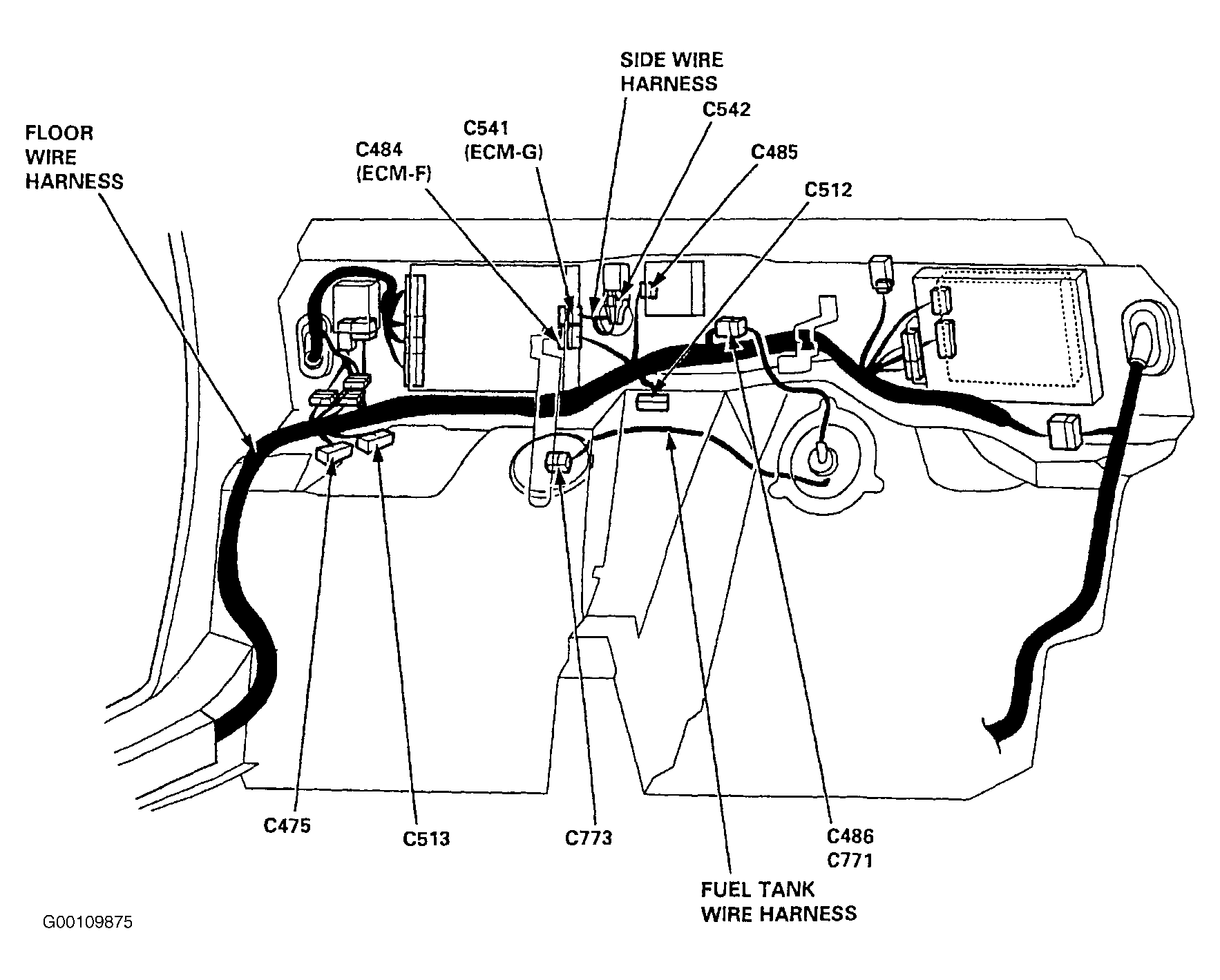

Fig 13: Identifying & Locating Connectors - Under Bulkhead Panels Behind Seats (3 Of 6)

G00109875

Courtesy of AMERICAN HONDA MOTOR CO., INC.

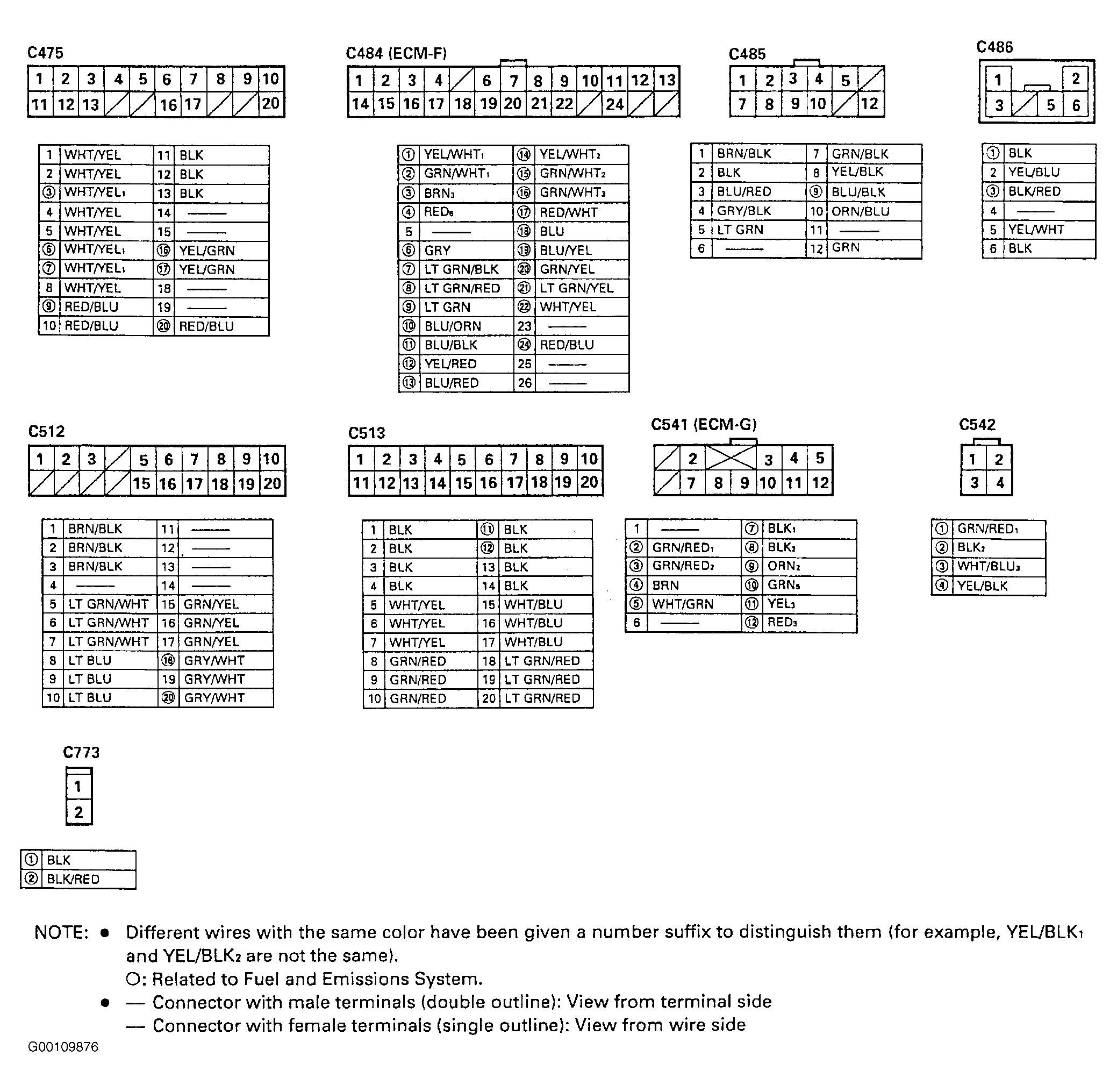

Fig 14: Identifying & Locating Connectors - Under Bulkhead Panels Behind Seats (4 Of 6)

G00109876

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Identifying & Locating Connectors - Under Bulkhead Panels Behind Seats (5 Of 6)

G00109784

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Identifying & Locating Connectors - Under Bulkhead Panels Behind Seats (6 Of 6)

G00109785

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Identifying & Locating Connectors - Front Compartment & Under Dash (1 Of 4)

G00109786

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Identifying & Locating Connectors - Front Compartment & Under Dash (2 Of 4)

G00109787

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Identifying & Locating Connectors - Front Compartment & Under Dash (2 Of 4)

G00109788

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Identifying & Locating Connectors - Front Compartment & Under Dash (2 Of 4)

G00109789

Courtesy of AMERICAN HONDA MOTOR CO., INC.
