Abs Modulator Unit: Installation

To install, reverse removal procedure. See TORQUE SPECIFICATIONS. Bleed brake system. See BLEEDING BRAKE SYSTEM  . Start engine and allow to idle a few minutes. Ensure ABS indicator light goes out and there are no brake fluid leaks. Stop engine and ensure brake fluid level in reservoir is filled to MAX level. Test drive vehicle to ensure ABS indicator light does not come on.

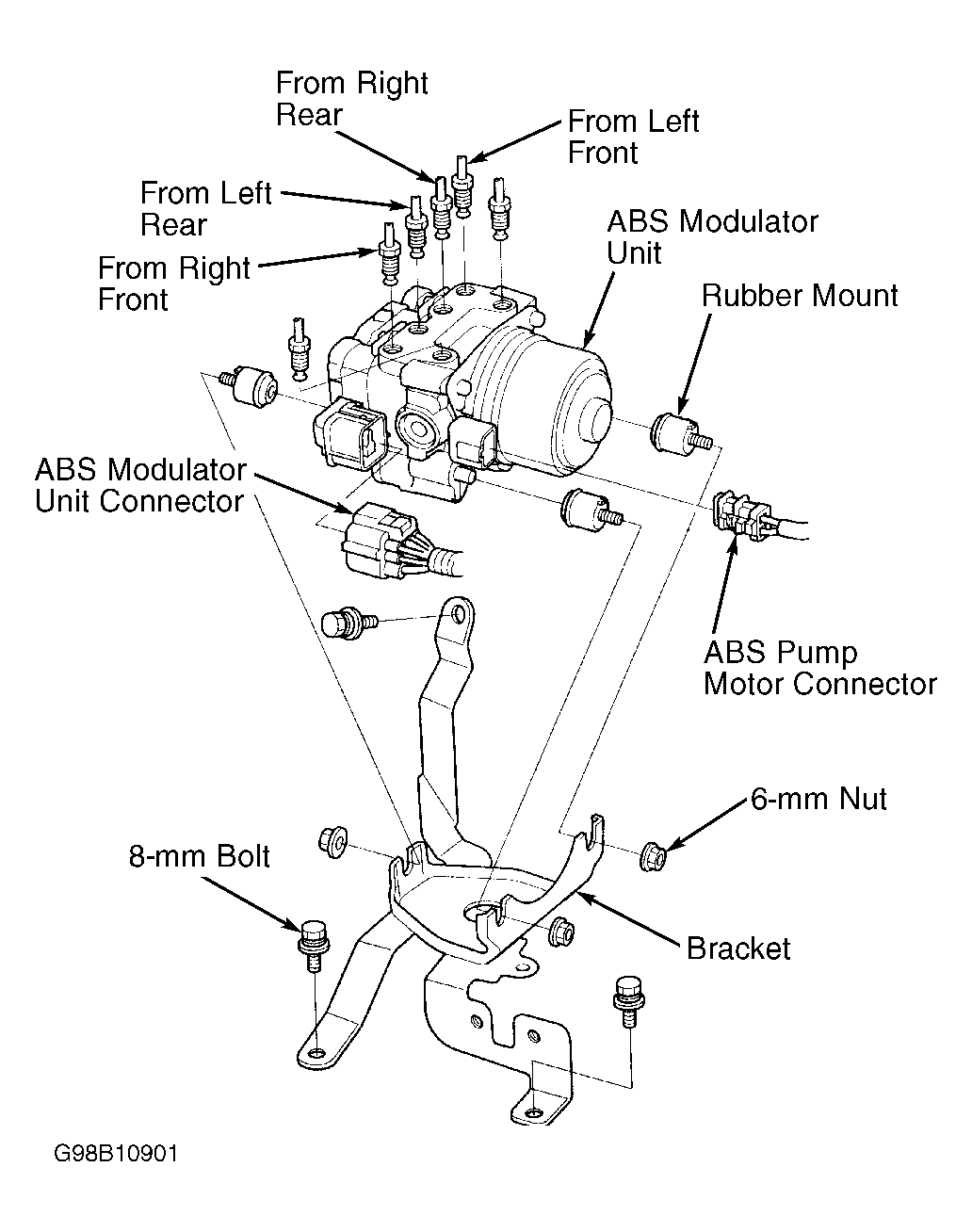

Fig 1: ABS Modulator Unit Connections & Mounting Points (2.3CL Shown, 3.0CL Is Similar)
G98B10901Courtesy of AMERICAN HONDA MOTOR CO., INC.
