Retrieving Trouble Codes
NOTE:
Trouble codes can be retrieved with Honda PGM Tester or with SCS Service Connector (07PAZ-0010100).

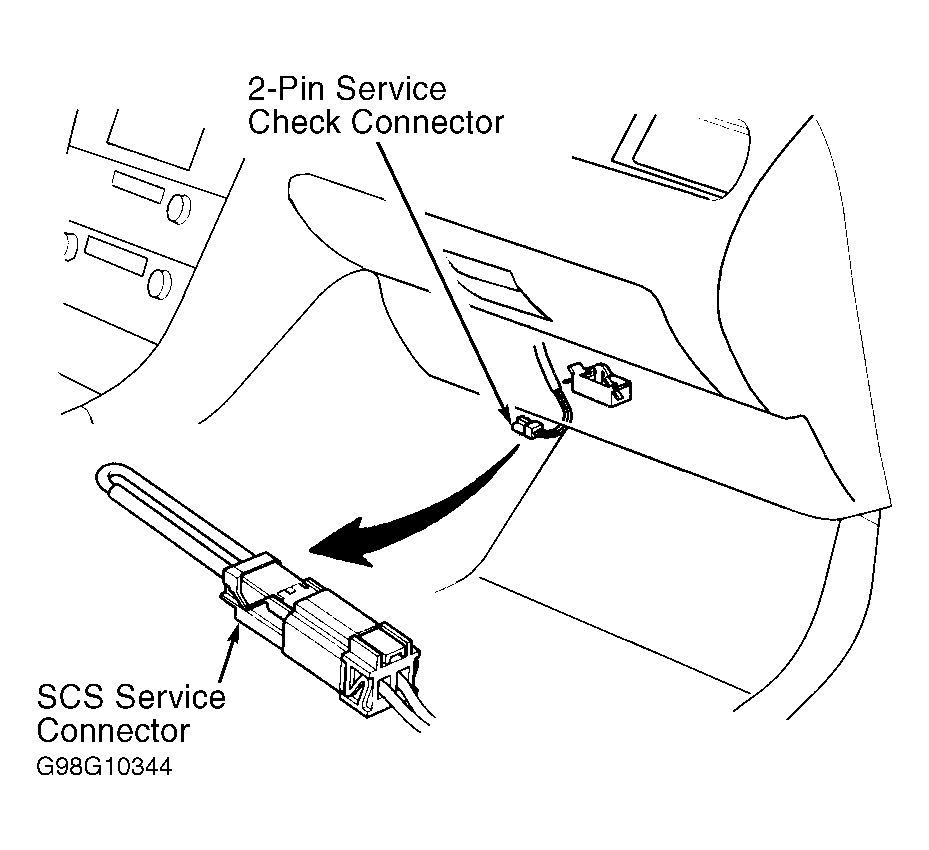

- Connect SCS Service Connector (07PAZ-0010100) or Honda PGM Tester to 2-pin service check connector located under glove box. See Fig 1 . Without depressing brake pedal, turn ignition switch to ON position (without starting engine). ABS indicator light comes on for 2-second bulb check. Record blinking ABS indicator light sequence. See Figure .
- After ignition is turned on, ABS indicator light will turn on for 2 seconds, then pause for 4 seconds before blinking first DTC. First code number indicates main code and second code number indicates sub code. To recheck sequence, cycle ignition off and then on again. After DTCs have been retrieved, conduct appropriate test procedures. If light does not flash DTC(s), go to ABS INDICATOR LIGHT REMAINS ON, BUT DOES NOT FLASH TROUBLE CODES.
