Hazard Warning Switch Test

Check for continuity between specified switch terminals with switch in indicated position. See HAZARD WARNING SWITCH CONTINUITY TEST table. See Fig 1 . If continuity is not as specified, replace hazard warning switch. If continuity is as specified, check turn signal/hazard relay input. See TURN SIGNAL/HAZARD RELAY INPUT TEST under SYSTEM TESTS.

HAZARD WARNING SWITCH CONTINUITY TEST

Switch Position	Continuity Between Terminals No.
Off	2 & 9; 7 & 8
On	1, 2, 5 & 6; 4 & 9; 7 & 8

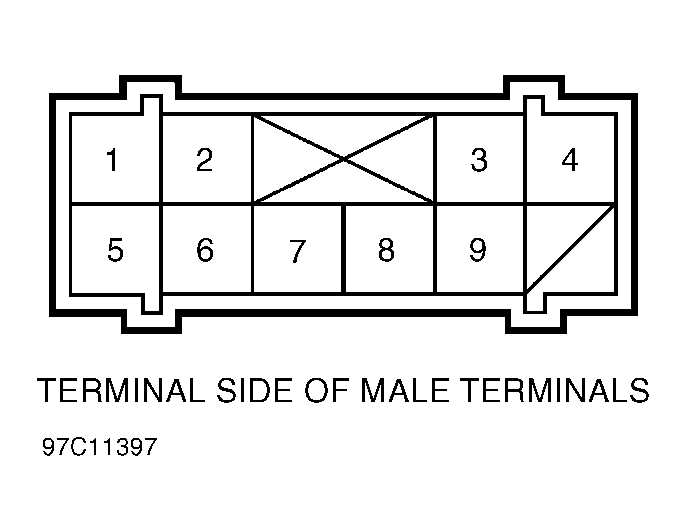

Fig 1: Identifying Hazard Warning Switch Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
