Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

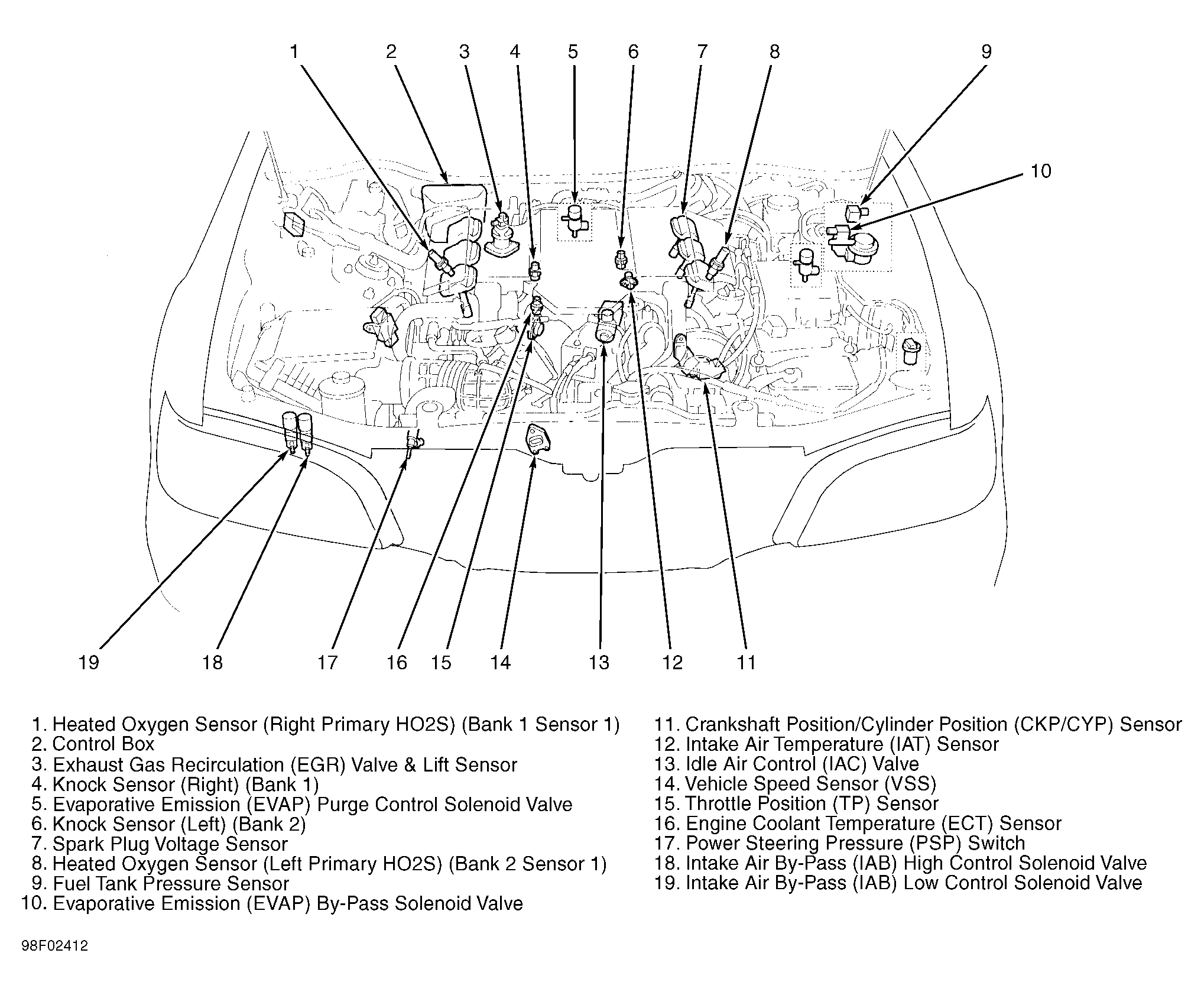

Fig 1: Engine Compartment

Fig 2: Engine Compartment

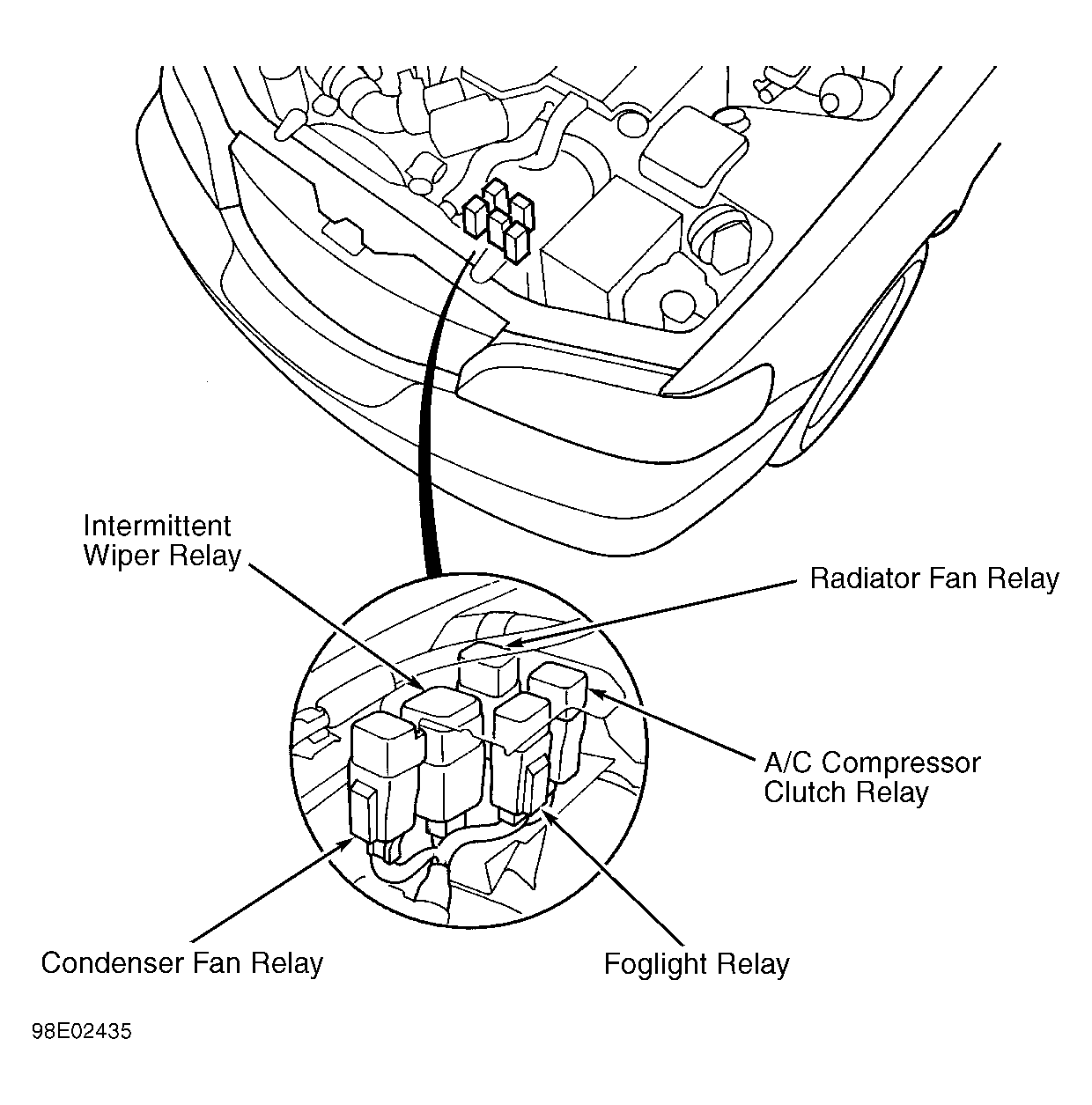

Fig 3: Front Of Engine Compartment

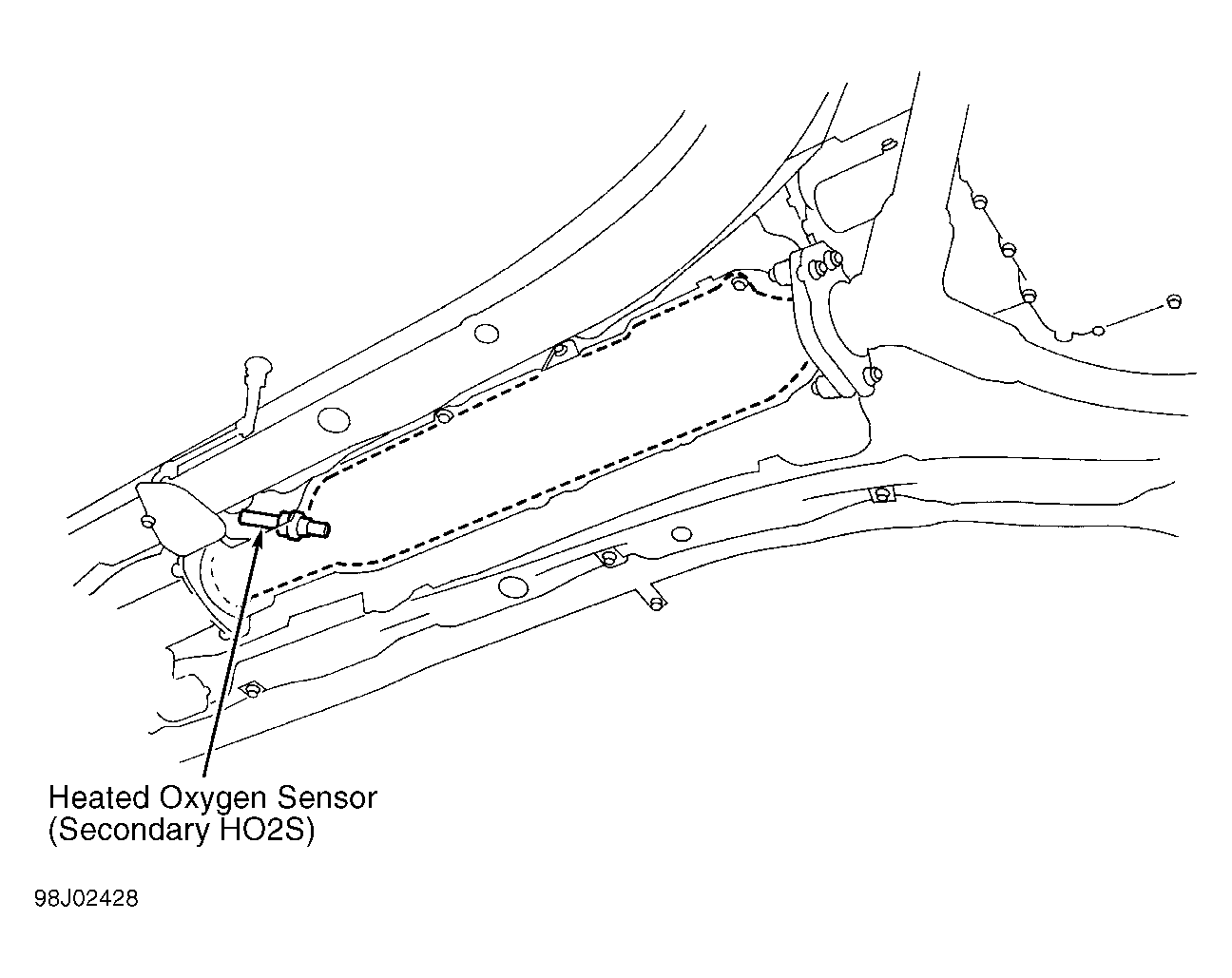

Fig 4: Underside Of Vehicle

Fig 5: Emission Control Components

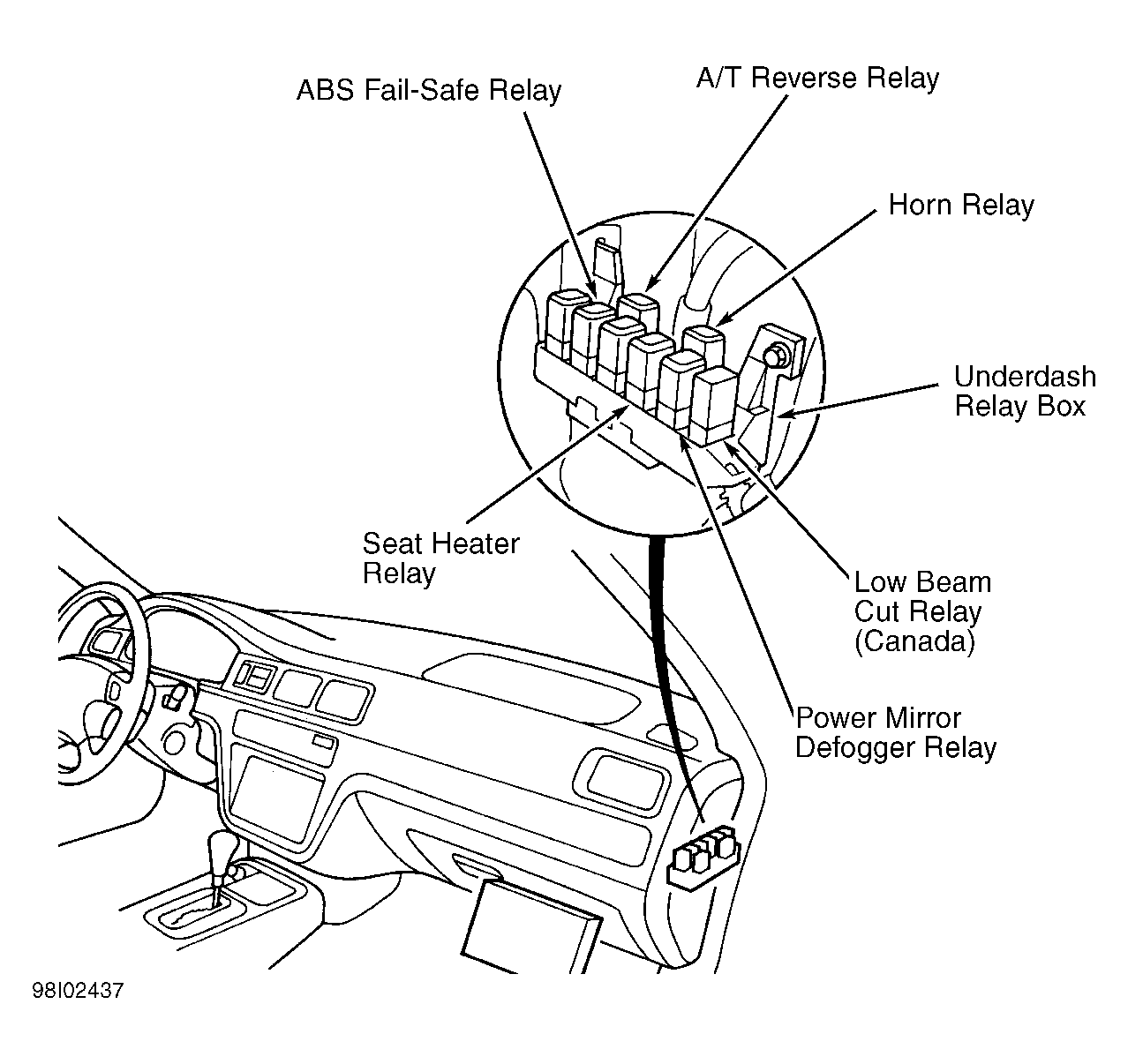

Fig 6: Right Side Of Dash

Fig 7: Dash

Fig 8: Left Side Of Dash

Fig 9: Dash

Fig 10: Dash

Fig 11: Dash
