Connector Identification

NOTE: For connector terminal identification, refer to appropriate illustration. See Fig 1 and Fig 2 .
Fig 1: Identifying Data Link Connector (DLC) Connector Terminals
G95A33274Courtesy of AMERICAN HONDA MOTOR CO., INC.

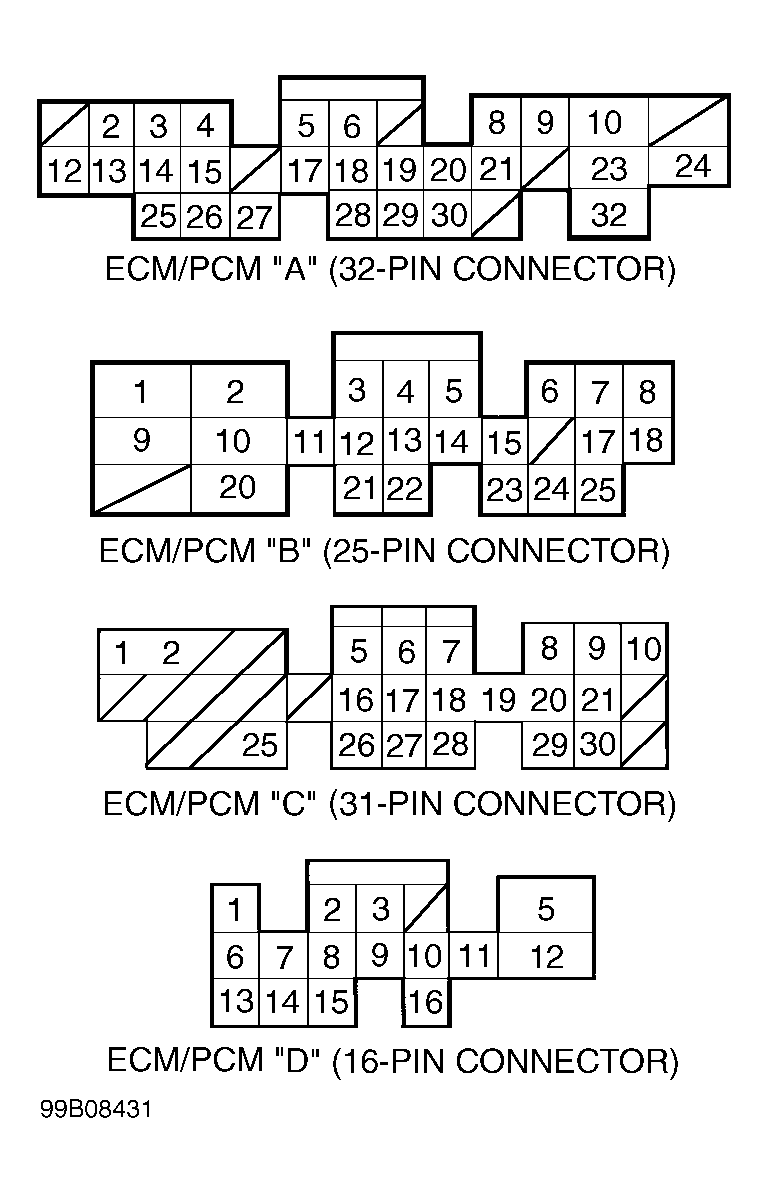

Fig 2: PCM Harness Connector Terminal Identification
G99B08431Courtesy of AMERICAN HONDA MOTOR CO., INC.
