Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

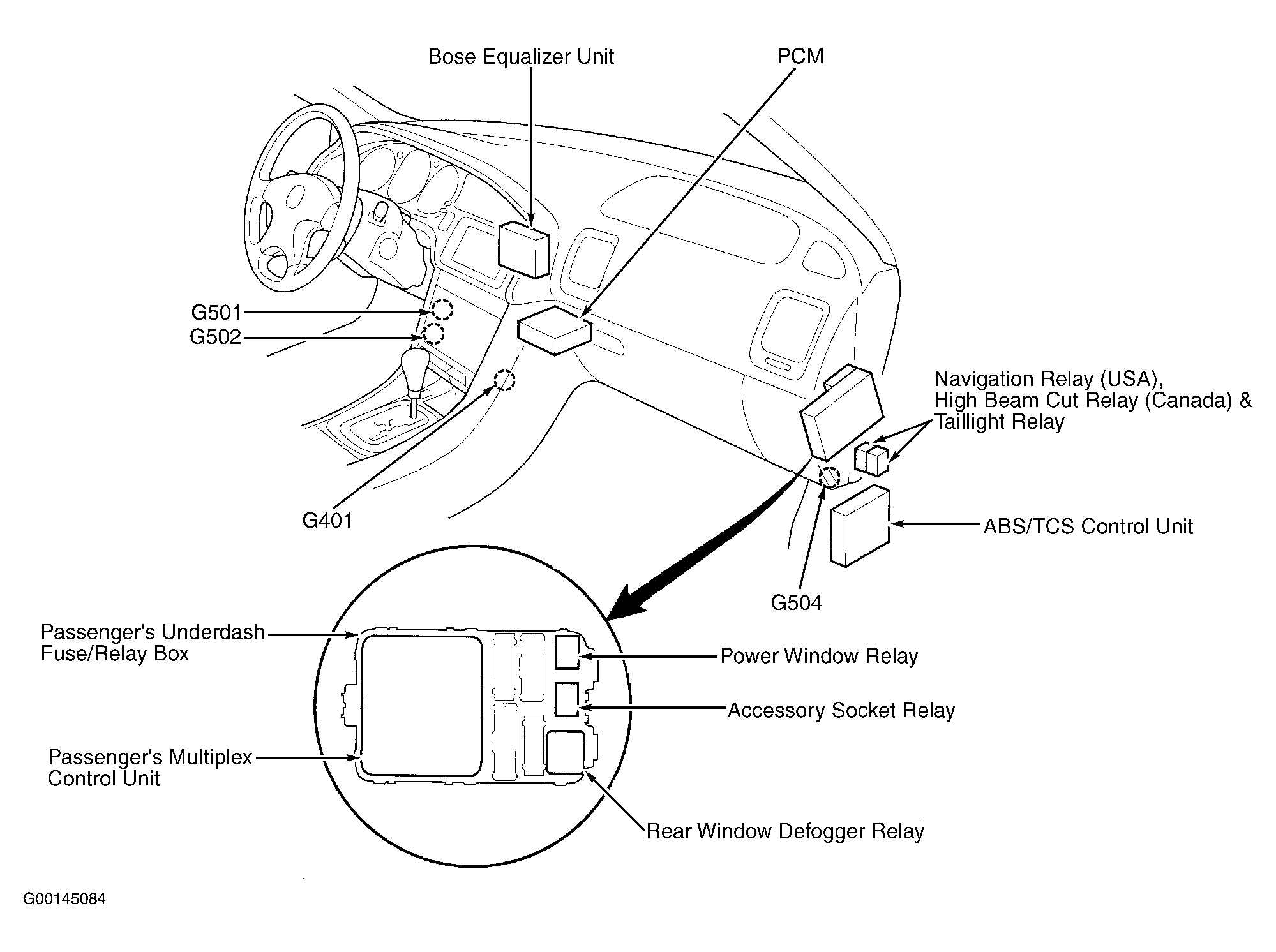

| ABS/TCS Control Unit | Behind right kick panel. See Figure . |
| Climate Control Unit | On center of dash. See Figure . |
| Cruise Control Unit | Behind left side of dash. See Figure . |
| Door Multiplex Control Unit | In driver's door. |
| Driver's Multiplex Control Unit | Behind left kick panel. See Figure . |
| DRL Control Unit (Canada) | Behind left side of dash. See Figure . |
| ELD Unit | In underhood fuse/relay box. See Figure . |
| Immobilizer Receiver Unit | On right side of steering column. |
| Passenger's Multiplex Control Unit | On passenger's underdash fuse/relay box. See Figure . |
| PCM | Behind center of dash. See Figure . |
| Radiator Fan Control Module | Behind center of dash. See Figure . |
| SRS Unit | Under front of center console. See Figure . |
