Park Pin Switch Test

  1. Remove the console panel. See Console Panel.
  2. Disconnect the mode switch/park pin connector.

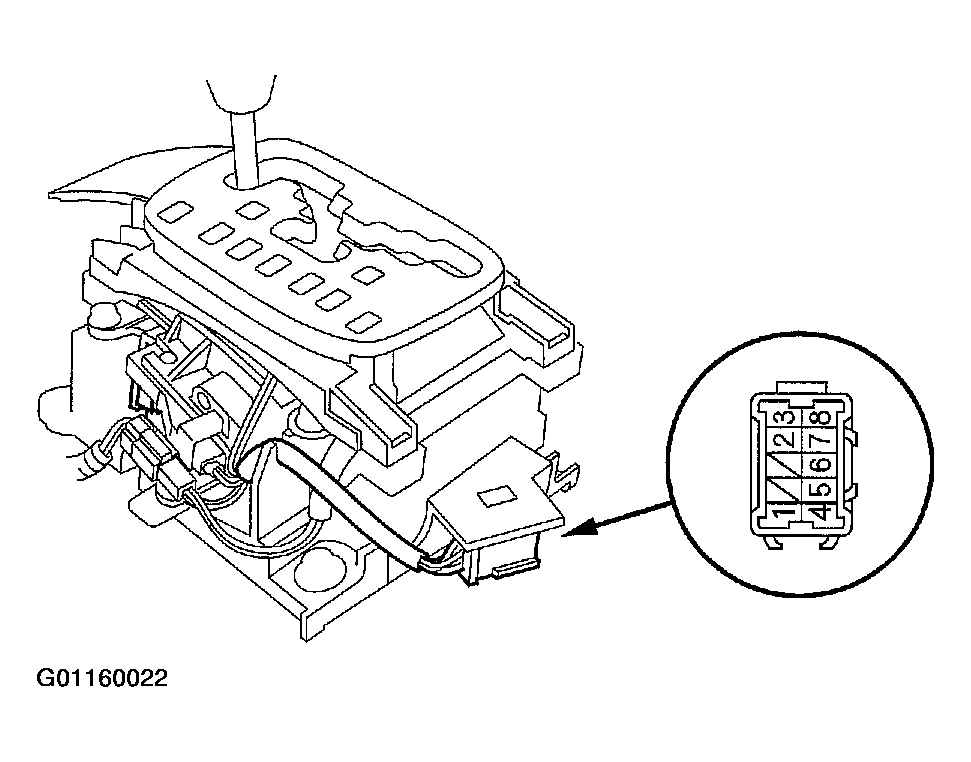

    Fig 1: Disconnecting Mode Switch/Park Pin Connector
    G01160022
  3. Shift the shift lever into the P  position, then check for continuity between the No. 3 and No. 8 terminals. There should be no continuity.
  4. Shift the shift lever out of the P  position, and check for continuity between the terminals in step  3 . There should be continuity.
  5. If the park pin switch is faulty, replace the detent bracket assembly.
    NOTE: The park pin switch is not available separately from the detent bracket.
