Shift Lock Solenoid Replacement

  1. Remove the console panel. See Console Panel.
  2. Disconnect the shift lock solenoid 2P connector.
  3. Pry the shift lock solenoid clamp (A) with a screwdriver, then remove the shift lock solenoid (B).

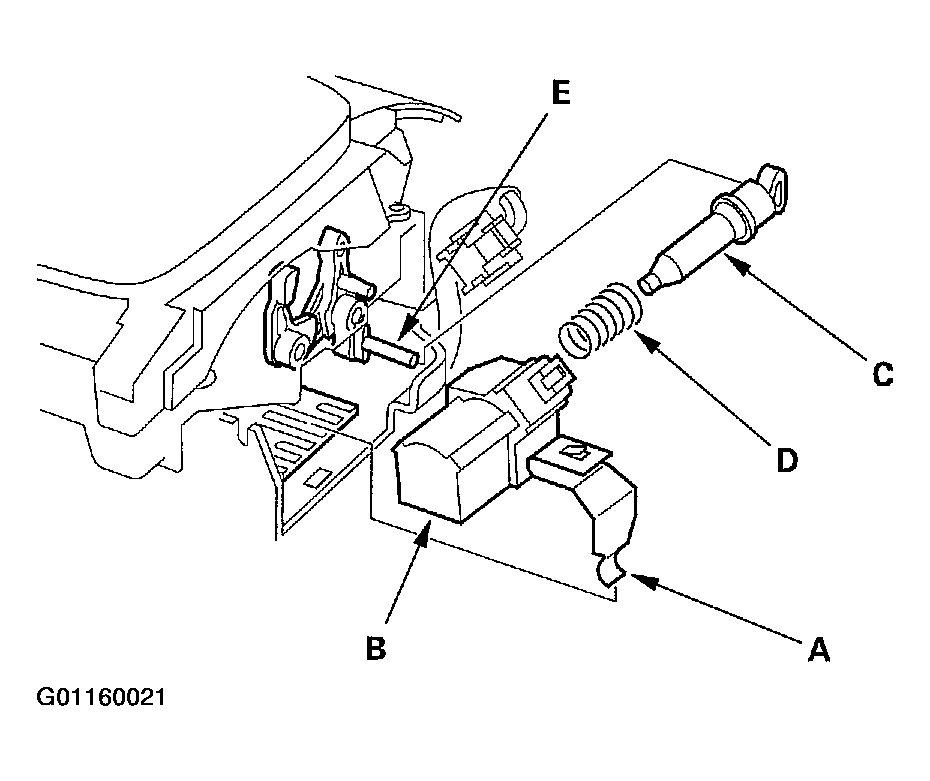

    Fig 1: Removing Shift Lock Solenoid
    G01160021
  4. Install the shift lock solenoid plunger (C) and plunger spring (D) in the new shift lock solenoid.
  5. Install the shift lock solenoid by aligning the joint of the shift lock solenoid with the tip of the shift lock stop (E).
  6. Secure the shift lock solenoid with the clamp, then connect the shift lock solenoid connector.
