Grade Logic Control System

How it works:

The PCM compares actual driving conditions with memorized driving conditions, based on the input from the countershaft speed sensor, the throttle position sensor, the engine coolant temperature sensor, the brake switch signal, and the shift level position signal, to control shifting while the vehicle is ascending or descending a slope, or reducing speed.

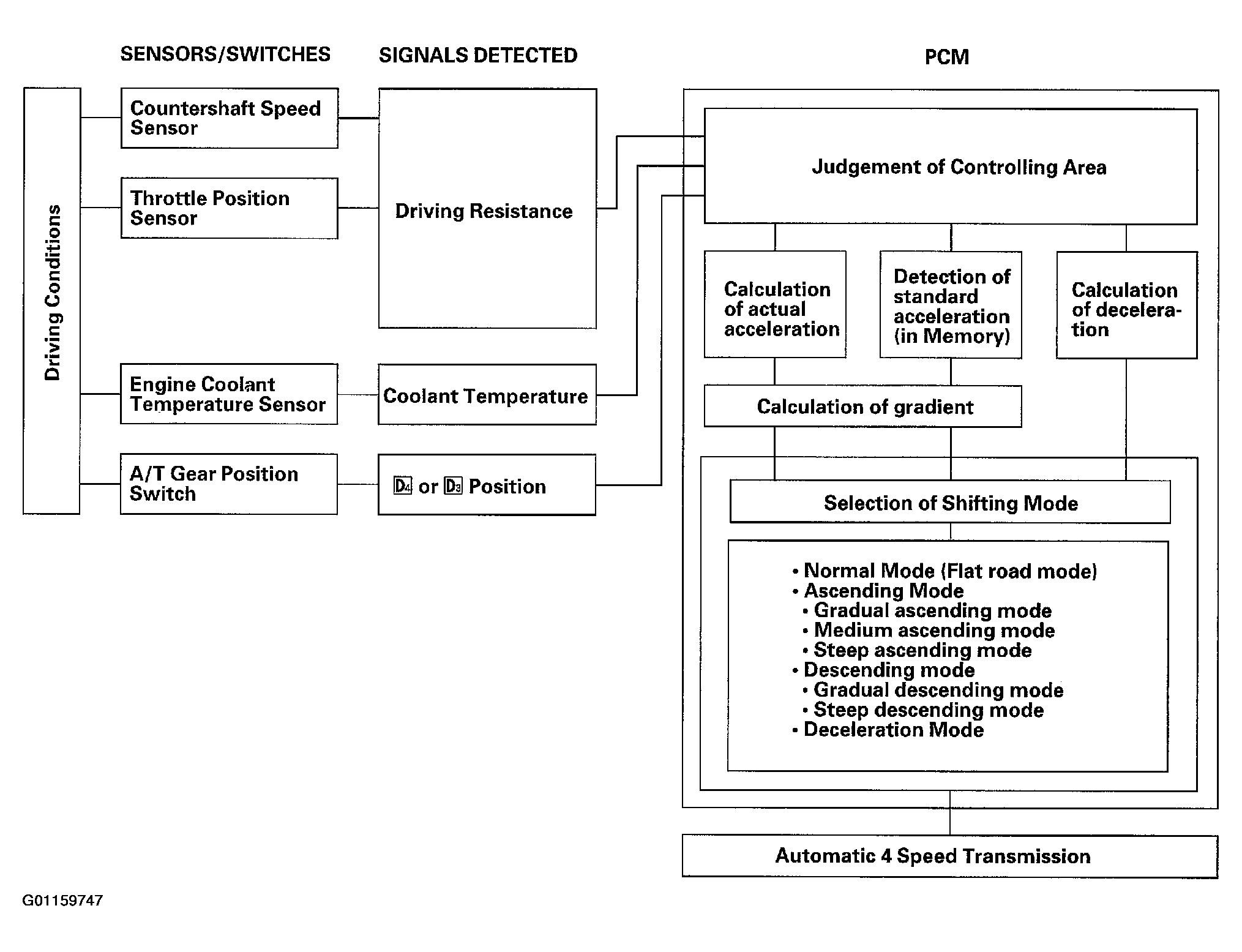

Fig 1: Grade Logic Control System Diagram
G01159747
