Engine Control Module/Powertrain Control Module (ECM/PCM)

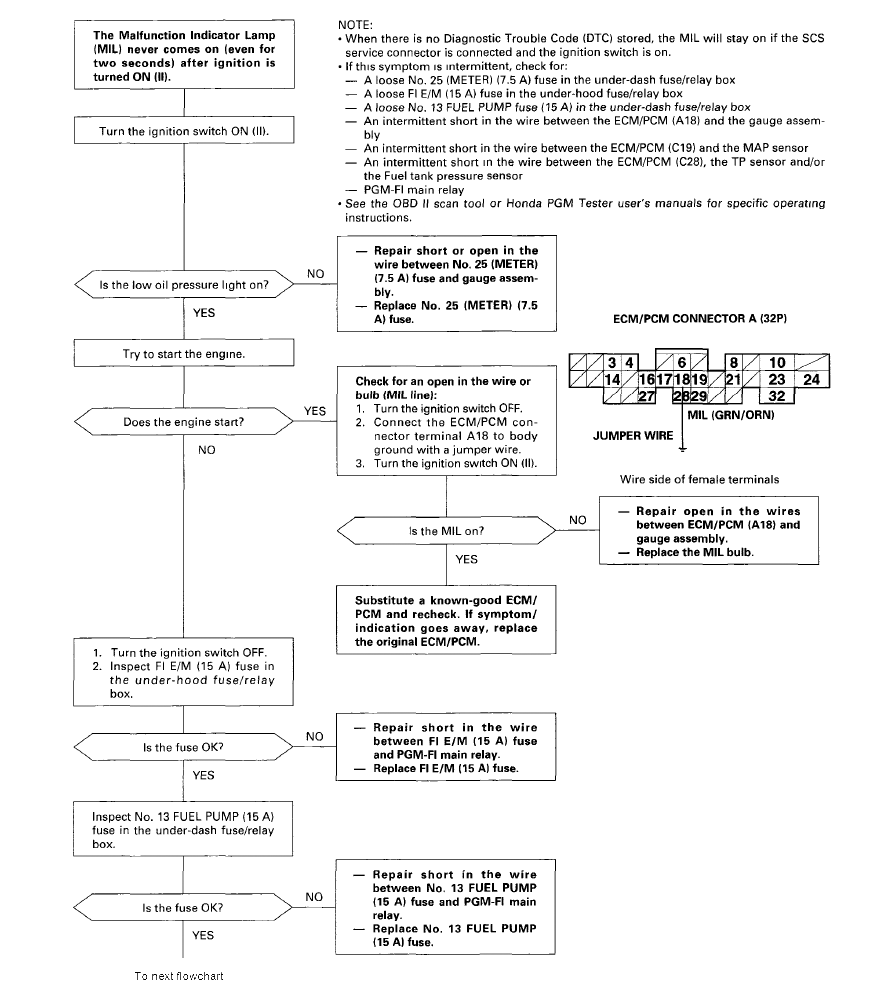

Fig 1: ECM/PCM Troubleshooting Flowchart (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

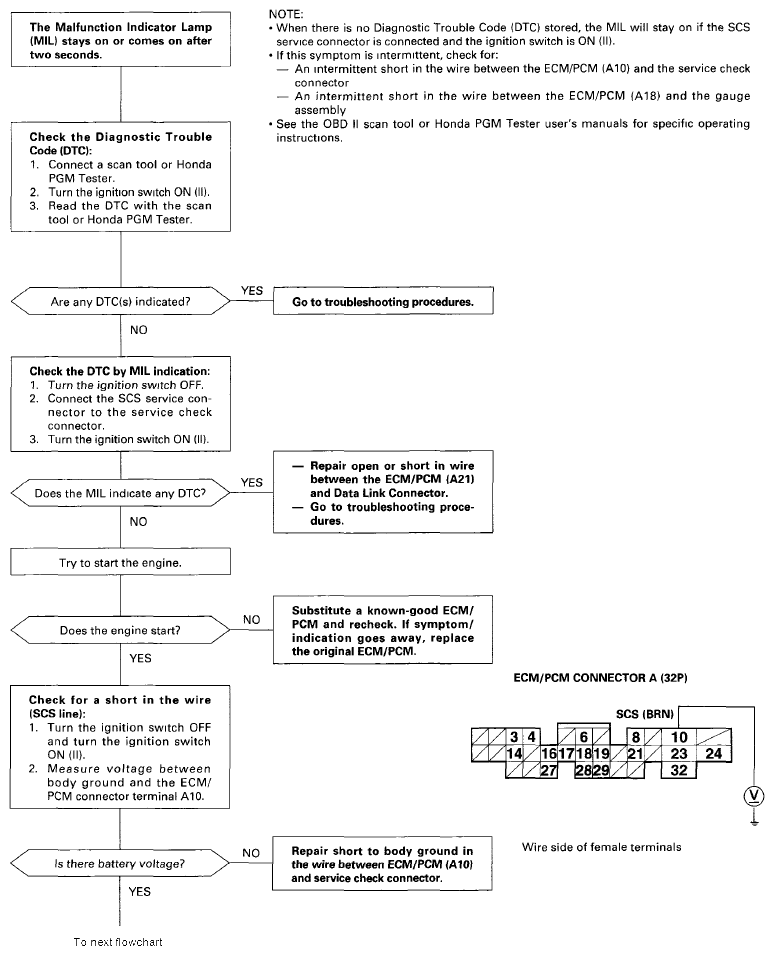

Fig 2: ECM/PCM Troubleshooting Flowchart (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

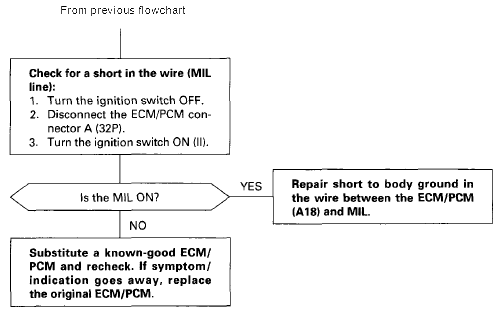

Fig 3: ECM/PCM Troubleshooting Flowchart (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

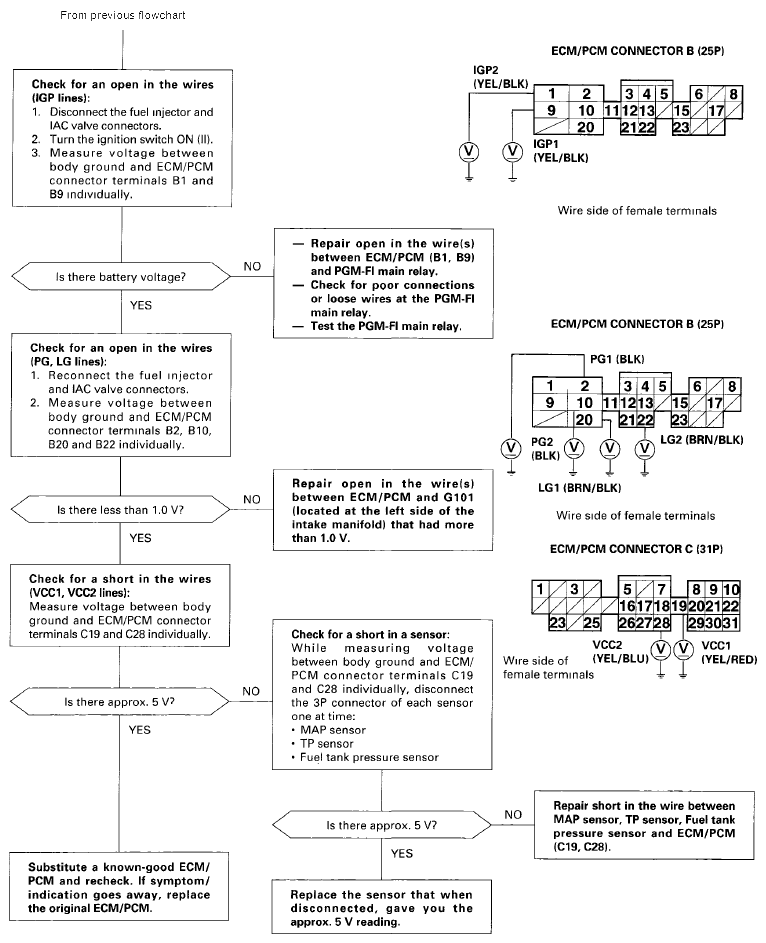

Fig 4: ECM/PCM Troubleshooting Flowchart (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
