Component Locations: Index

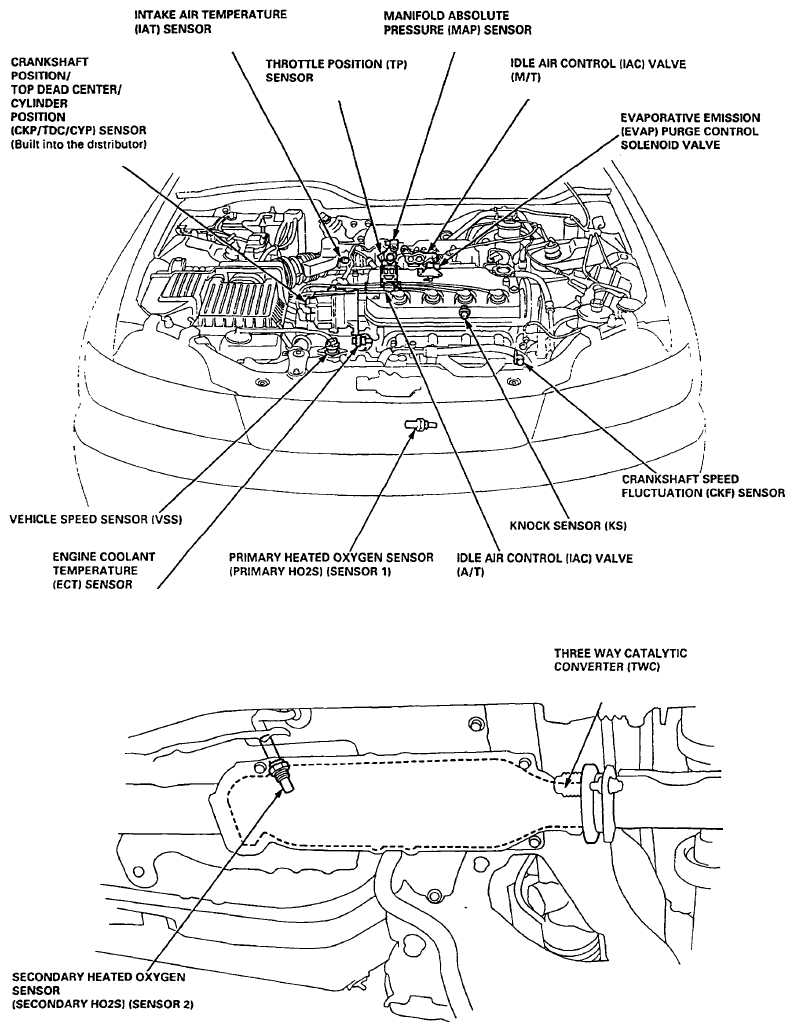

Fig 1: Identifying Vehicle Sensor Component Locations (1 Of 3)
G06289424Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Vehicle Sensor Component Locations (2 Of 3)
G06289425Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Identifying Vehicle Sensor Component Locations (3 Of 3)
G06289426Courtesy of AMERICAN HONDA MOTOR CO., INC.
