Distributor Replacement: Installation

NOTE: Before you install the distributor, bring the No. 1 piston to compression stroke TDC.
  1. Coat a new O-ring with engine oil, then install it.
  2. Slip the distributor into position.
    NOTE: The lug on the end of the distributor and its mating grooves in the camshaft end are both offset to eliminate the possibility of installing the distributor 180° out of time.
  3. Install the mounting bolts, and tighten them lightly.
  4. Connect the ignition wires to the distributor ignition (DI) cap as shown.

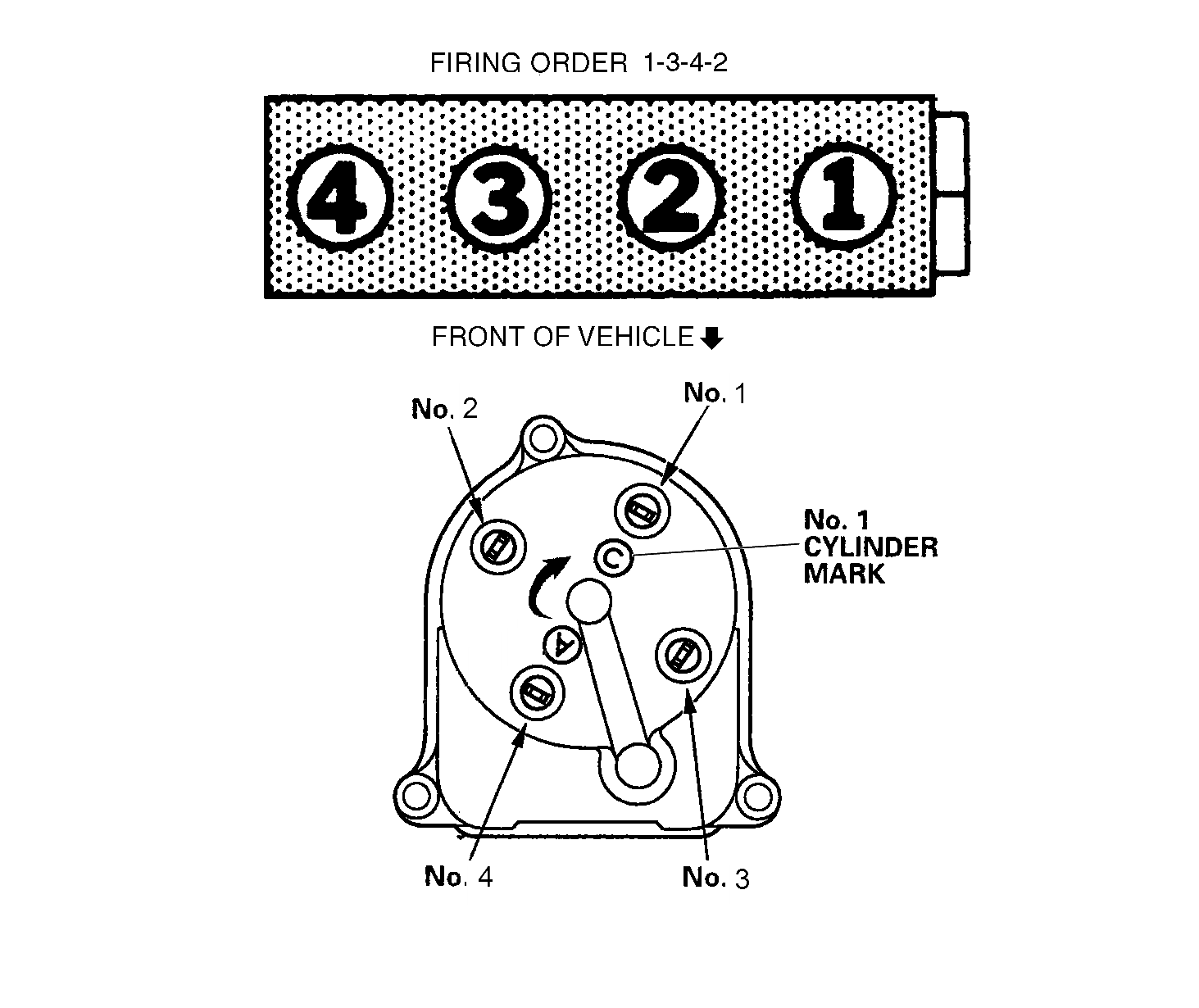

    Fig 1: Identifying No.1 Cylinder Mark
    G06289319
  5. Connect the connector to the distributor.
  6. Set the ignition timing (see Ignition Timing Inspection and Setting  ).
  7. After setting the ignition timing, tighten the mounting bolts.
