Electronic Control System: Notes

The electronic control system consists of a Powertrain Control Module (PCM), sensors, a linear solenoid and four solenoid valves. Shifting and lock-up are electronically controlled for comfortable driving under all conditions. The PCM is located below the dashboard, under the front lower panel on the passenger's side.

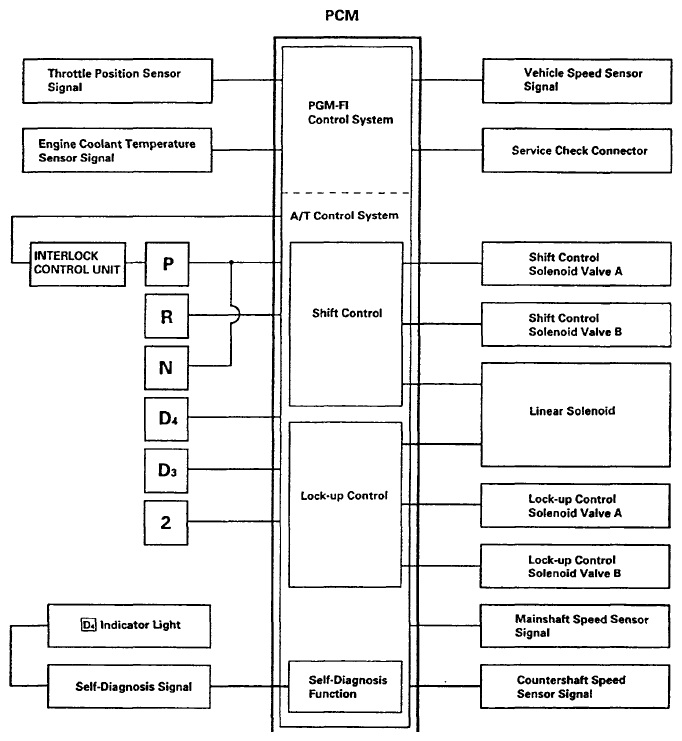

Fig 1: Electronic Control System Communication Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
