Key Interlock Solenoid Test

Remove the driver's dashboard lower cover and knee bolster (see DASHBOARD COMPONENT REMOVAL/INSTALLATION ).
Disconnect the 7P connector from the main wire harness.

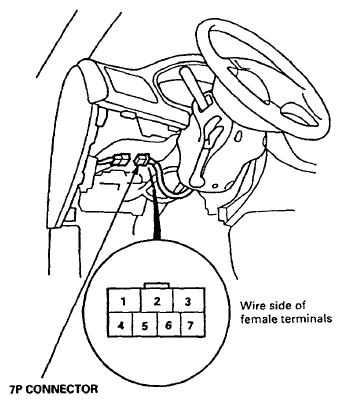

Fig 1: Identifying Main Wire Harness 7P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each key position according to the table.

Fig 2: Key Interlock Solenoid Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check that the key cannot be removed with power and ground connected to the No. 7 and No. 5 terminals.
- If the key cannot be removed, the key interlock solenoid is OK.
- If the key can be removed, replace the steering lock assembly (the interlock solenoid is not available separately).
