Home >> Acura >> 2000 >> 3.2TL >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Stability Assistance System >> Steering Angle Sensor Replacement

Steering Angle Sensor Replacement

NOTE: Do not damage or drop the steering angle sensor as it is sensitive.
  1. Remove the combination light switch.
  2. Remove the circlip and screws, the remove the steering angle sensor from the combination switch.

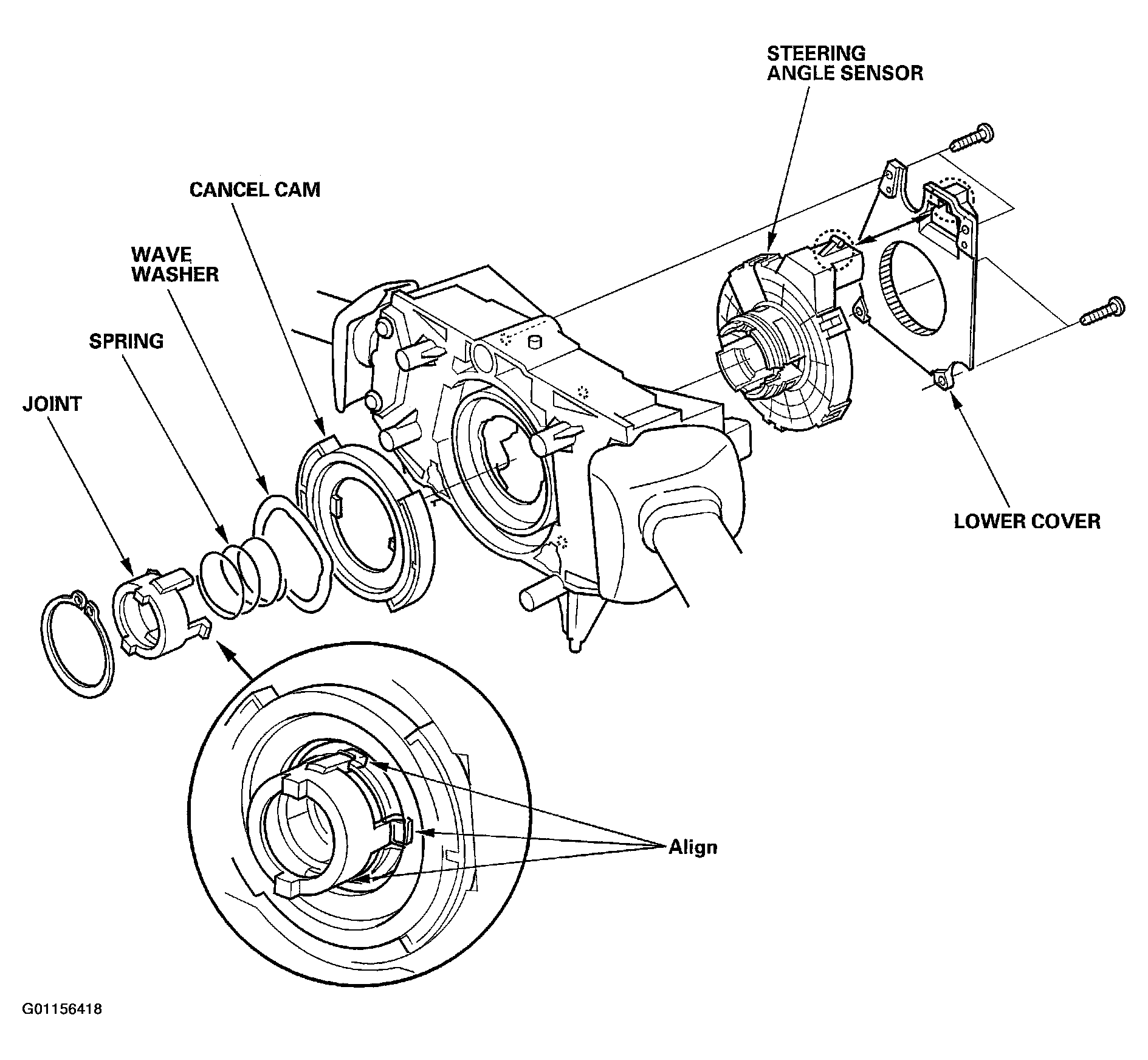

    Fig 1: Removing Steering Angle Sensor
    G01156418Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal.
    NOTE: Do not apply any grease or oil to the steering angle sensor.
