Component Locations

For component locations, see Fig 1 - Fig 7 . For connector identification and locations, see Fig 8 - Fig 21 .

Fig 1: Locating PGM-FI Components (1 Of 7)

G00097422

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating PGM-FI Components (2 Of 7)

G00112267

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Locating PGM-FI Components (3 Of 7)

G00112268

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Locating PGM-FI Components (4 Of 7)

G00112269

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Locating PGM-FI Components (5 Of 7)

G00112270

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Locating PGM-FI Components (6 Of 7)

G00112271

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Locating PGM-FI Components (7 Of 7)

G00112272

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Identifying & Locating Connectors - Right Side Of Engine Compartment (1 Of 2)

G00112334

Courtesy of AMERICAN HONDA MOTOR CO., INC.

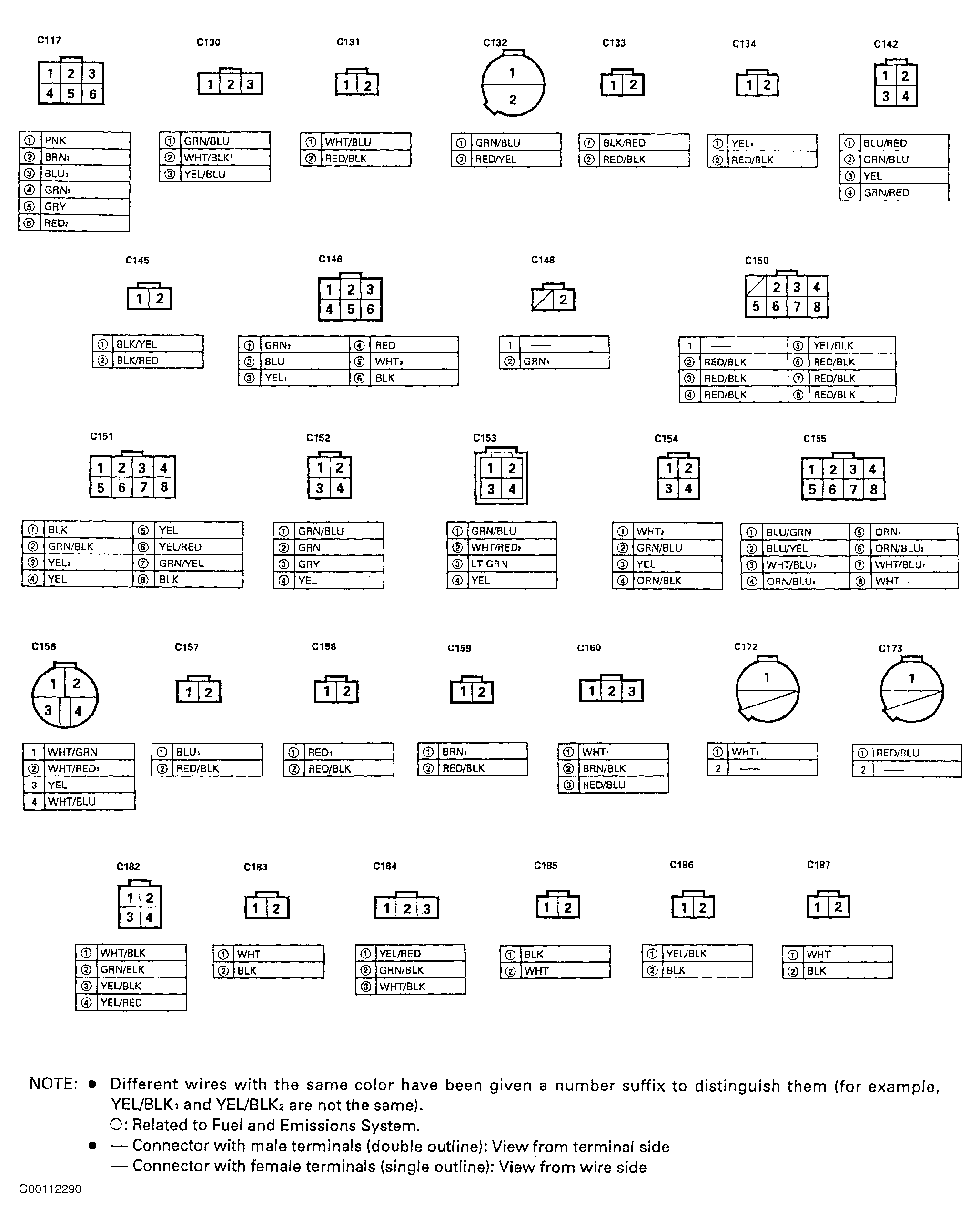

Fig 9: Identifying & Locating Connectors - Right Side Of Engine Compartment (2 Of 2)

G00112290

Courtesy of AMERICAN HONDA MOTOR CO., INC.

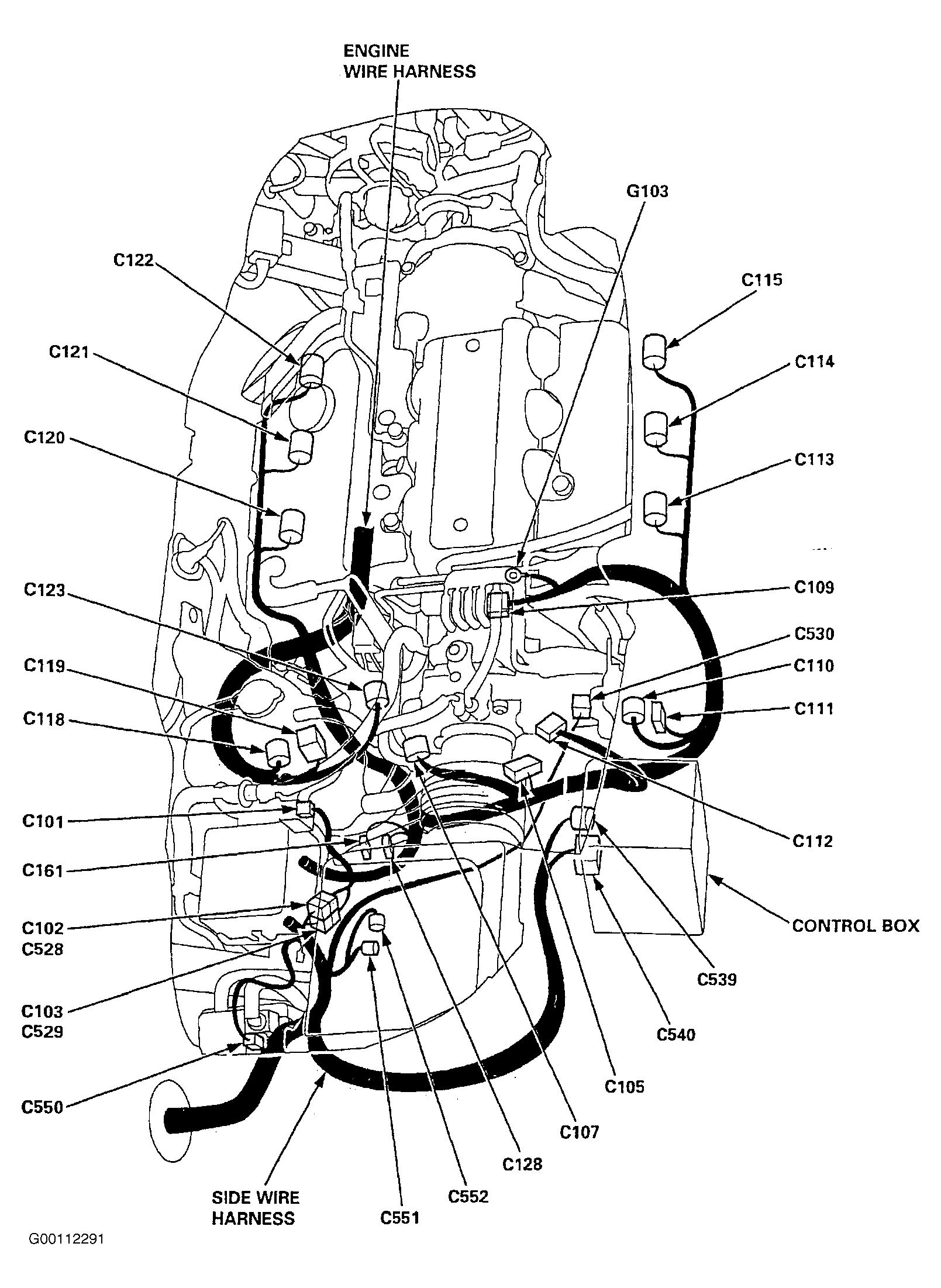

Fig 10: Identifying & Locating Connectors - Left Side Of Engine Compartment (1 Of 2)

G00112291

Courtesy of AMERICAN HONDA MOTOR CO., INC.

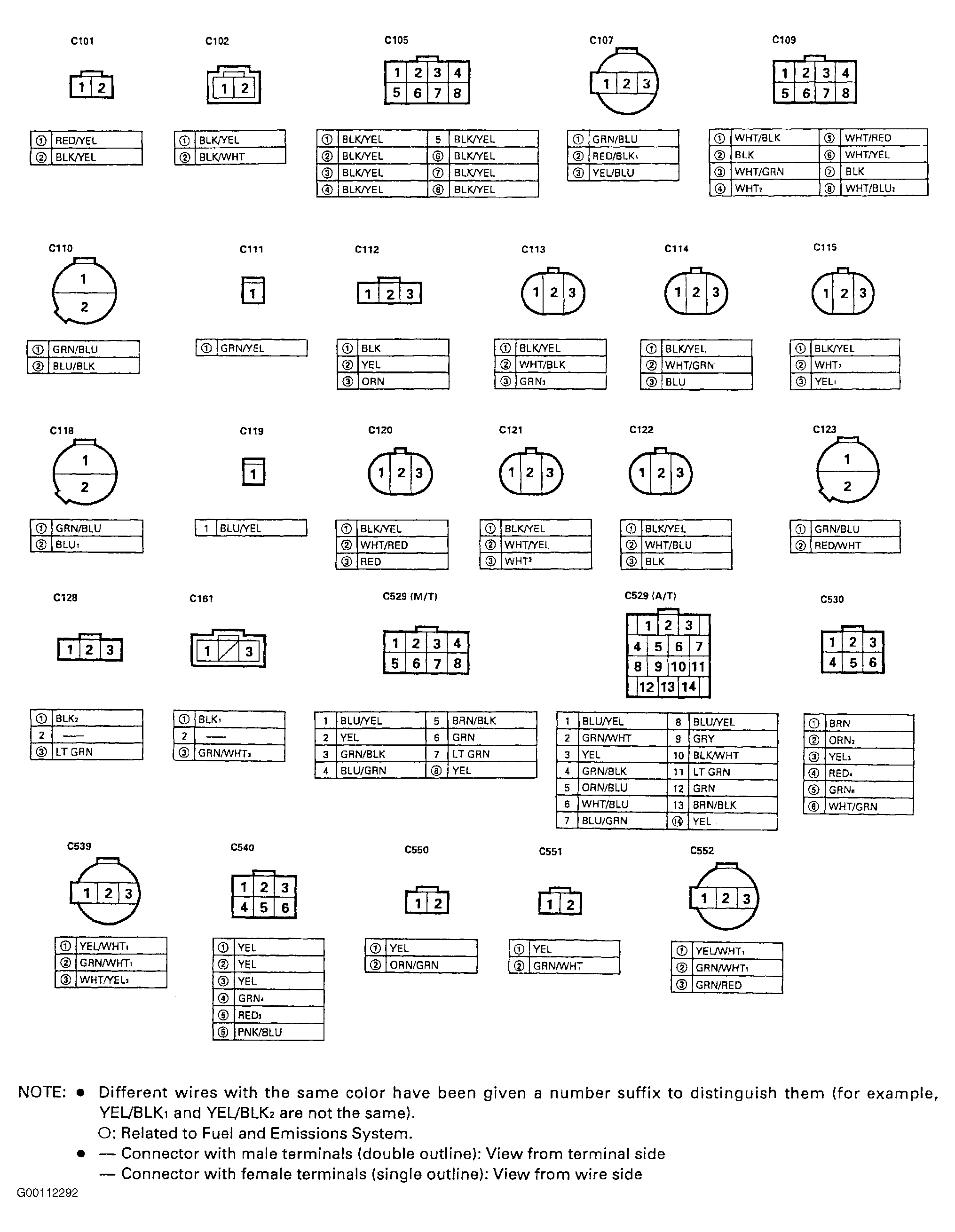

Fig 11: Identifying & Locating Connectors - Left Side Of Engine Compartment (2 Of 2)

G00112292

Courtesy of AMERICAN HONDA MOTOR CO., INC.

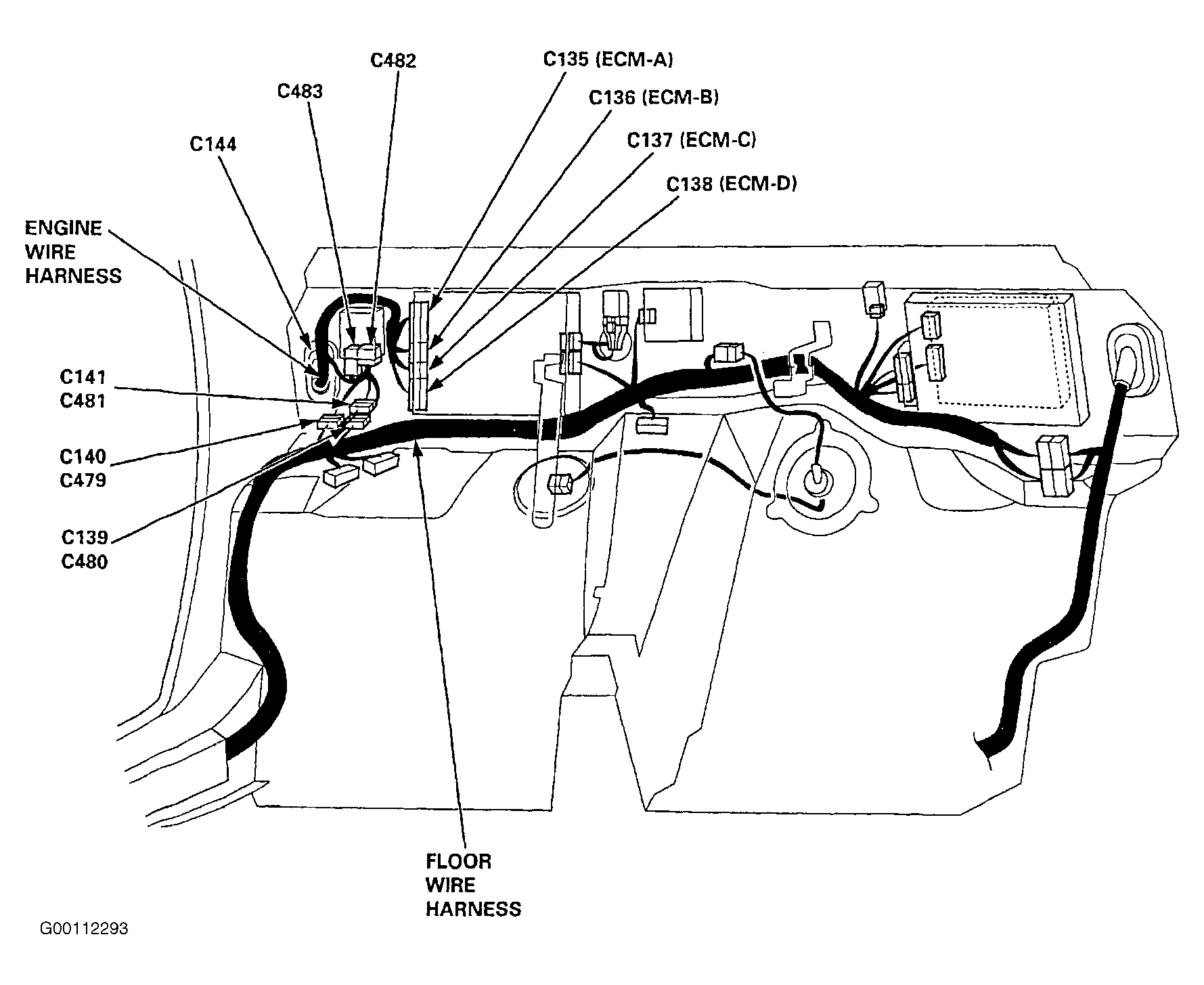

Fig 12: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (1 Of 6)

G00112293

Courtesy of AMERICAN HONDA MOTOR CO., INC.

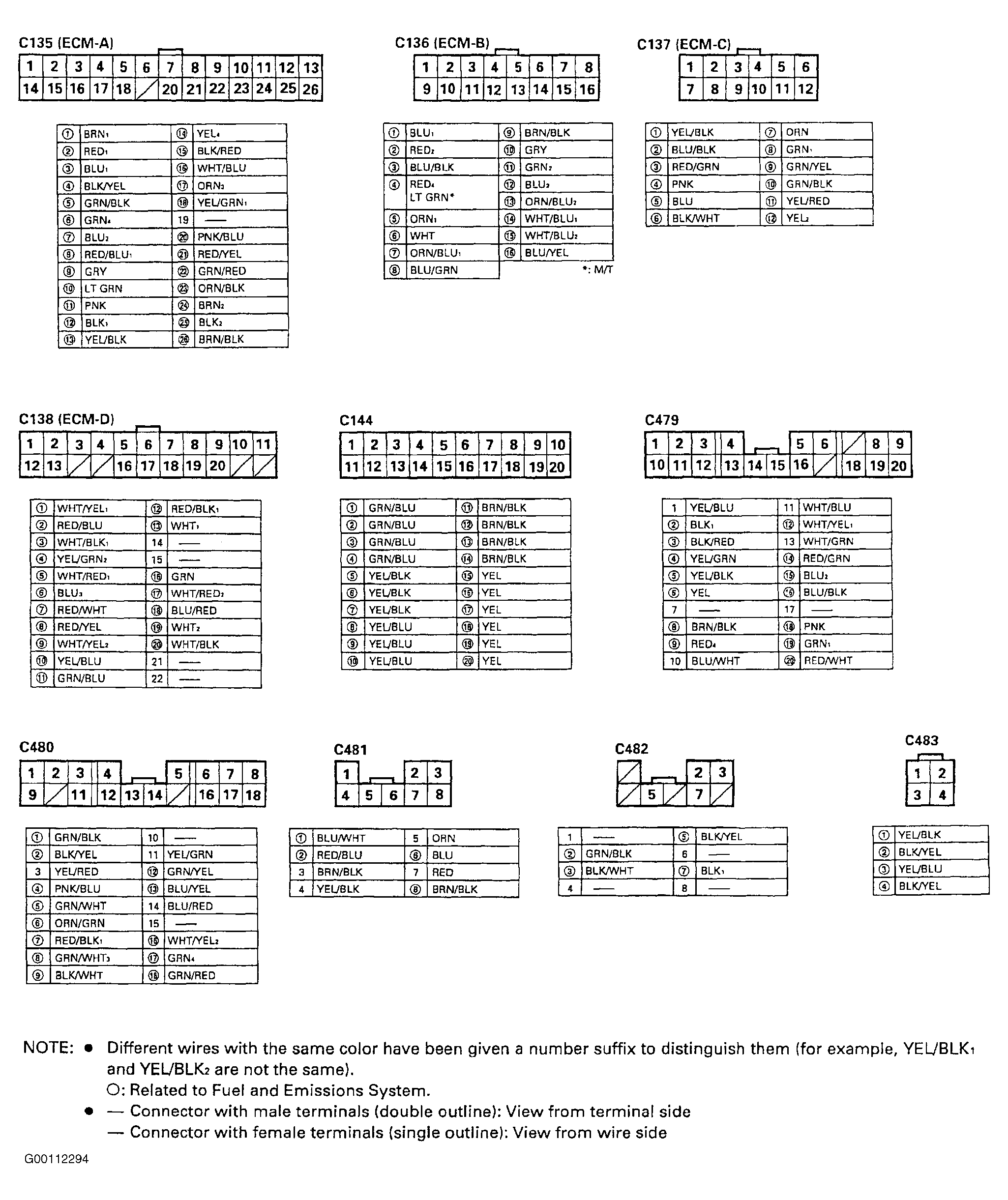

Fig 13: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (2 Of 6)

G00112294

Courtesy of AMERICAN HONDA MOTOR CO., INC.

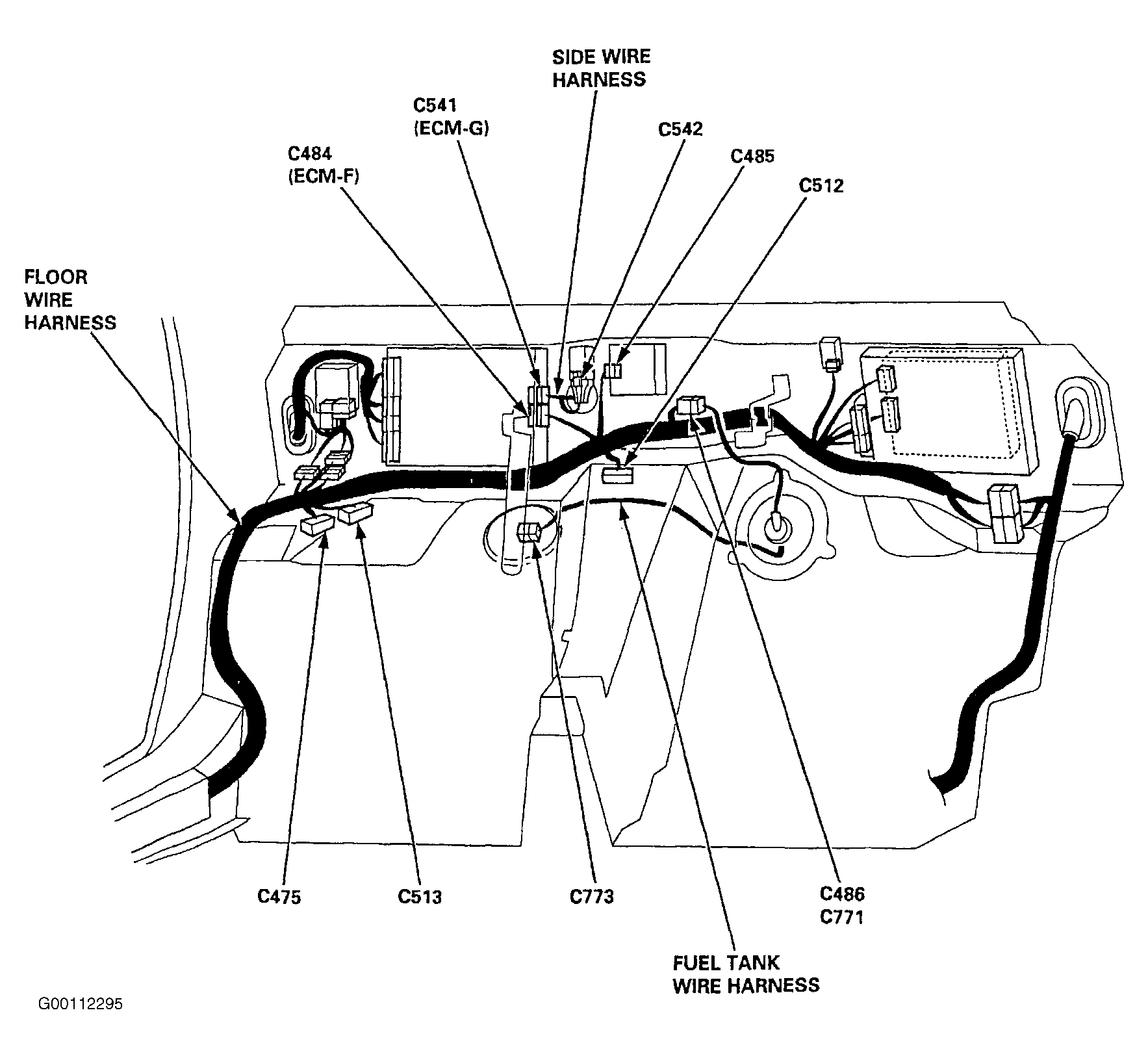

Fig 14: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (3 Of 6)

G00112295

Courtesy of AMERICAN HONDA MOTOR CO., INC.

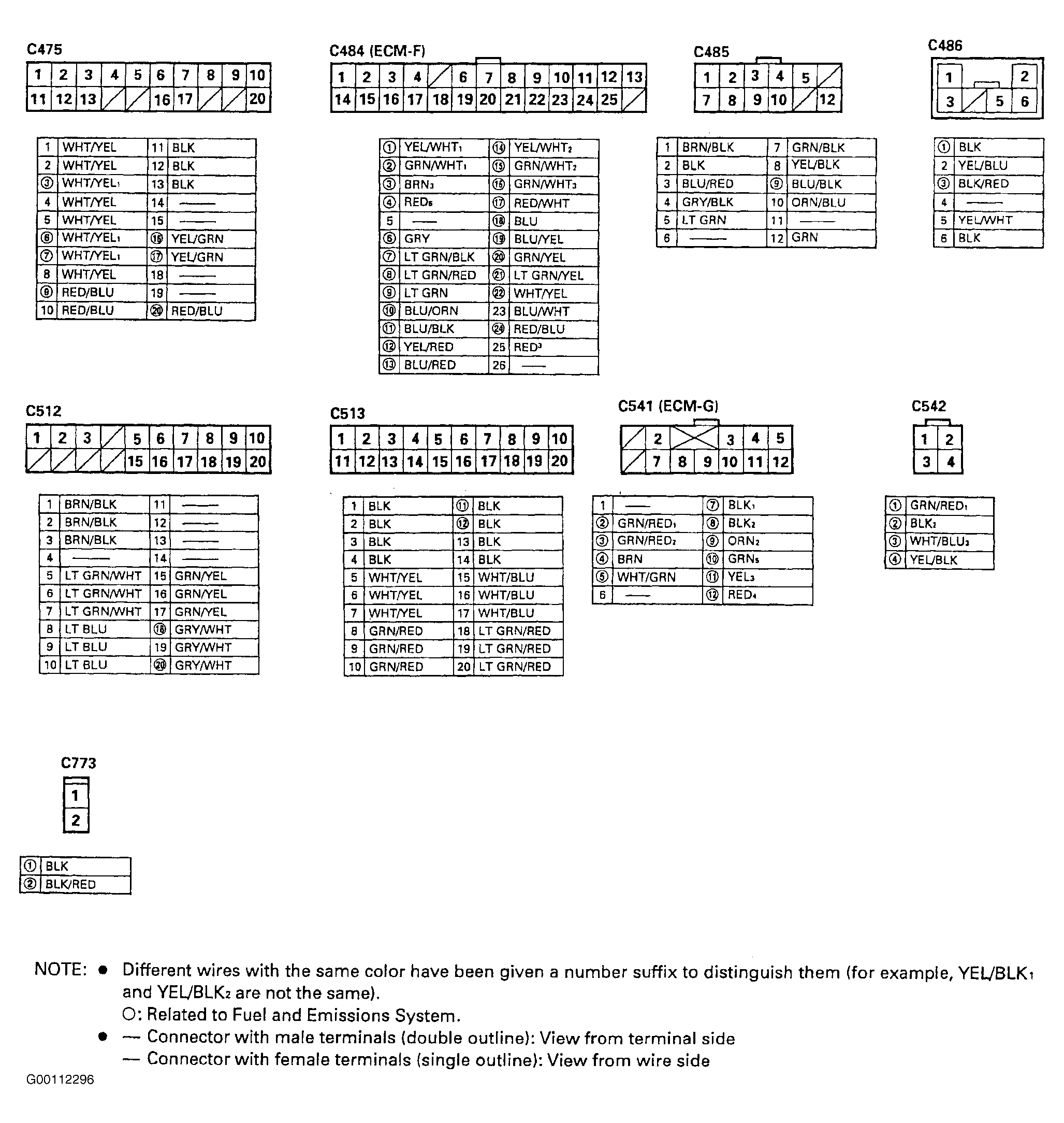

Fig 15: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (4 Of 6)

G00112296

Courtesy of AMERICAN HONDA MOTOR CO., INC.

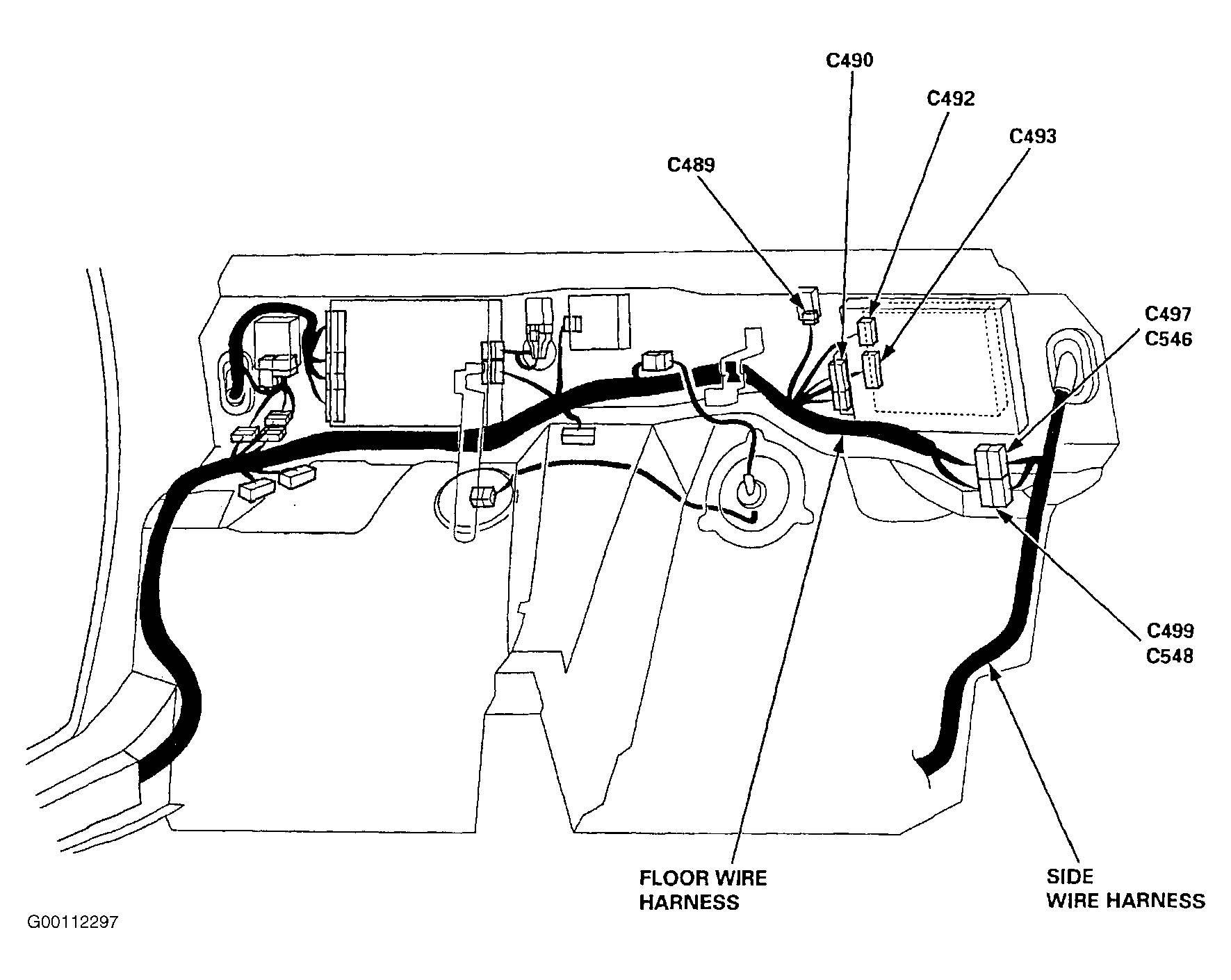

Fig 16: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (5 Of 6)

G00112297

Courtesy of AMERICAN HONDA MOTOR CO., INC.

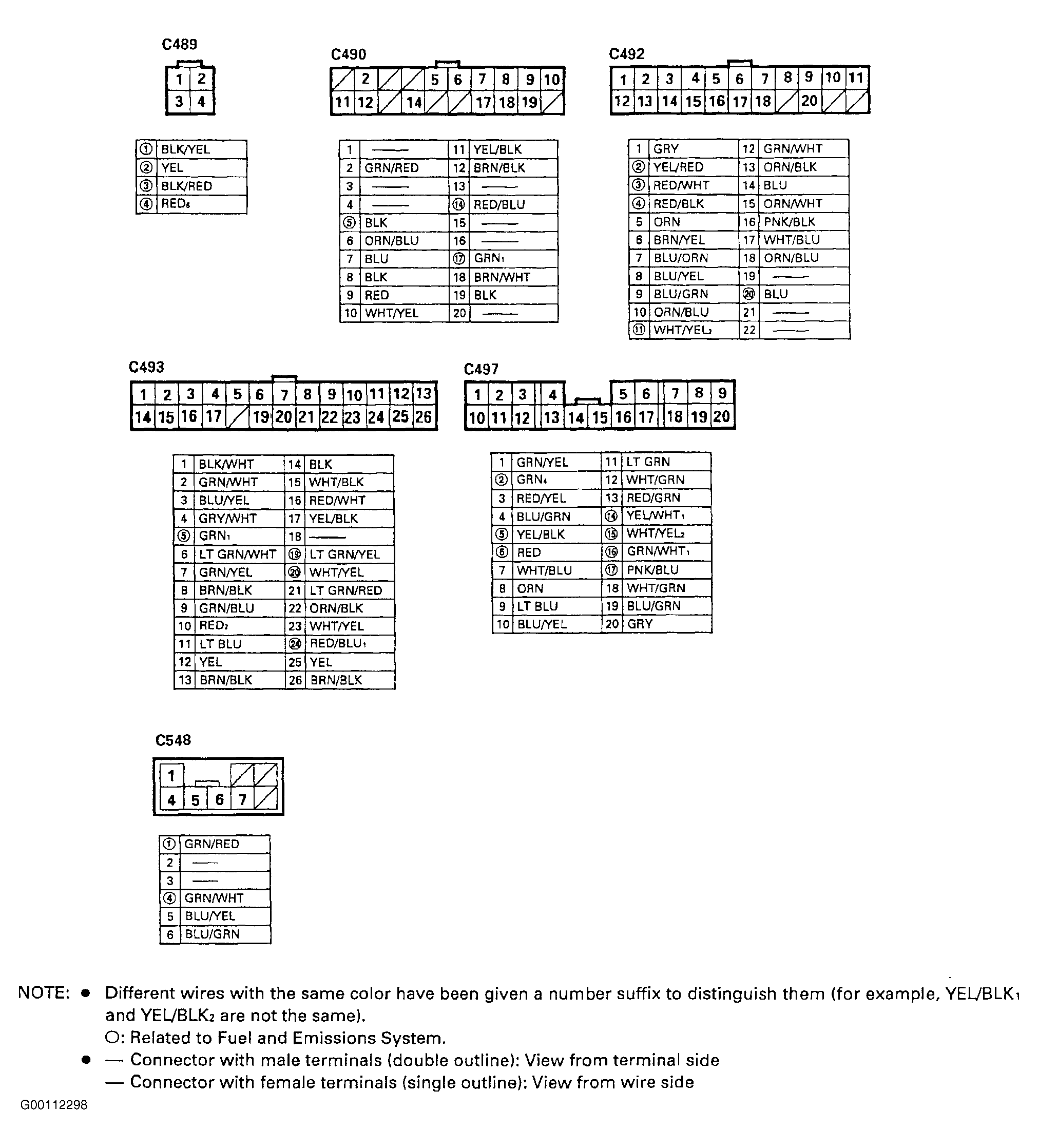

Fig 17: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (6 Of 6)

G00112298

Courtesy of AMERICAN HONDA MOTOR CO., INC.

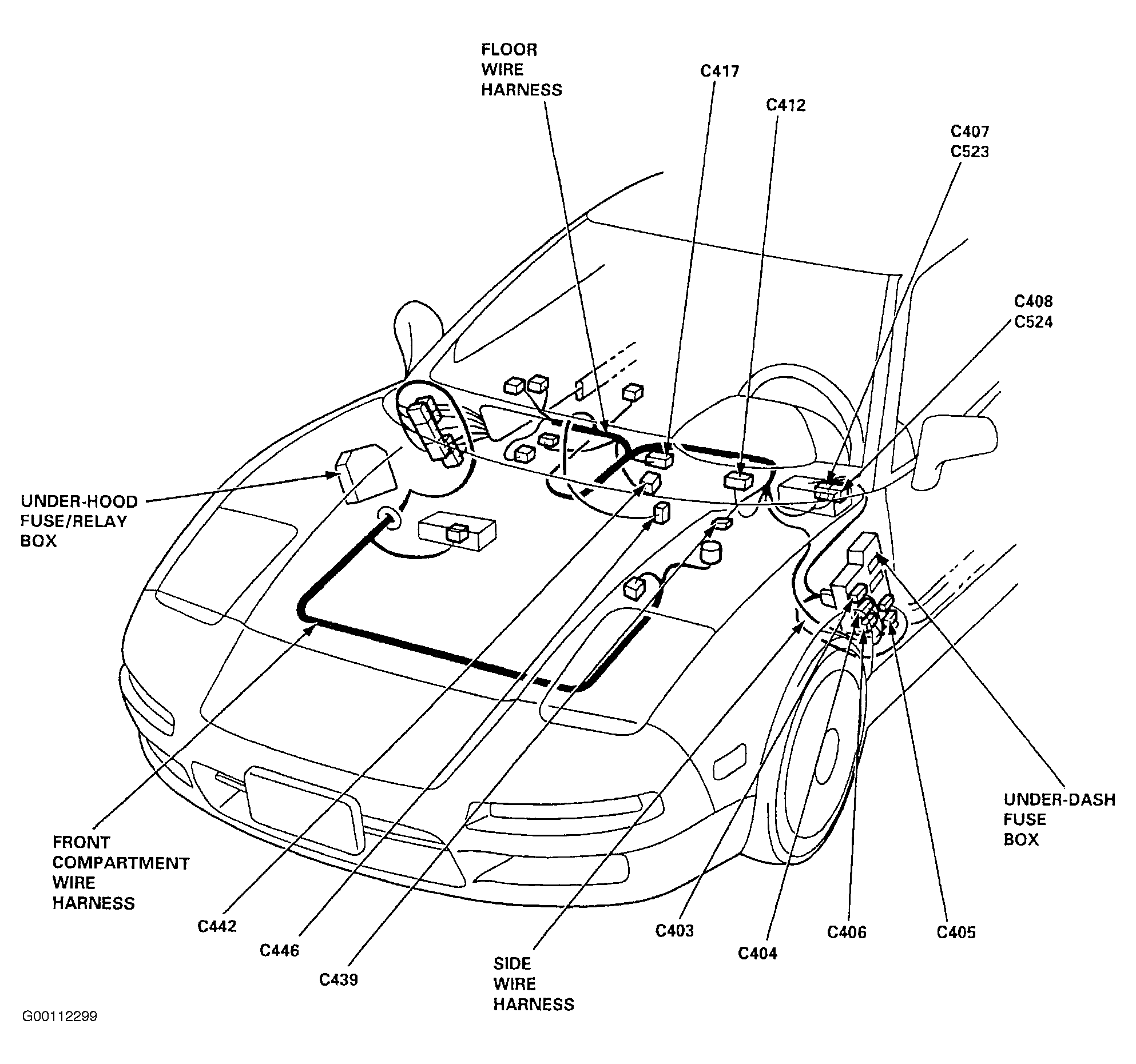

Fig 18: Identifying & Locating Connectors - Front Compartment & Under Dash (1 Of 4)

G00112299

Courtesy of AMERICAN HONDA MOTOR CO., INC.

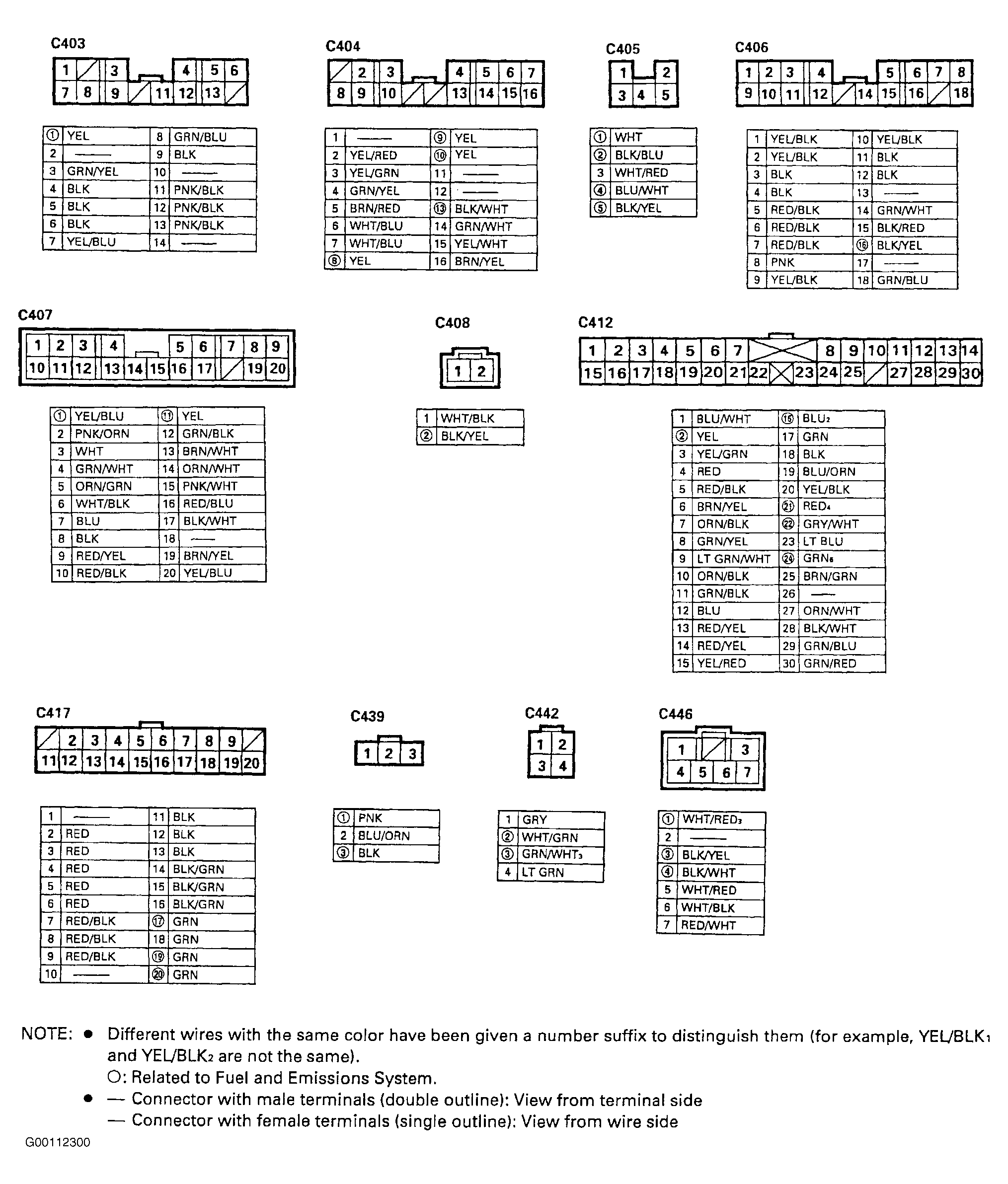

Fig 19: Identifying & Locating Connectors - Front Compartment & Under Dash (2 Of 4)

G00112300

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Identifying & Locating Connectors - Front Compartment & Under Dash (2 Of 4)

G00109788

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Identifying & Locating Connectors - Front Compartment & Under Dash (2 Of 4)

G00109789

Courtesy of AMERICAN HONDA MOTOR CO., INC.
