Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Modulator Control Unit | At left side of engine compartment. See Figure . |

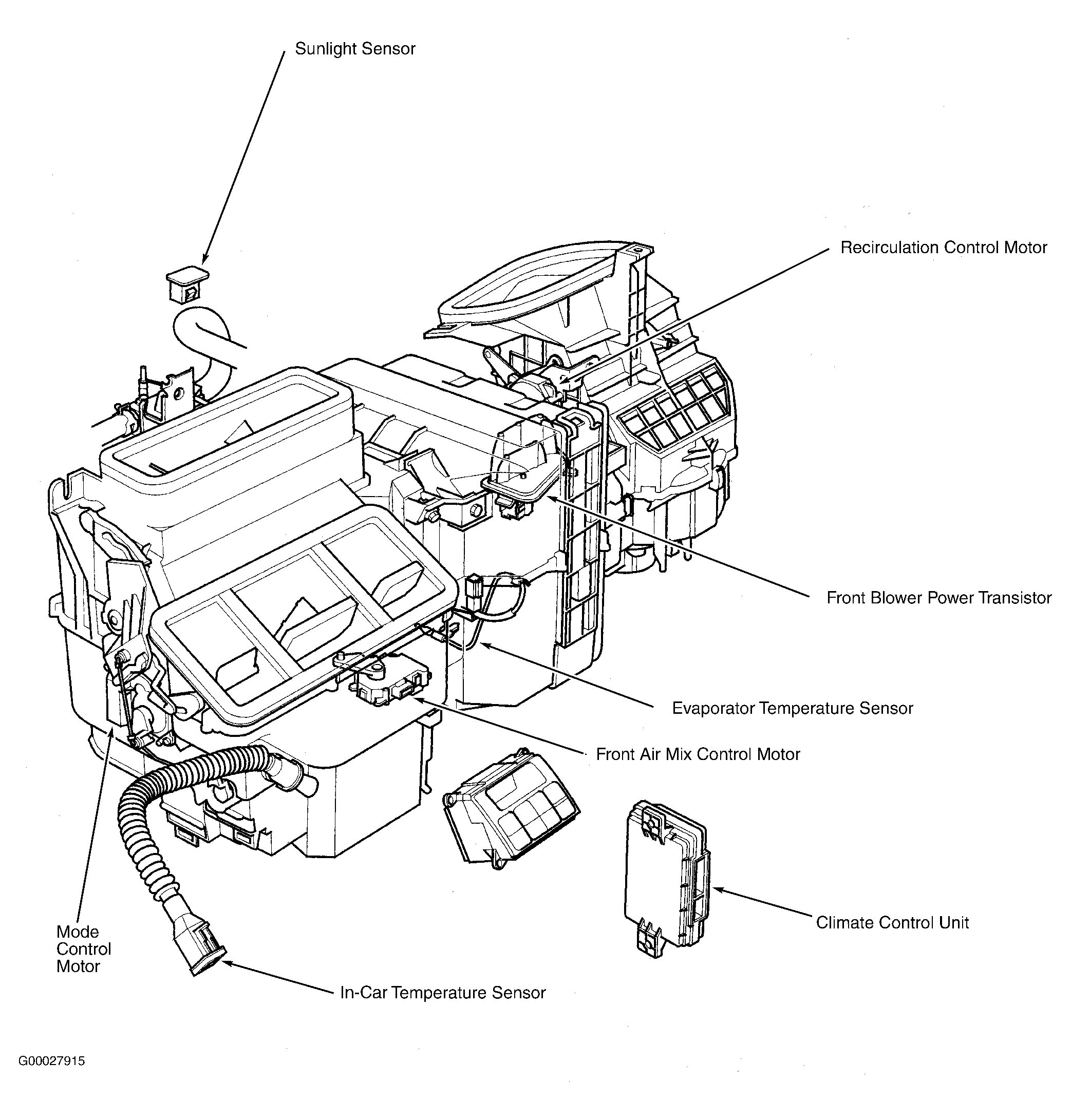

| Climate Control Unit | Lower center of dash, forward of center console. See Figure . |
| Cruise Control Unit | Under left side of dash, right of steering column. See Figure . |
| Daytime Running Lights Control Unit (Canada) | Behind left side of dash. See Figure . |
| Driver's Multiplex Control Unit | Behind left side of dash. See Figure . |
| ELD Unit | In underhood fuse/relay box. See Figure . |
| Electrical Compass Unit | At middle of roof. |
| Immobilizer Receiver Unit | In steering column, on ignition key cylinder. |
| Intake Manifold Runner Control (IMRC) Unit | Behind lower center of dash, front of center console. |
| Keyless Receiver Unit | Behind right side of glove box. |
| Navigation Unit | Under right front seat. |
| Passenger's Multiplex Control Unit | Behind right kick panel. |
| Radiator Fan Control Module | Behind center of dash. See Figure . |
| SRS Unit | Behind lower center of dash. |
| VOTM Control Unit | At right side of cargo area, behind rear side trim panel. |
