Rack Guide Adjustment

Special Tools Required

Locknut wrench, 40 mm 07916-SA50001

1. Set the wheels in the straight ahead position.
2. Loosen the rack guide screw locknut (A) with the special tool, then remove the rack guide screw (B).

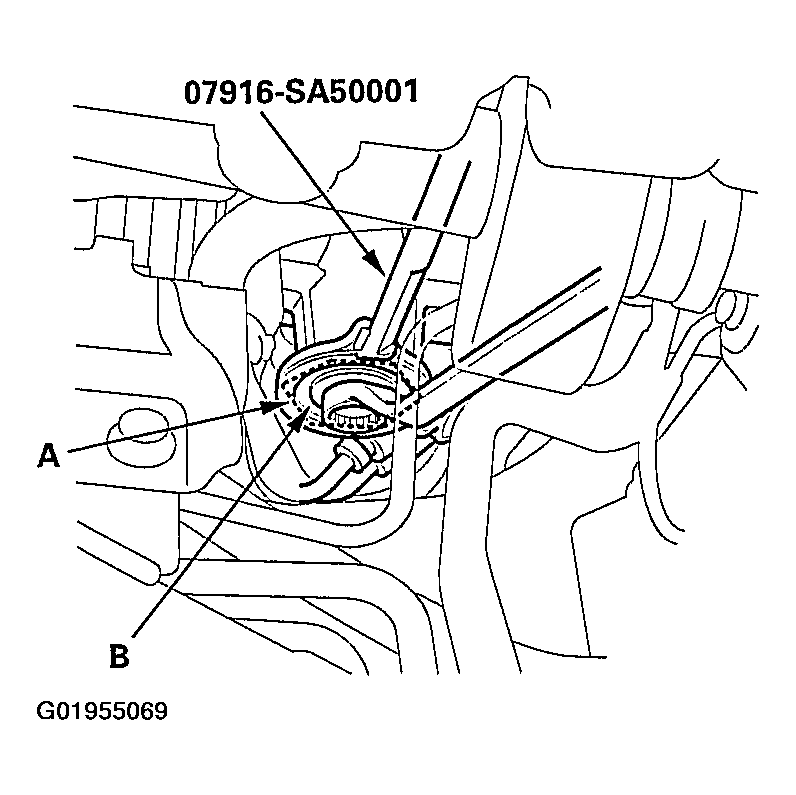

   Fig 1: Removing Rack Guide Screw


3. Remove the old sealant from rack guide screw, and apply new sealant all around the threads (C).

   Loosely install the rack guide screw on the steering gearbox.

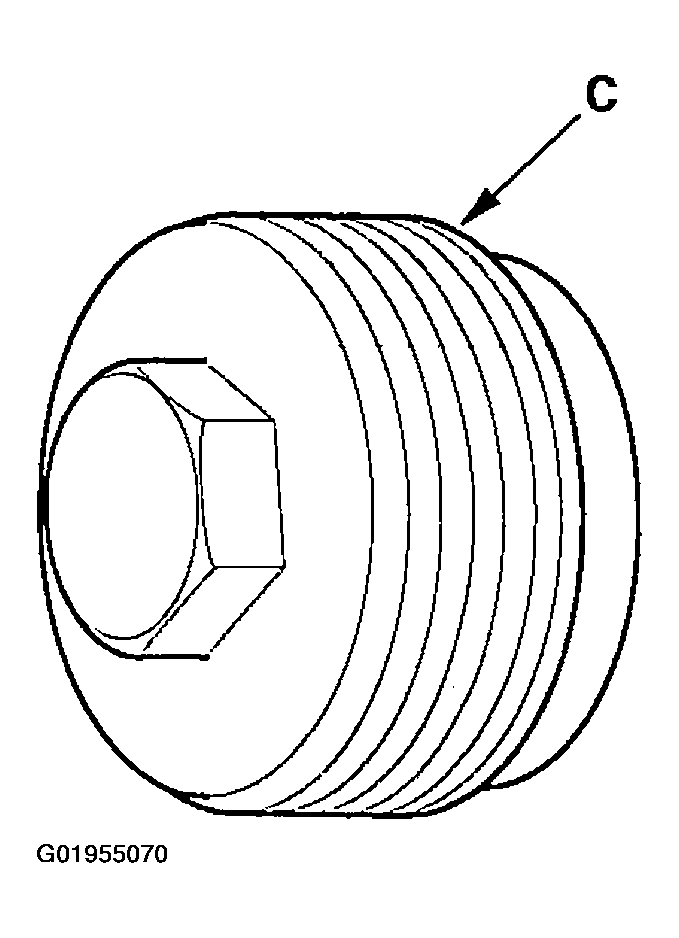

   Fig 2: Applying Sealant Around Threads


4. Tighten the rack guide screw (A) to 25 N.m (2.5 kgf.m, 18 lbf.Ft), then loosen it.
   Fig 3: Tightening Rack Guide Screw


5. Retighten the rack guide screw to 3.9 N.m (0.4 kgf.m, 2.9 lbf.Ft), then back it off to specified angle.
   • Specified Return Angle: 20° Max.
6. Tighten the locknut (B) while holding the rack guide screw.
7. Check for unusual steering effort through the complete turning travel.
8. Check the steering wheel rotational play and the power assist (see Steering Wheel Rotational Play Check  ).
