Front Toe Inspection/Adjustment

Use commercially-available computerized four wheel alignment equipment to measure wheel alignment (caster, camber, toe, and turning angle). Follow the equipment manufacturer's instructions.

1. Center the steering wheel spokes.
2. Check the toe. If it is not within the specification, go to step 3.
   • Front toe-in:  0 3mm (0 0.12 in.)
3. Loosen the locknut (A) while holding the tie-rod arm (B).

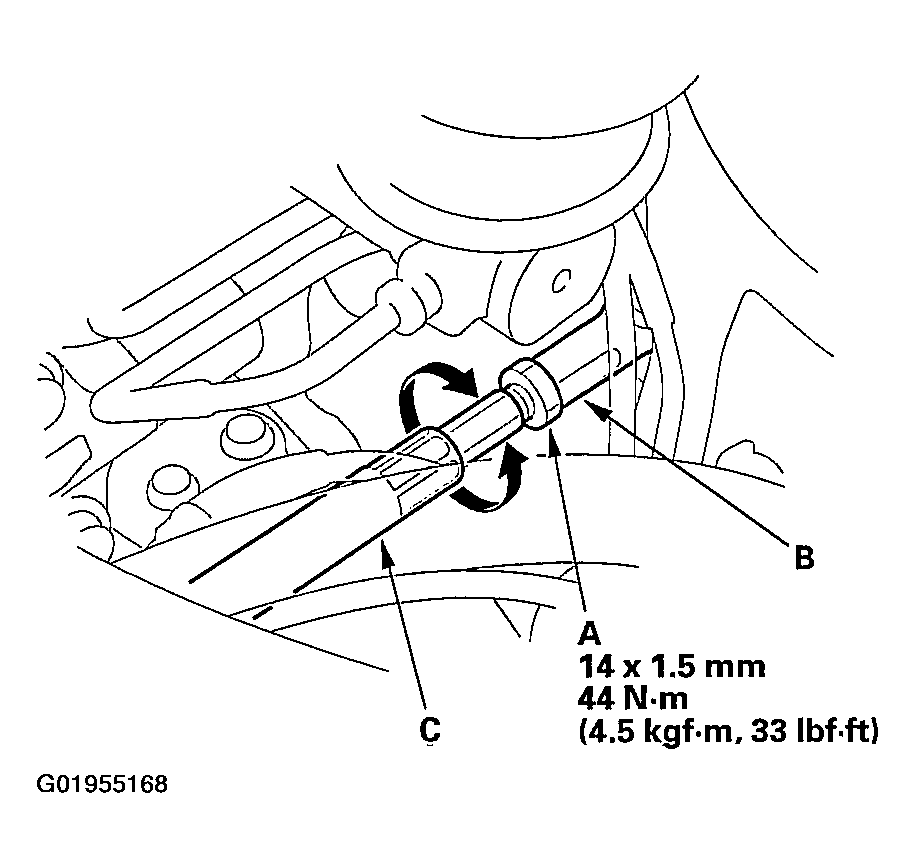

   Fig 1: Loosening Locknut Holding Tie-Rod Arm


4. Turn the tie-rod end (C) until the toe is correct.
   NOTE: Adjust both the right and left wheels at the same time by the same amount in opposite directions to obtain the correct toe.
5. After adjusting, tighten the locknut while holding the tie-rod arm. Make sure the toe setting does not change.
