Display Unit Removal/Installation

  1. Remove the instrument panel (see INSTRUMENT PANELS ).
  2. Remove rear console , and the console panel .
  3. Remove the audio unit. See STEREO SOUND SYSTEM .
  4. Remove the display unit.

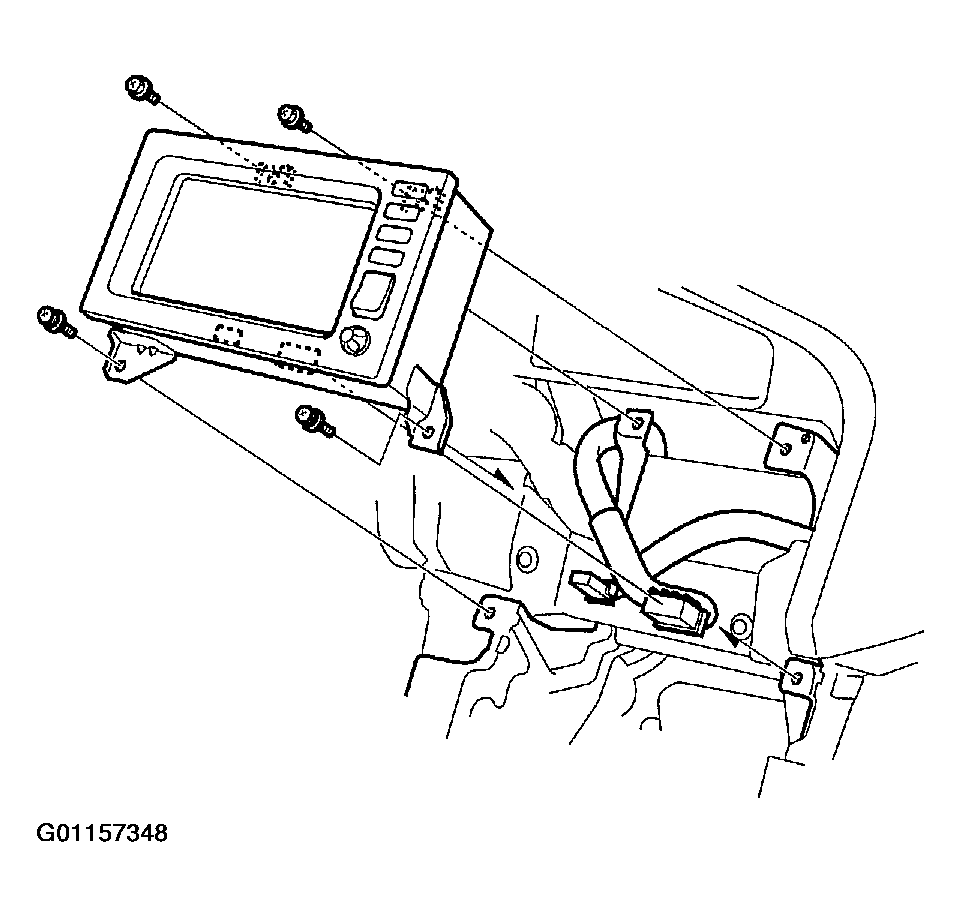

    Fig 1: Removing The Display Unit
    G01157348Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the parts in the reverse order of removal.
