Removal & Installation: Starter: Removal

1. Ensure you have the anti-theft codes for the radio and the navigation system, write down the frequencies for the radio's preset buttons.
2. Disconnect the battery negative cable, disconnect the positive cable.
3. Disconnect the starter cable (A) from the "B" terminal on the solenoid, disconnect the Black/White wire (B) from the "S" terminal. See Fig 1 .
4. Remove the two bolts holding the starter, remove the starter.

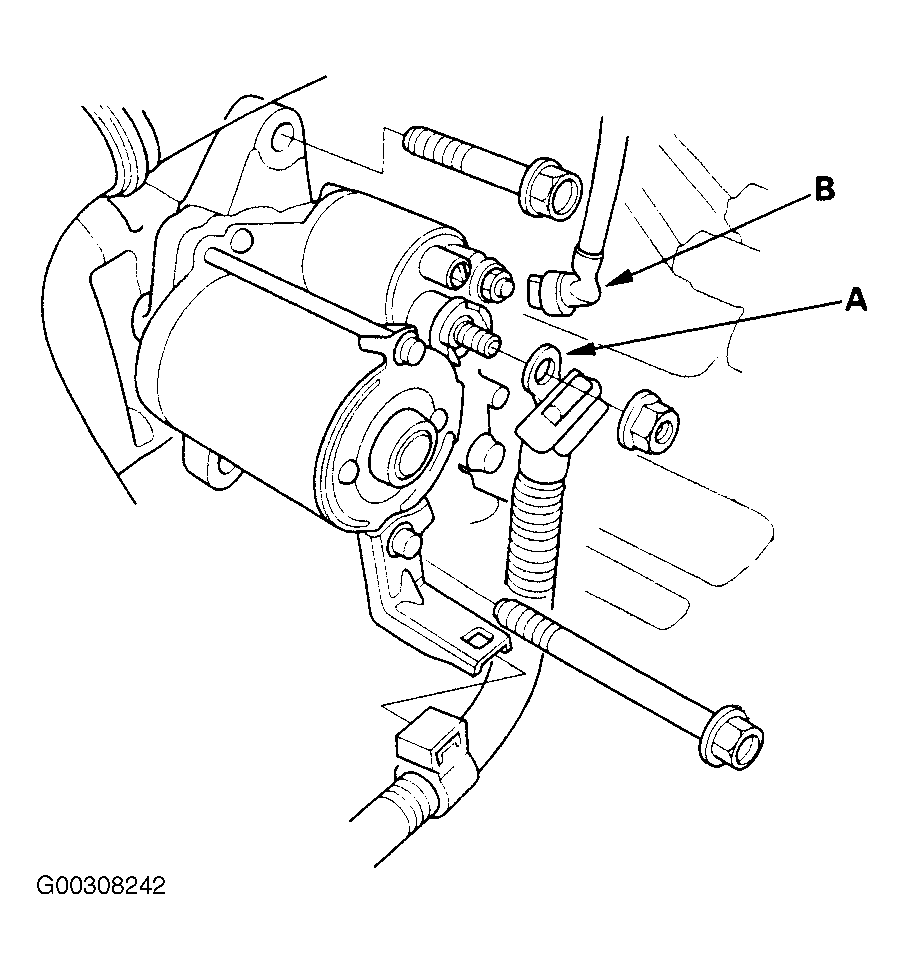

Fig 1: Removing/Installing Starter

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Positioning Crimped Side Of The Ring Terminal

Courtesy of AMERICAN HONDA MOTOR CO., INC.
