Component Location Index

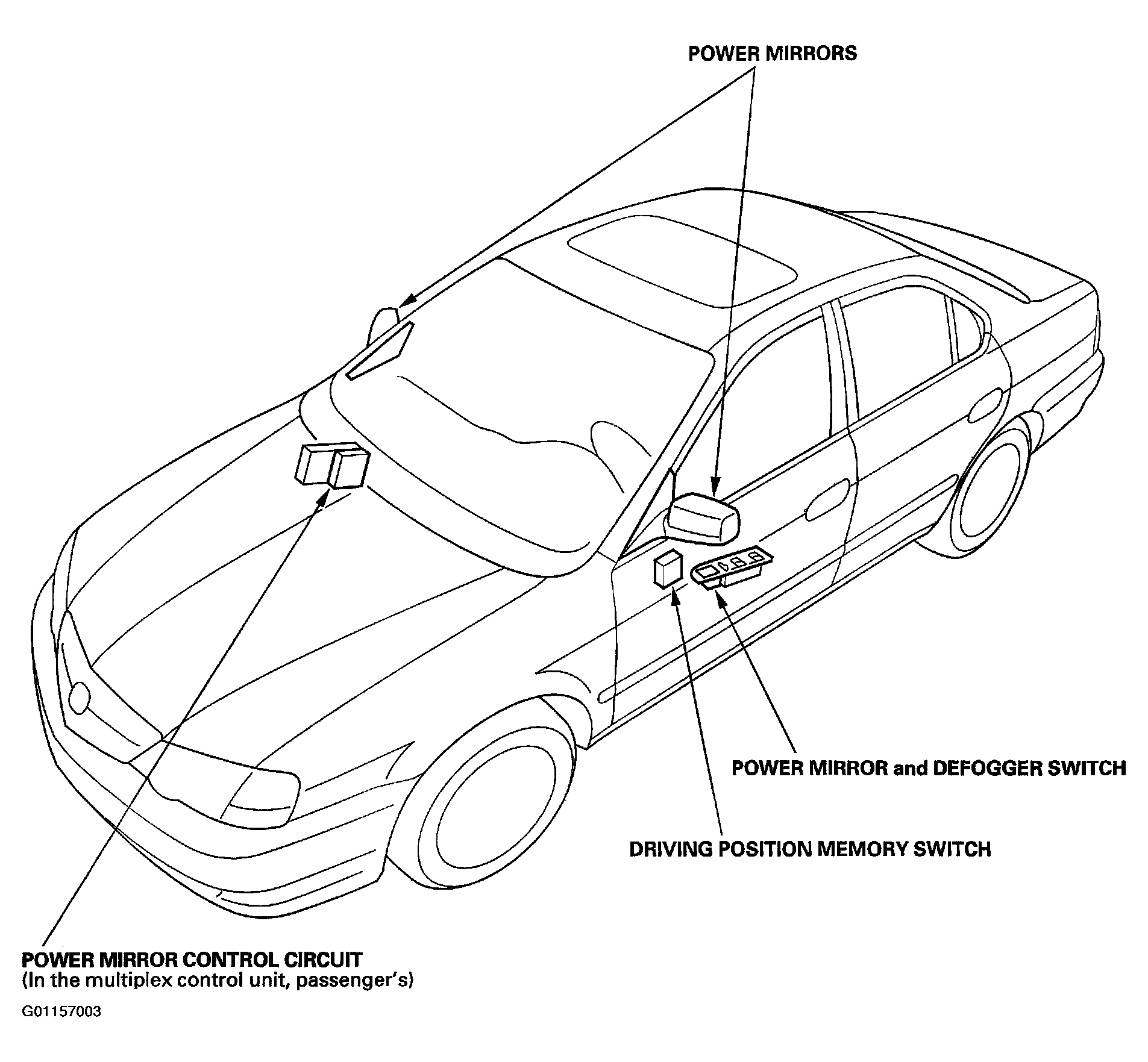

Fig 1: Locating Driving Position Memory System Components (1 Of 2)
G01157003Courtesy of AMERICAN HONDA MOTOR CO., INC.

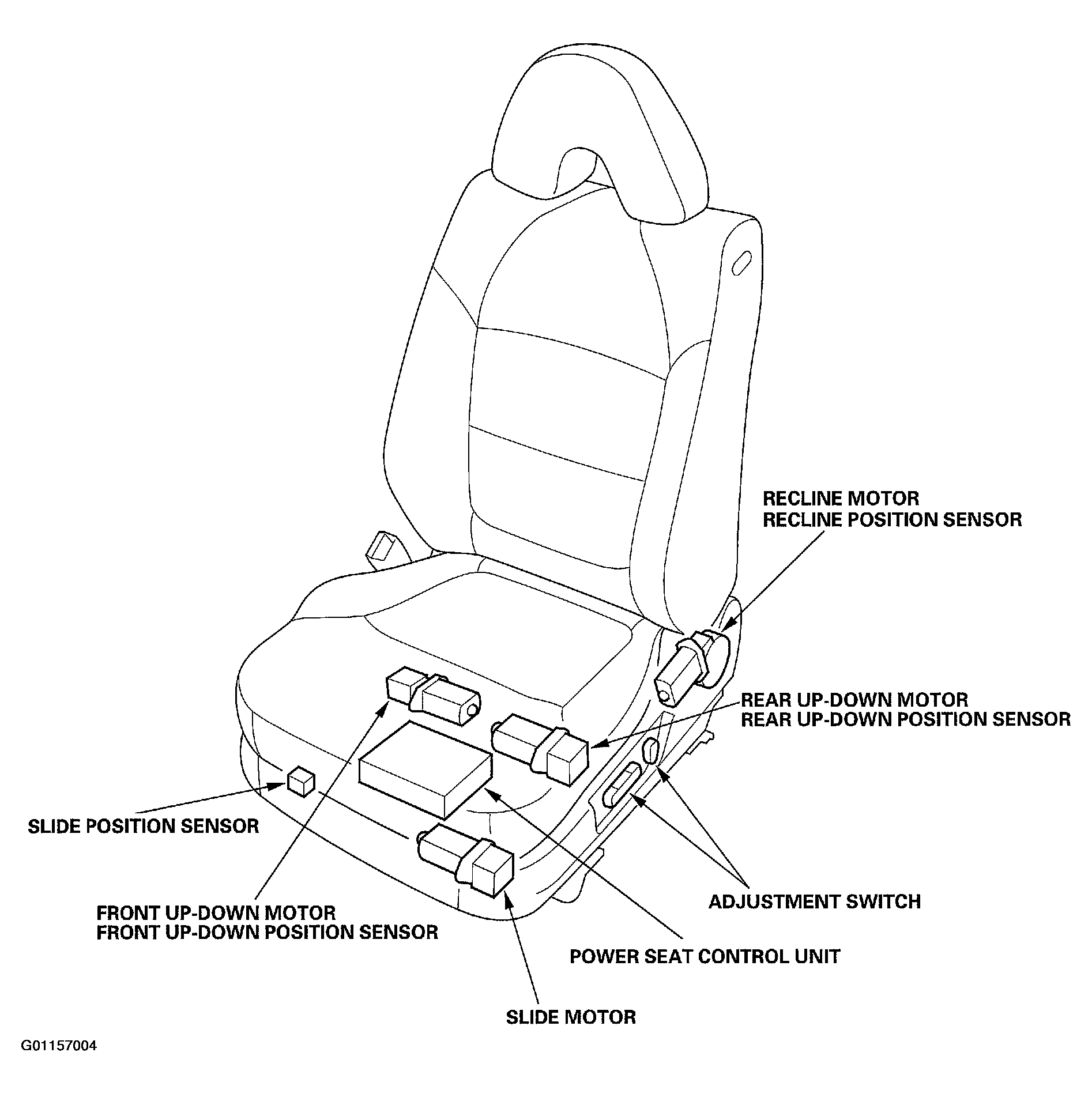

Fig 2: Locating Driving Position Memory System Components (2 Of 2)
G01157004Courtesy of AMERICAN HONDA MOTOR CO., INC.
