Gearshift Lever Position Indicator Input

  1. Remove instrument cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Disconnect instrument cluster 30-pin connector "A" and 14-pin connector "C". Inspect connectors and terminals. Check for bent, loose or corroded terminals. Perform gearshift lever position indicator input test "A". See Fig 1. Repair as necessary and recheck system operation. If gearshift lever position indicator inputs are okay, go to next step.
  2. Reconnect instrument cluster 30-pin connector "A" and 14-pin connector "C". Perform input test "B" as specified at back side of instrument cluster (backprobe). See Fig 1. Repair as necessary. If no problems are found, replace instrument cluster printed circuit board and recheck system.

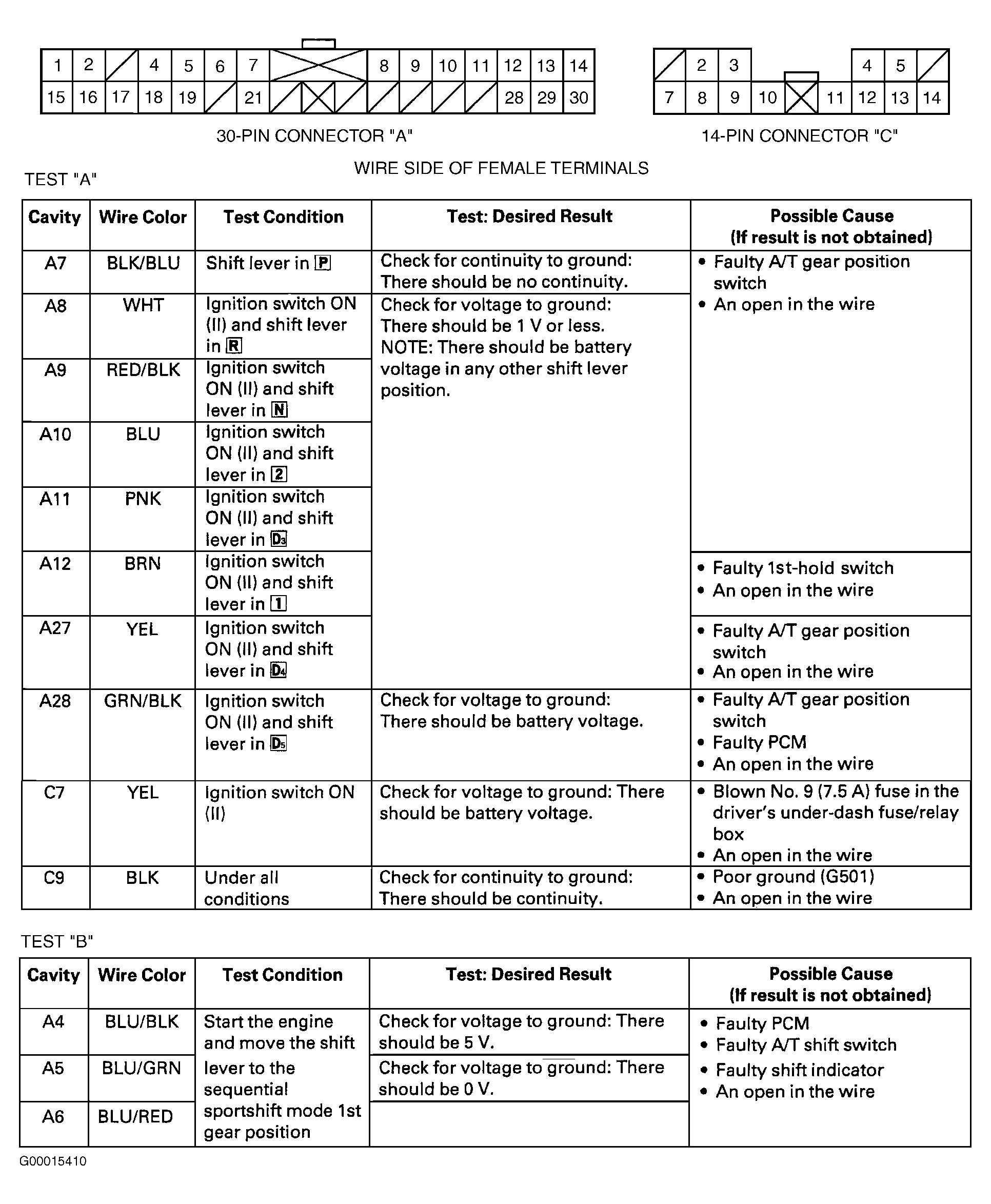

Fig 1: Gearshift Lever Position Indicator Input Test
G00015410Courtesy of AMERICAN HONDA MOTOR CO., INC.
