Turn Signal/Hazard Relay Input

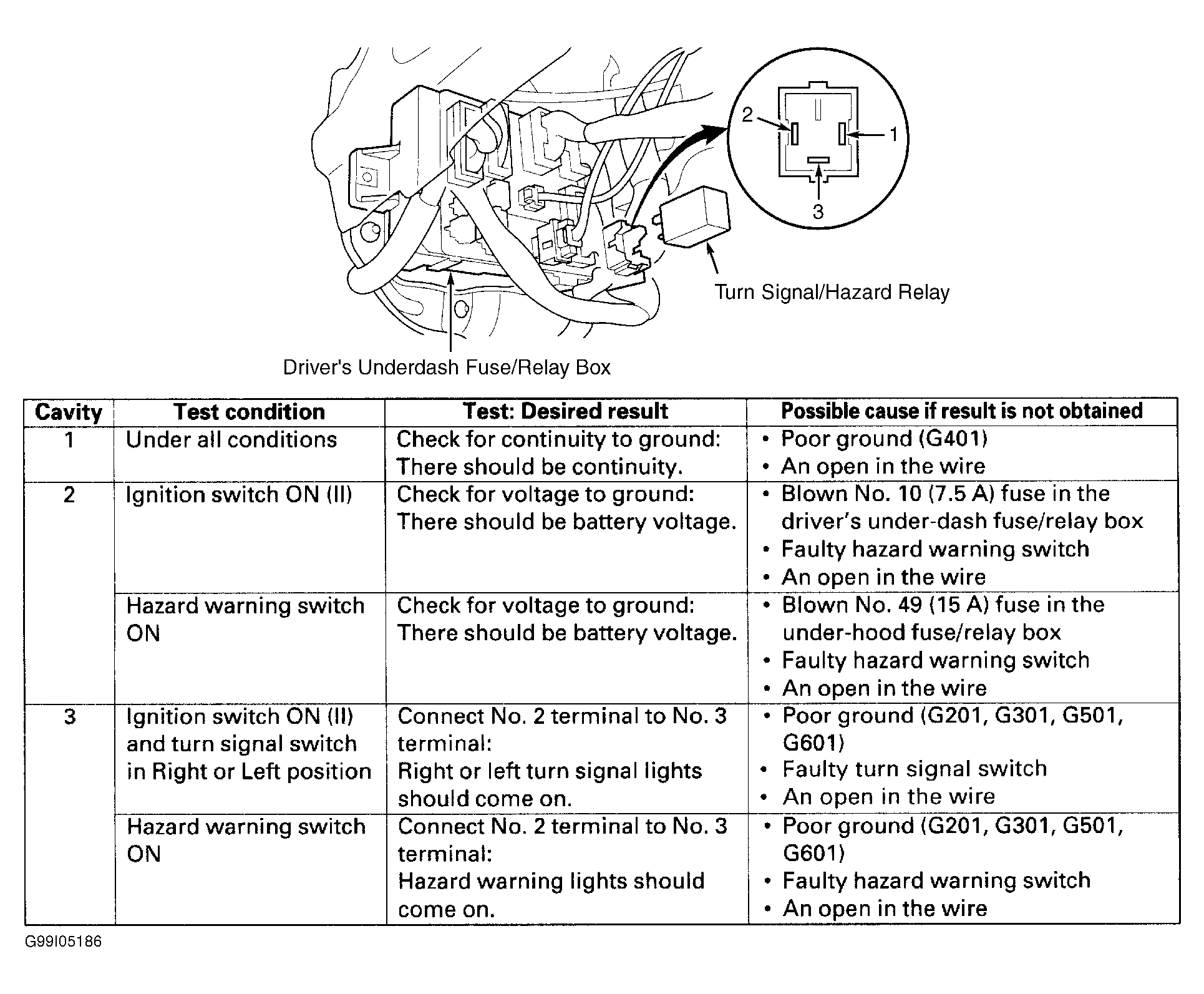

Remove turn signal/hazard relay from driver's underdash fuse/relay box located behind left kick panel. Check for bent, loose or corroded terminals. Repair as necessary and recheck system. If relay terminals are okay, perform turn signal/hazard relay input tests. Test each specified circuit for continuity or battery voltage as indicated. See Fig 1. Correct any problems as directed and recheck system. If no problems are found, replace turn signal/hazard relay and recheck system.
