Safety Indicator Input

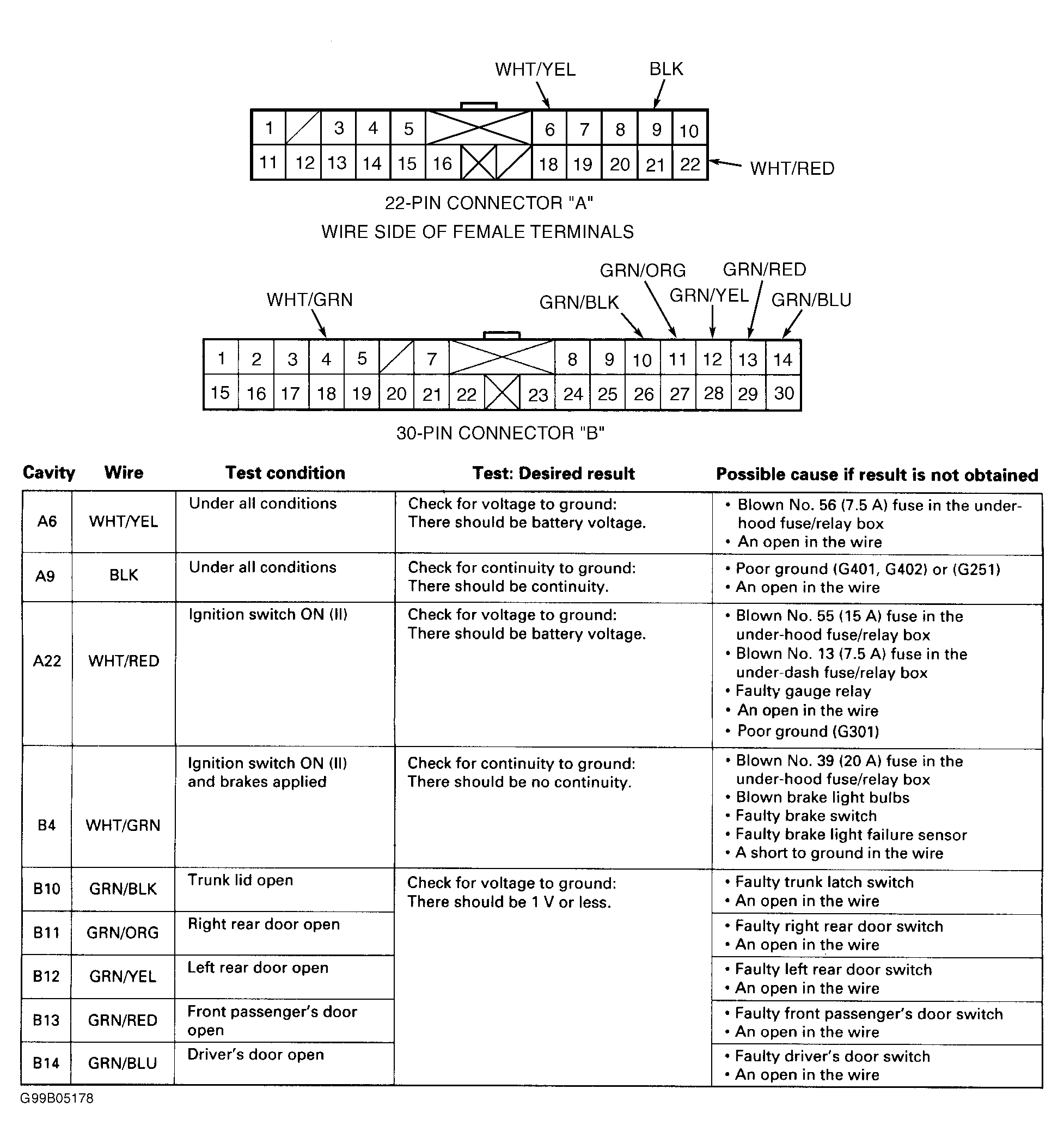

Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Disconnect instrument cluster 22-pin connector "A" and 30-pin connector "B". Check for bent, corroded, loose or disconnected terminals in connectors. Repair connectors as necessary and recheck system. See WIRING DIAGRAMS . Perform safety indicator input test. See Fig 1 . Test each specified circuit for continuity or battery voltage as indicated. Correct any problems as directed and recheck system. If no problems are found, replace instrument cluster printed circuit board and recheck system.
