Bench Testing: Brushes

Check brush holder and brushes for cracks or other damage. Minimum brush length should be .06" (1.5 mm). See Fig 1 . If brushes are damaged or worn, replace brush holder assembly.

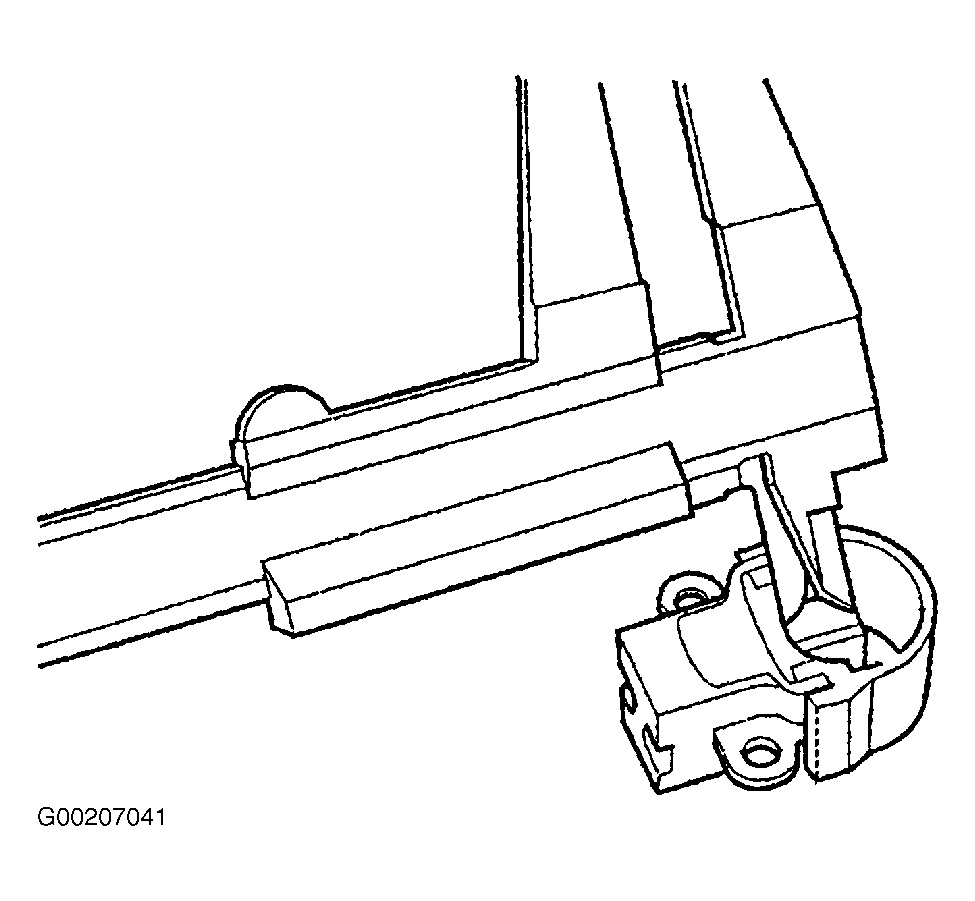

Fig 1: Measuring Brush Length

Courtesy of HONDA MOTORS CO., INC.
