Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| A/C Diode A | On passenger's underdash fuse/relay box. |
| A/C Diode B | Behind right side of dash, taped to harness. |
| A/C Diode C | Behind right side of dash, taped to harness. |

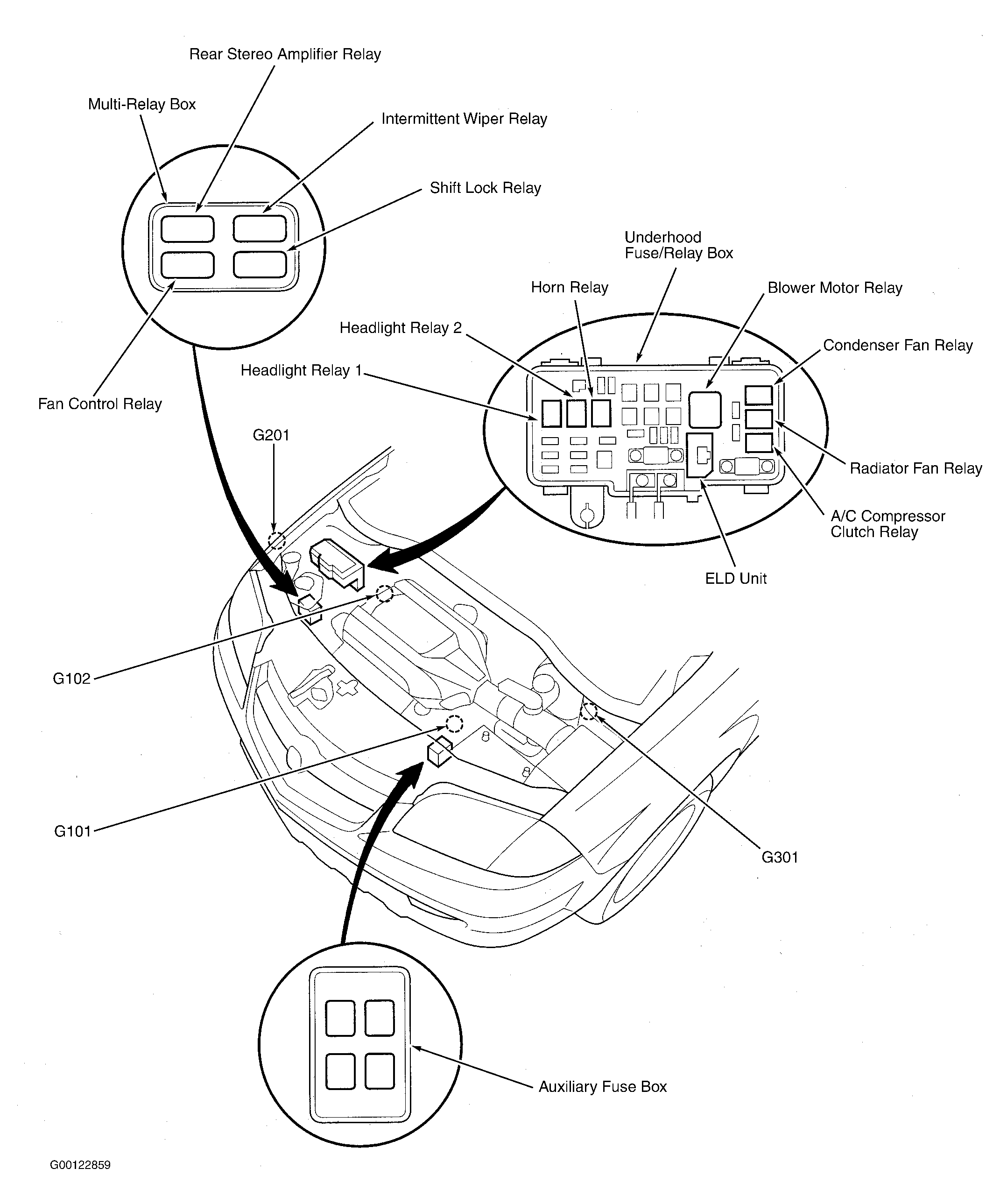

| Auxiliary Fuse Box | At left front of engine compartment, to right of battery. See Figure . |

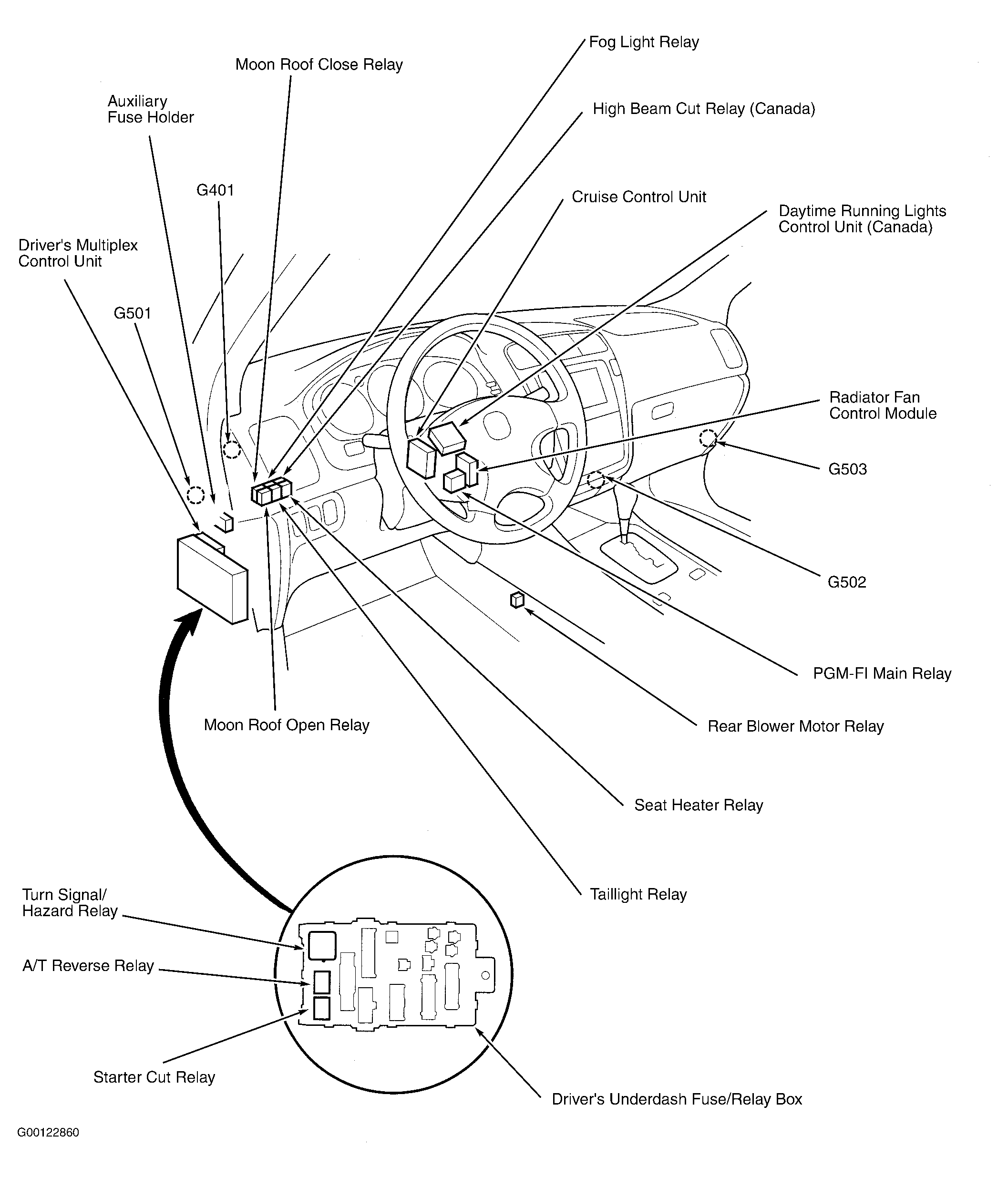

| Auxiliary Fuse Holder | Behind left end of dash. See Figure . |
| Driver's Underdash Fuse/Relay Box | Behind left end of dash. See Figure . |
| ELD Unit | In underhood fuse/relay box. |
| Multi-Relay Box | At right front of engine compartment. See Figure . |
| Passenger's Underdash Fuse/Relay Box | Behind right kick panel. |
| Underhood Fuse/Relay Box | At right side of engine compartment. See Figure . |
| Underhood Multifuse Box | Right rear of engine compartment. |
