Circuit Test

  1. Disconnect 8-pin harness connector from Ignition Control Module (ICM). ICM is located below throttle body. See Fig 1 .

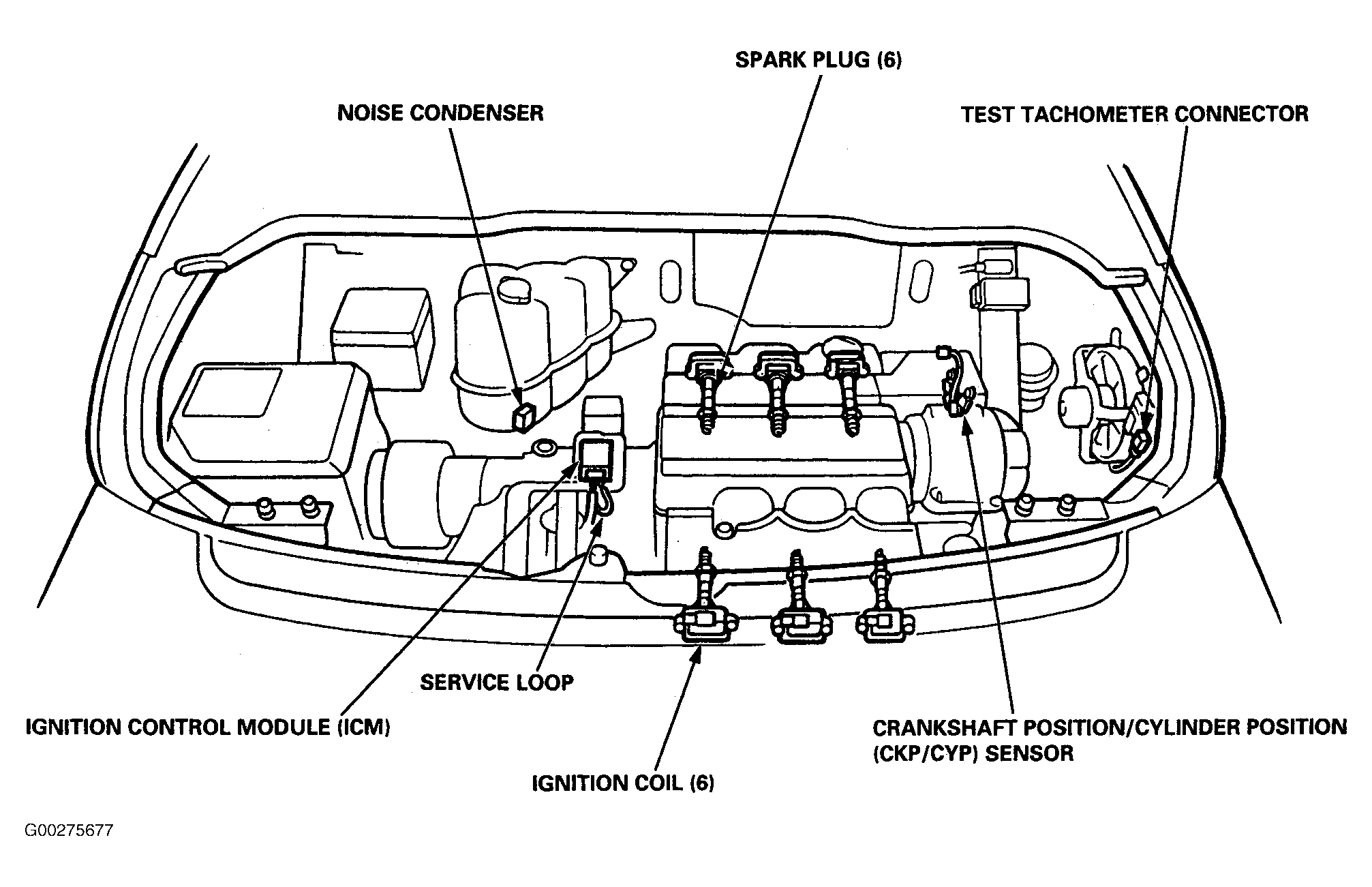

    Fig 1: Locating Ignition Components
    G00275677Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Inspect harness connectors. Repair as necessary.
  3. Check for continuity and voltage as indicated. See Fig 2 . If any problem is found, repair as necessary. If no problem is found, replace ICM.

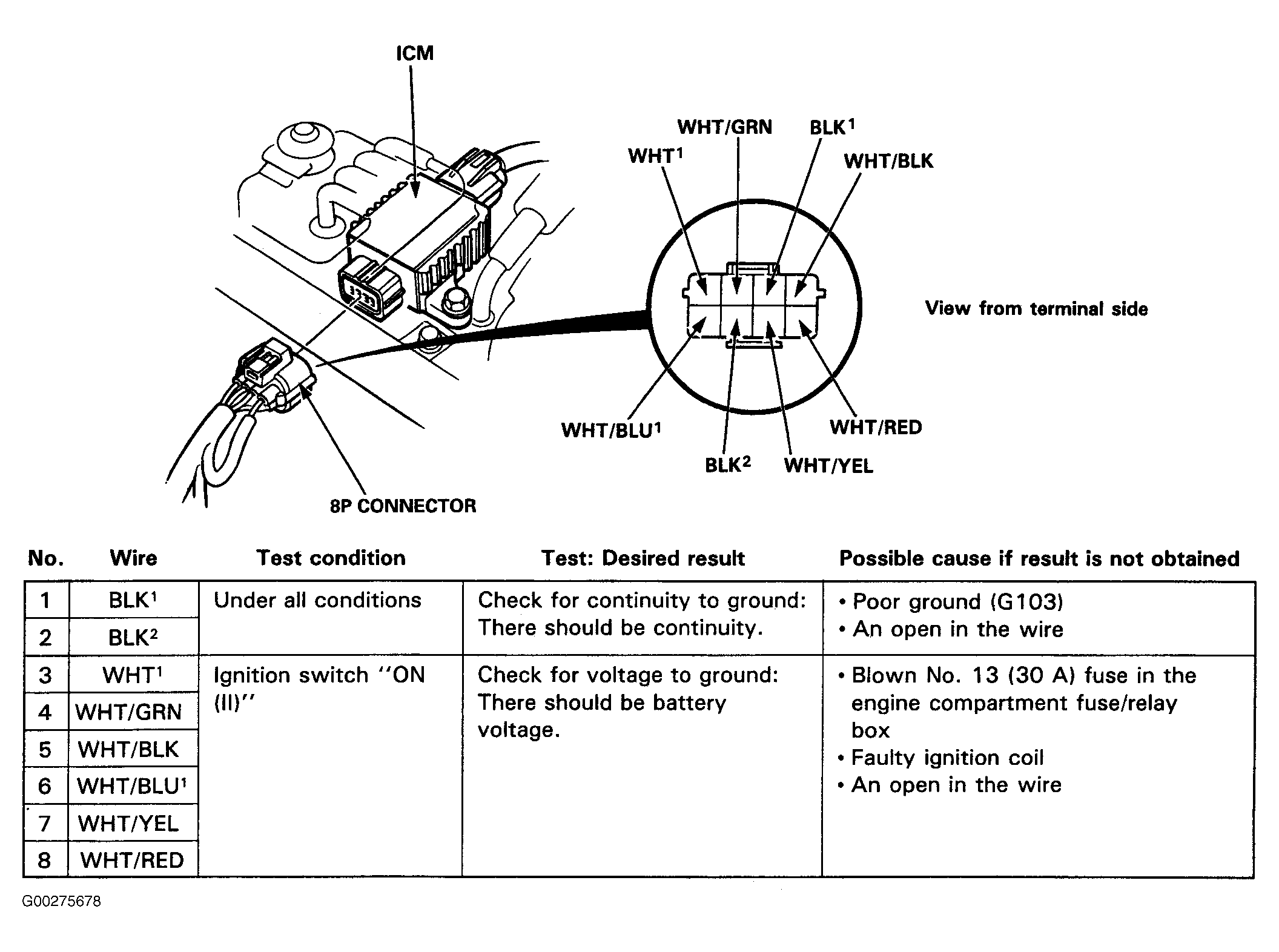

    Fig 2: Testing Ignition Control Module Inputs
    G00275678Courtesy of AMERICAN HONDA MOTOR CO., INC.
