Component Locations

For component locations, see Fig 1 -Fig 7 . For connector identification and locations, see Figure -Figure .

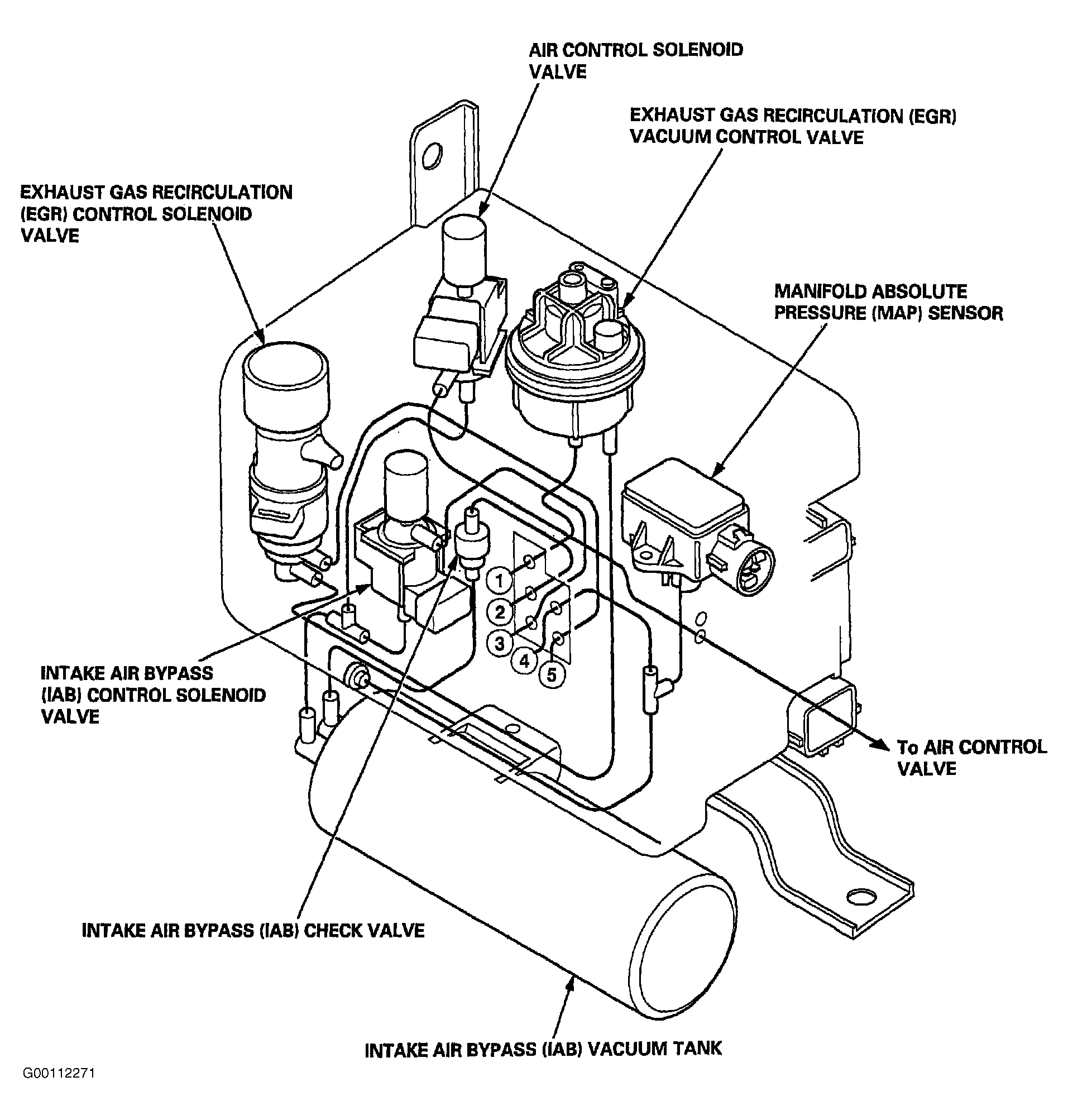

Fig 1: Locating PGM-FI Components (1 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

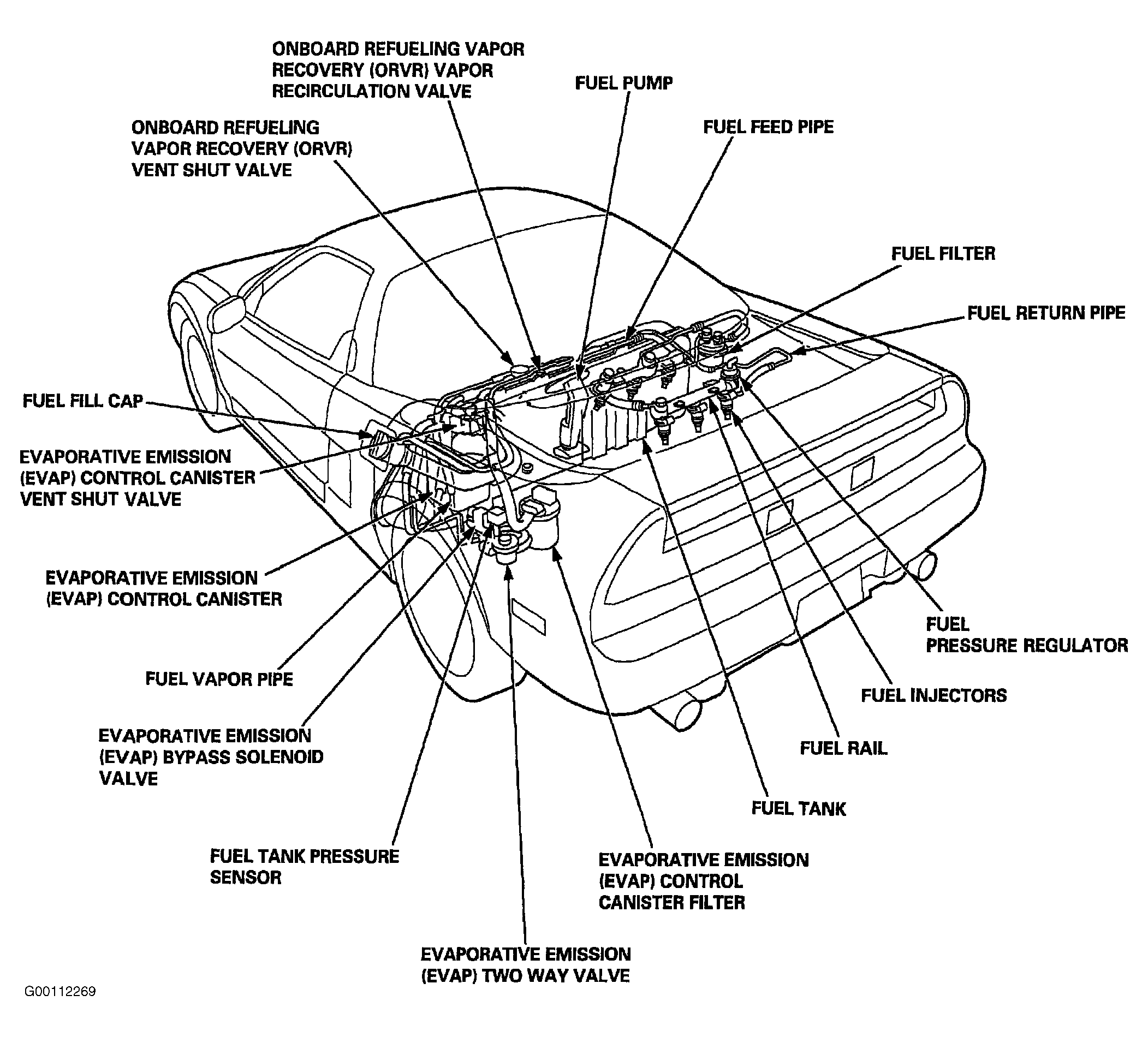

Fig 2: Locating PGM-FI Components (2 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

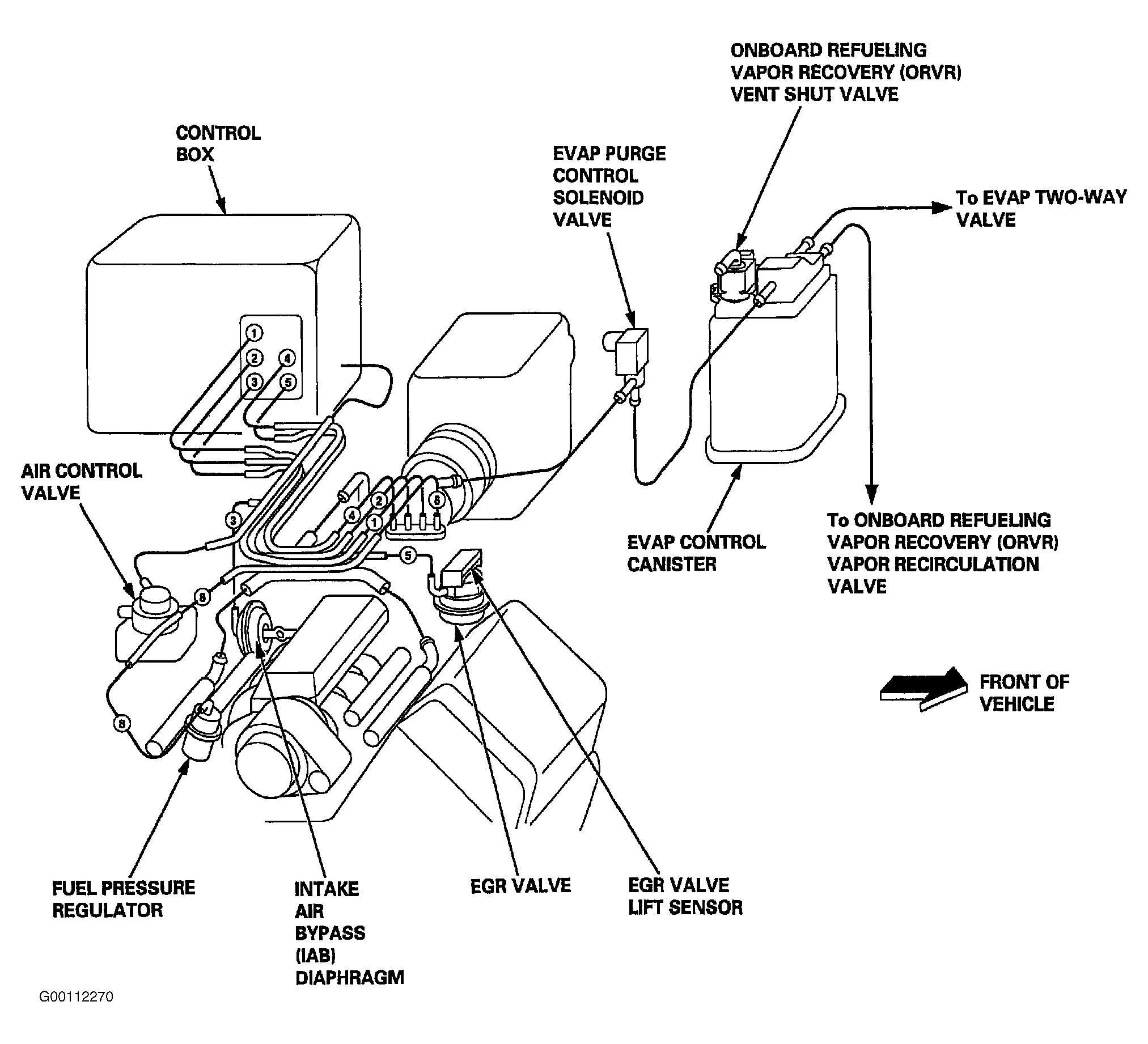

Fig 3: Locating PGM-FI Components (3 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

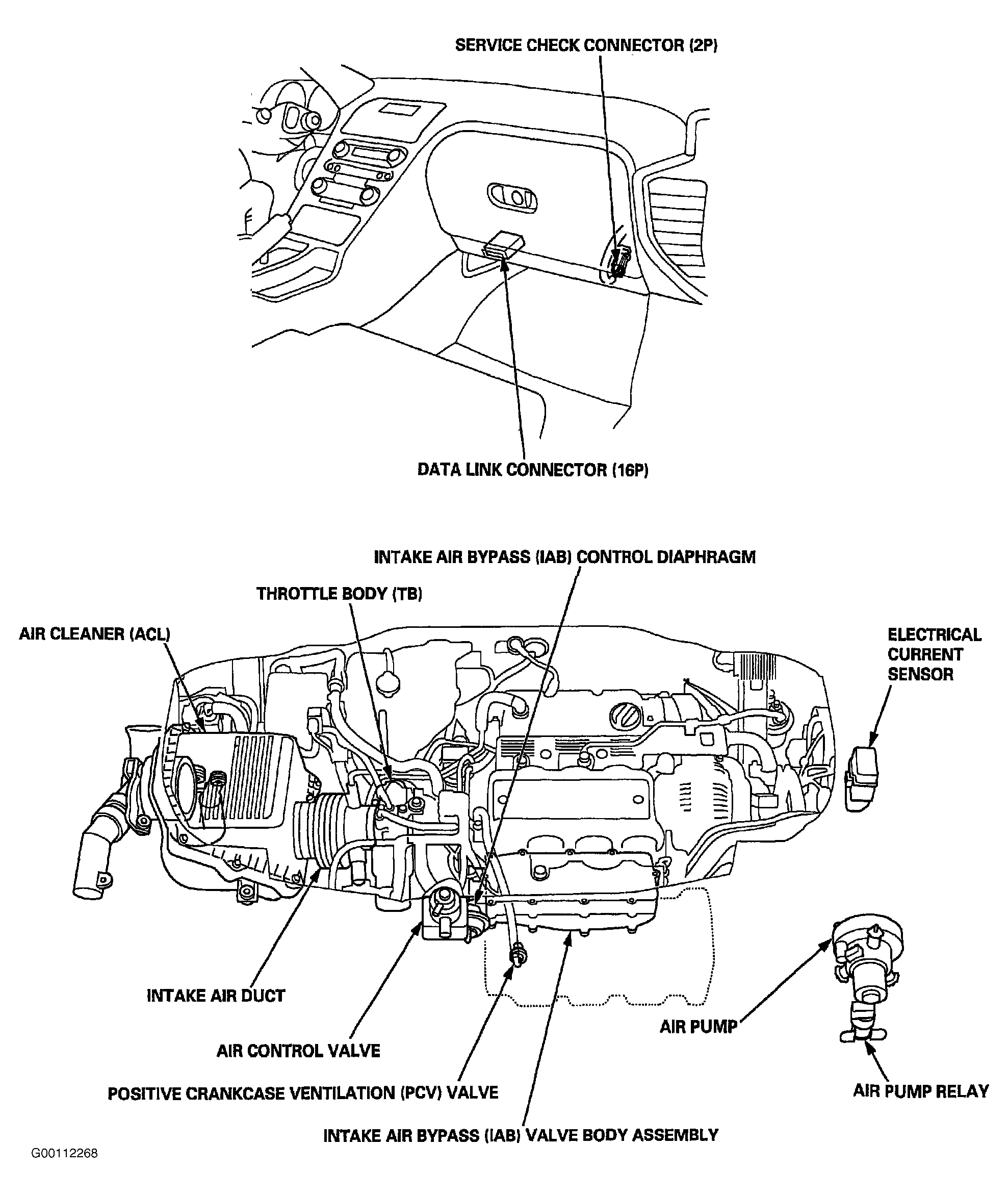

Fig 4: Locating PGM-FI Components (4 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

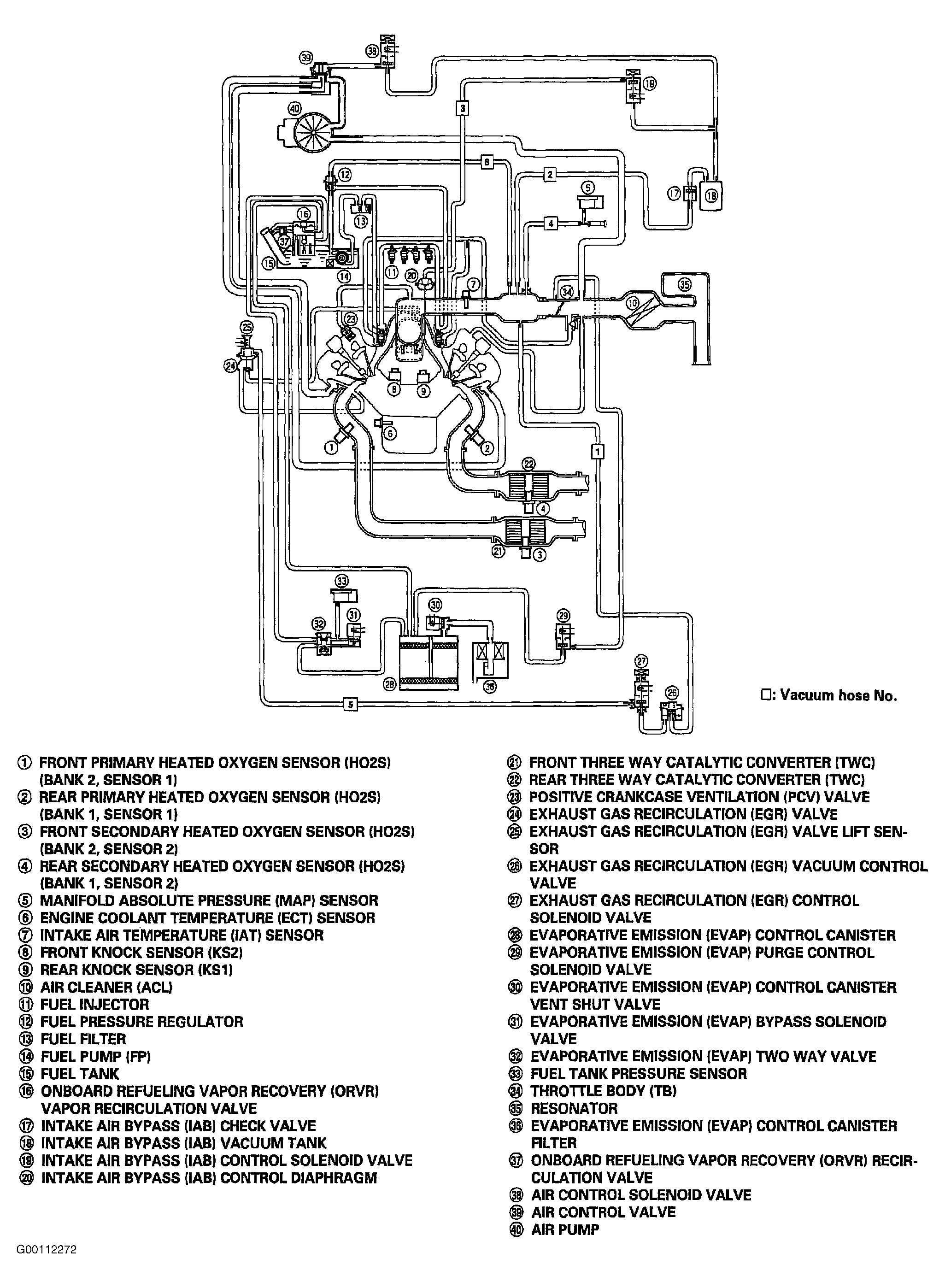

Fig 5: Locating PGM-FI Components (5 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Locating PGM-FI Components (6 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Locating PGM-FI Components (7 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
