Ignition Switch/Steering Lock: Test

SRS components are located in this area. Review the SRS component locations (see ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or servicing.

1. Remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION )
2. Disconnect the 5P connector from the under-dash fuse/relay box.

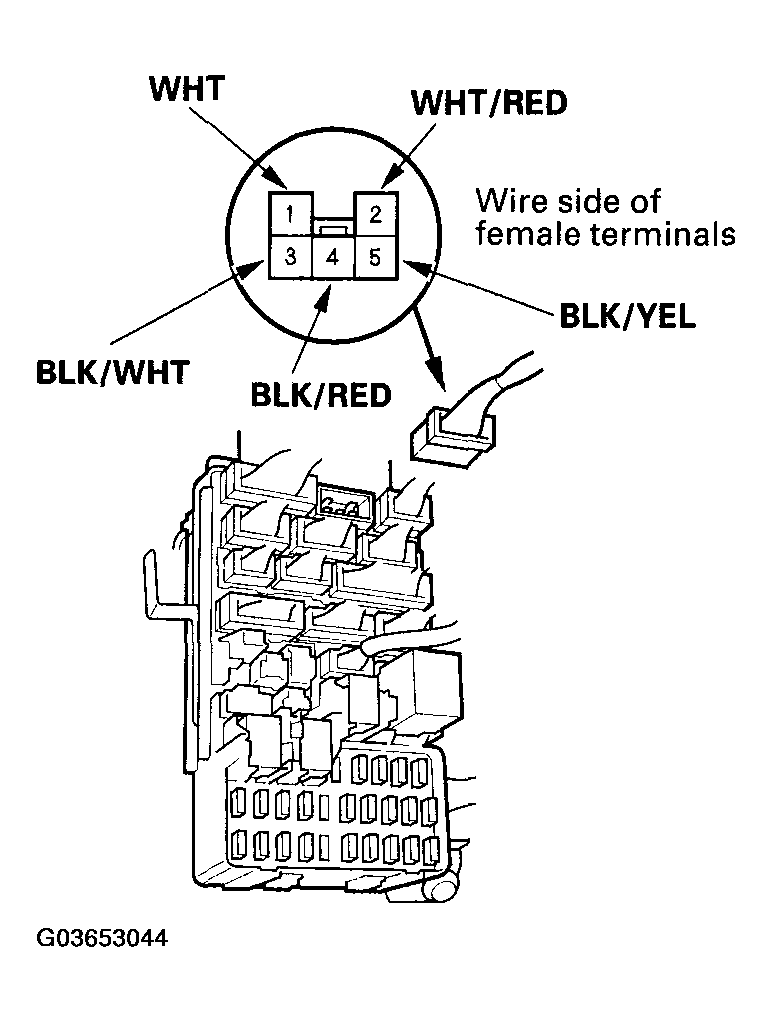

   Fig 1: Disconnecting 5P Connector From Under-Dash Fuse/Relay Box

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each switch position according to the table.

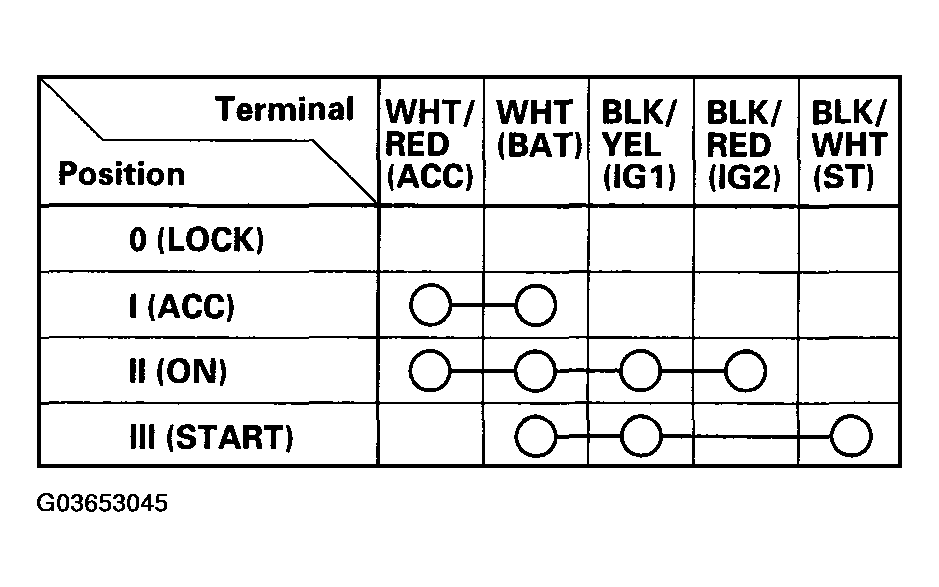

   Fig 2: Terminal And Position Reference Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. If the continuity checks do not agree with the table, replace the steering lock assembly (see STEERING LOCK REPLACEMENT ).
