CKP Sensor Replacement

  1. Disconnect the CKP sensor 3P connector.
  2. Remove the CKP sensor (A).

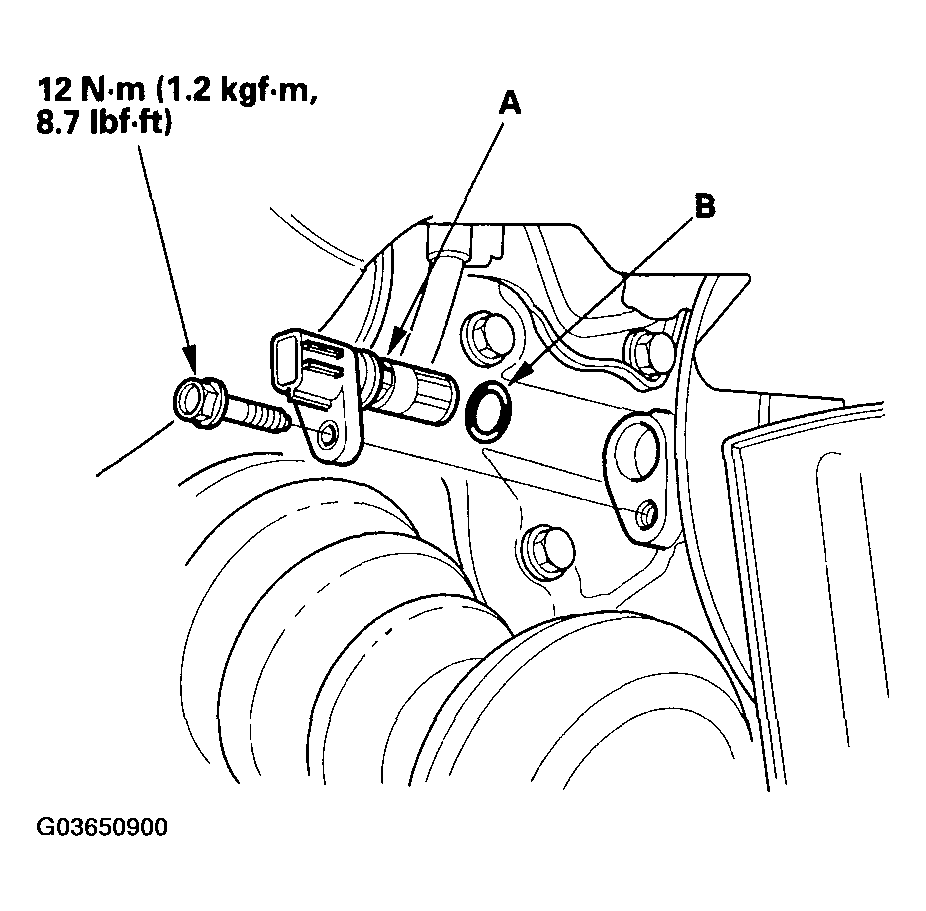

    Fig 1: Removing CKP Sensor And Torque Specifications
    G03650900Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal with a new O-ring (B).
  4. 2005-2006 models: Do the CKP pattern clear/pattern learn procedure (see ECM/PCM RESET (2005-2006 MODELS) ).
