Home >> Acura >> 2002 >> RSX Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> PGM-FI System >> CMP Sensor B Replacement

CMP Sensor B Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect the CMP sensor B 3P connector.
  3. Remove CMP sensor B (A) from the exhaust camshaft side of the cylinder head.

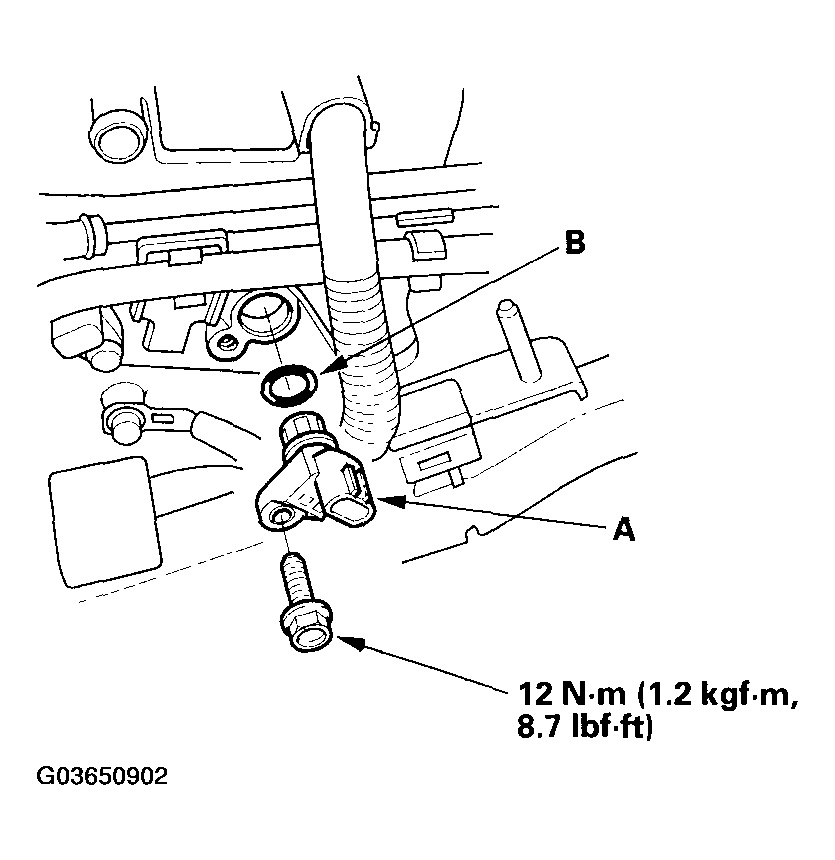

    Fig 1: Removing CMP Sensor B From Exhaust Camshaft Side Of Cylinder Head And Torque Specifications
    G03650902Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the sensor in the reverse order of removal with a new O-ring (B).
