Home >> Acura >> 2002 >> RSX Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> PGM-FI System >> IAT Sensor Replacement

IAT Sensor Replacement

  1. Disconnect the IAT sensor 2P connector.
  2. Remove the clip (A) and the IAT sensor (B).

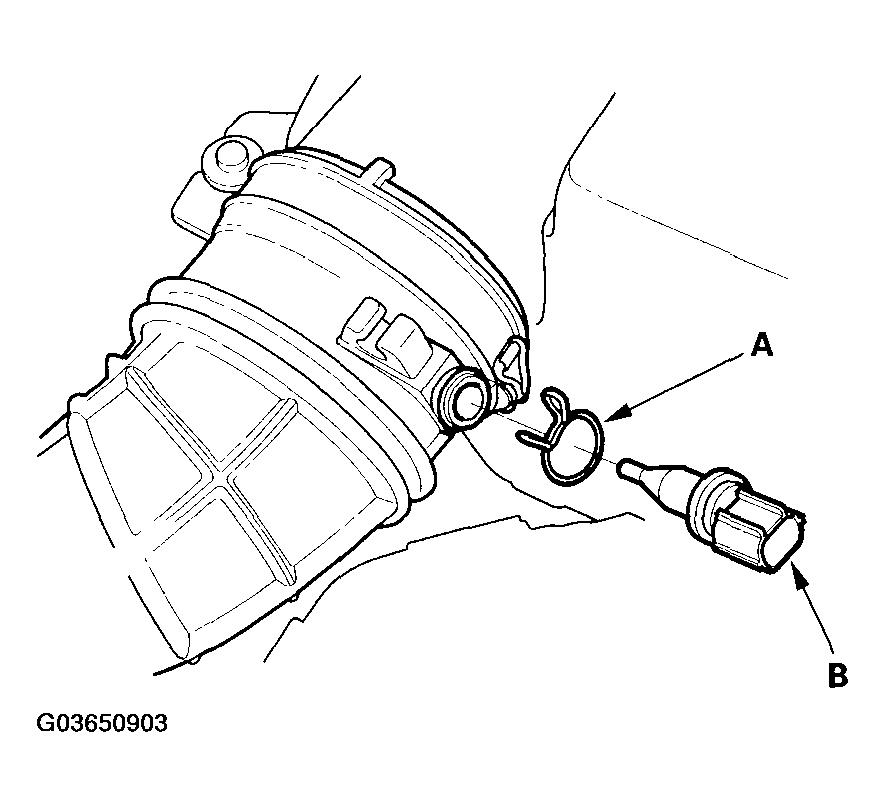

    Fig 1: Removing IAT Sensor
    G03650903Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal.
