K20A3 engine

  1. Remove the intake manifold (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Disconnect the knock sensor 1P connector.
  3. Remove the knock sensor (A).

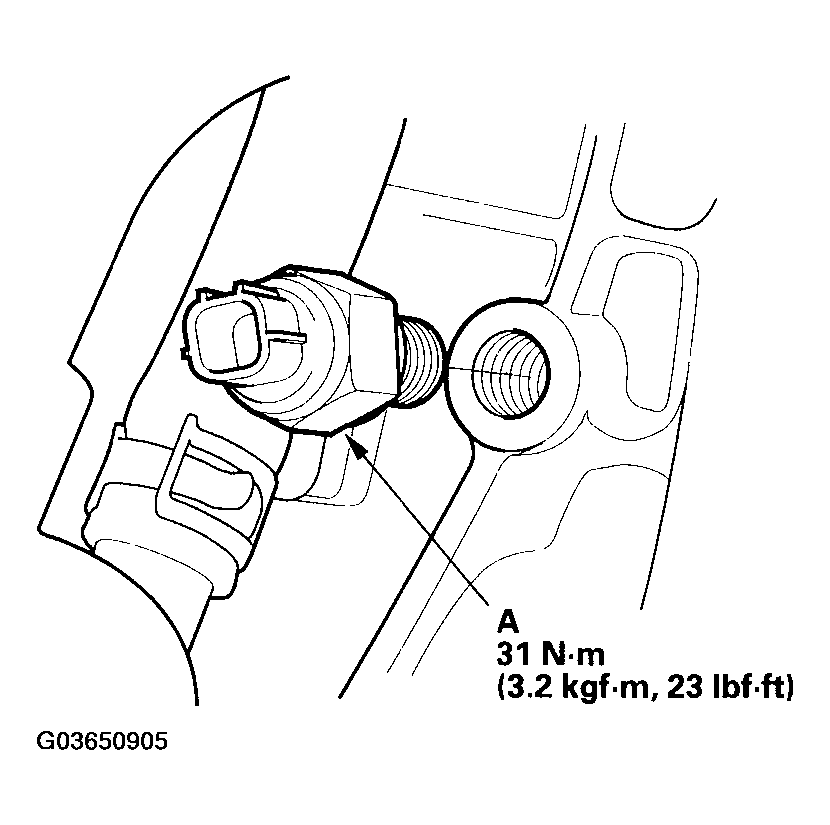

    Fig 1: Removing Knock Sensor And Torque Specifications
    G03650905Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the sensor in the reverse order of removal.
